Power Seat (Driver's Seat w/ Seat Position Memory): Notes

WARNING: This page is about a different car, the 2010 Lexus IS 350 and 2010 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

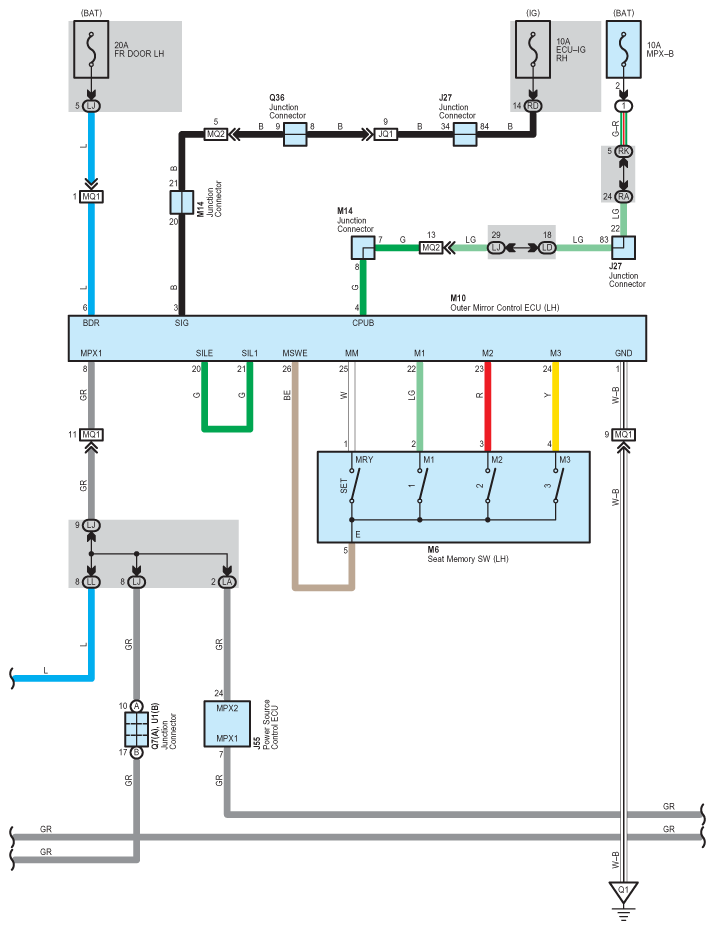

Fig 1: Power Seat (Driver's Seat W/ Seat Position Memory) - Circuit Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

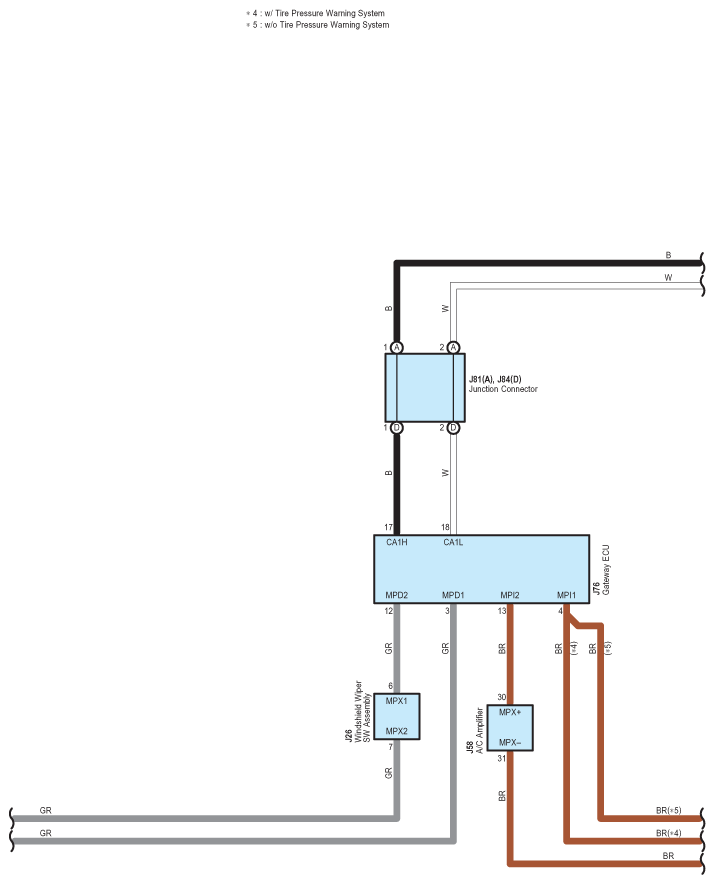

Fig 2: Power Seat (Driver's Seat W/ Seat Position Memory) - Circuit Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

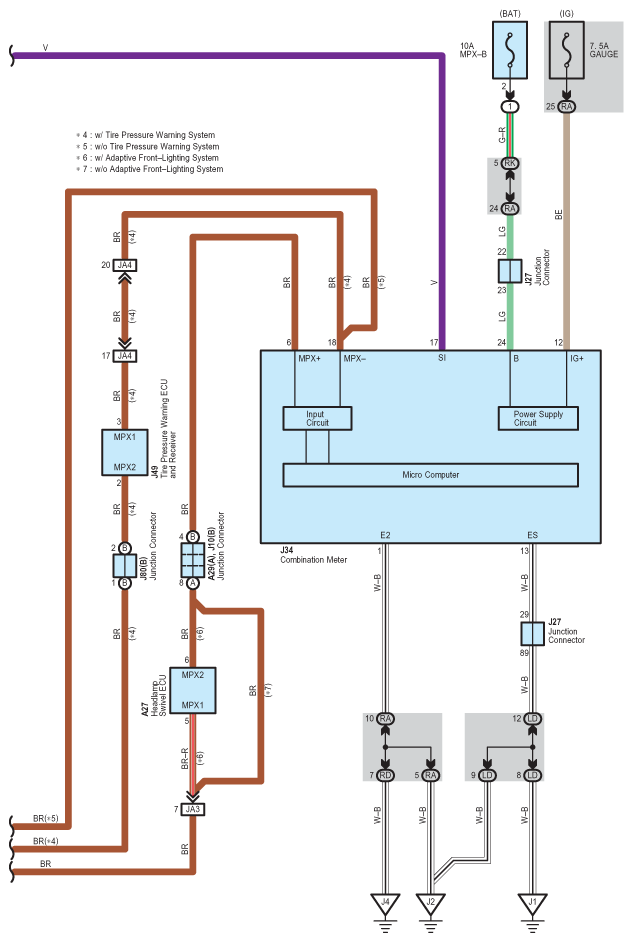

Fig 3: Power Seat (Driver's Seat W/ Seat Position Memory) - Circuit Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

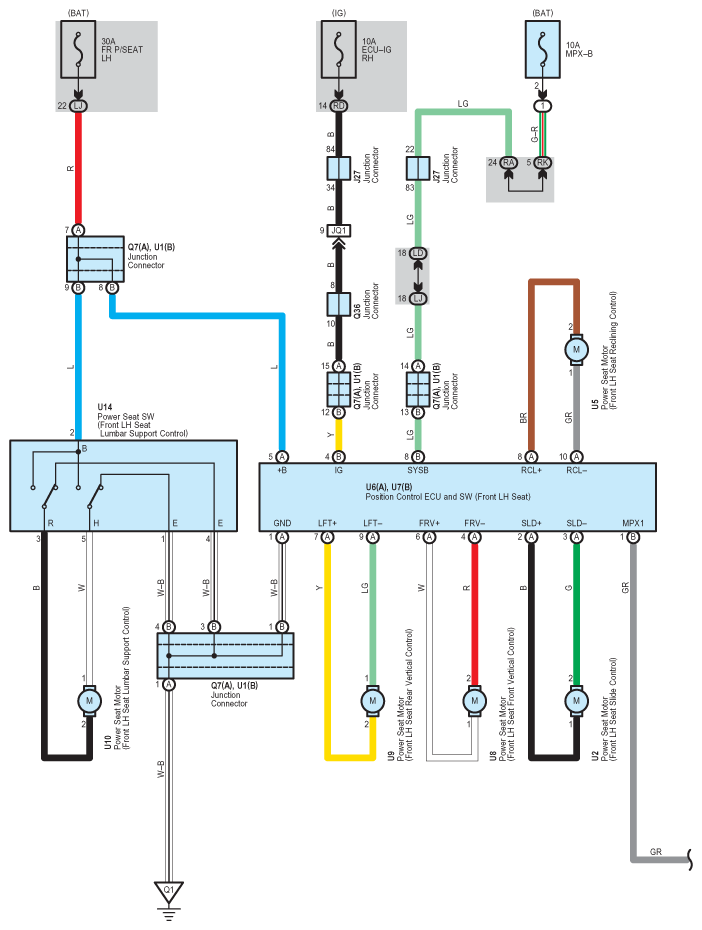

Fig 4: Power Seat (Driver's Seat W/ Seat Position Memory) - Circuit Diagram (4 Of 6)

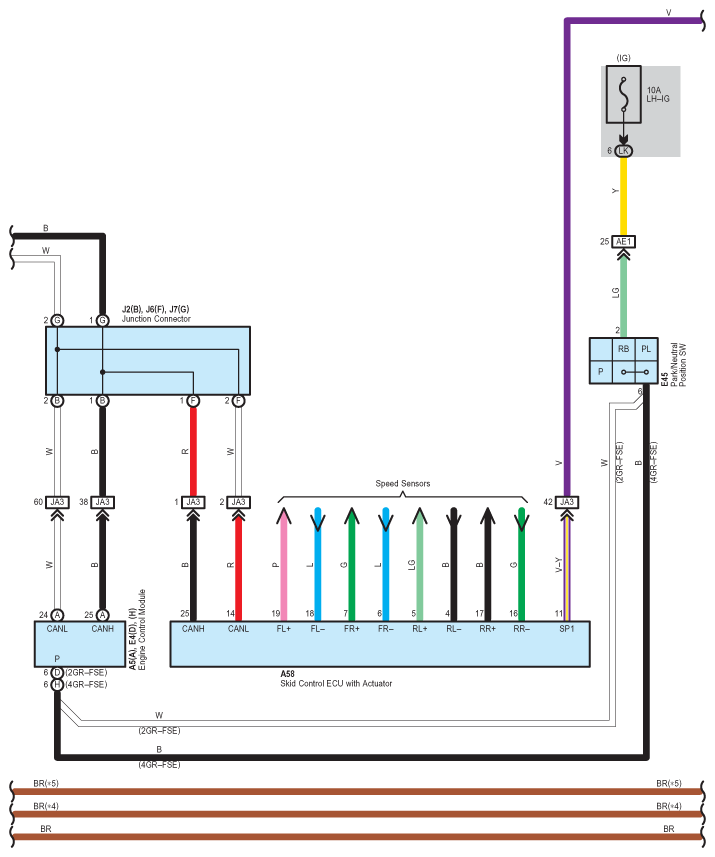

Fig 5: Power Seat (Driver's Seat W/ Seat Position Memory) - Circuit Diagram (5 Of 6)

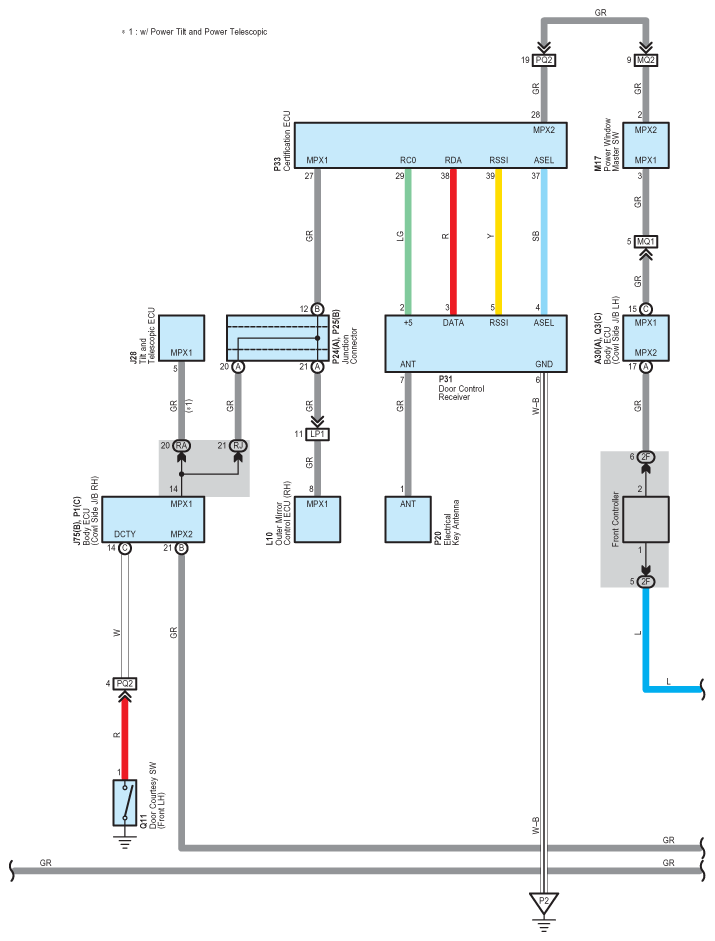

Fig 6: Power Seat (Driver's Seat W/ Seat Position Memory) - Circuit Diagram (6 Of 6)
