Cruise Control Main Switch: Inspection: Inspection

  1. INSPECT CRUISE CONTROL MAIN SWITCH
    1. Measure the resistance according to the value(s) in the table below.

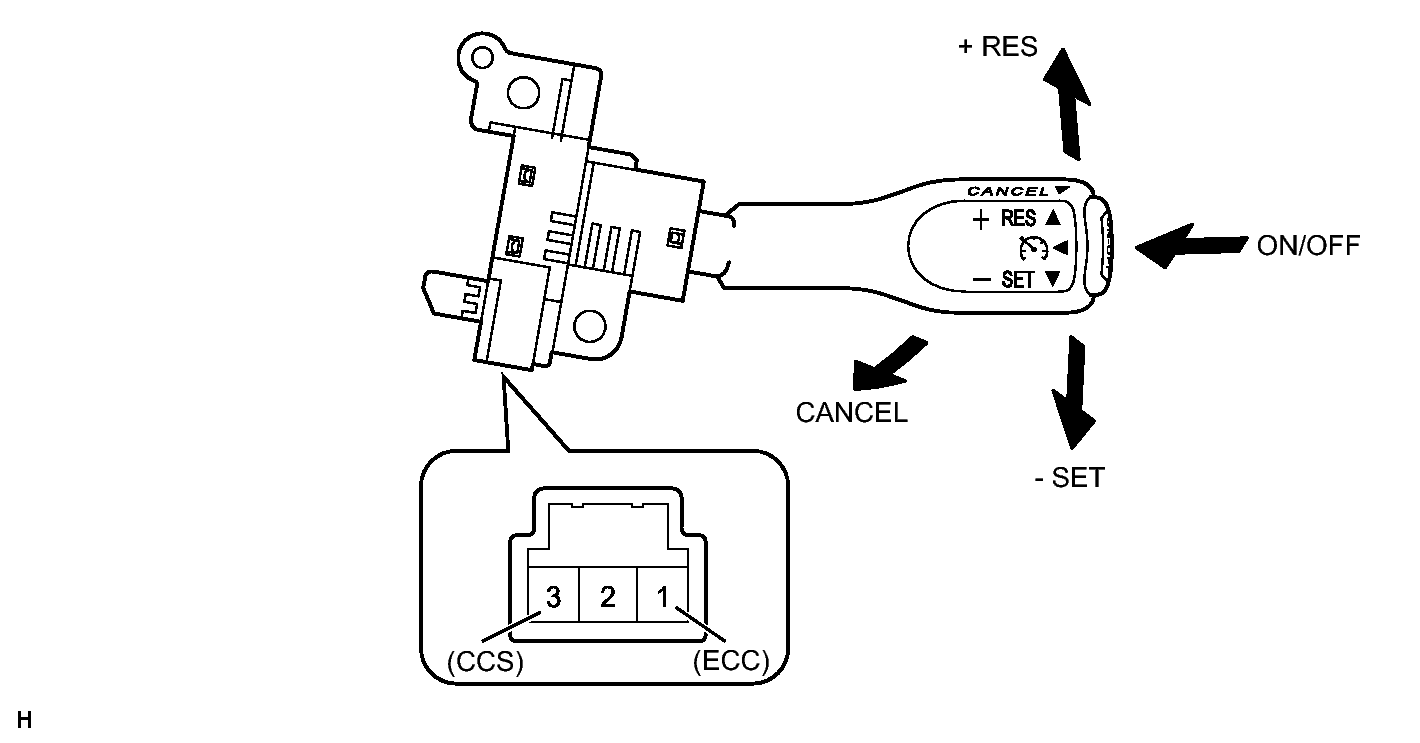

      Fig 1: Inspecting Cruise Control Main Switch Operation
      GTY349584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      1 (ECC) - 3 (CCS) Main Switch off 1 MΩ or higher
      Main Switch on Below 2.5 Ω
      + RES 235 to 245 Ω
      - SET 617 to 643 Ω
      CANCEL 1509 to 1571 Ω
