PCV Valve: Installation: Installation

WARNING: This page is about a different car, the 2011 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL VENTILATION VALVE
1. Install the ventilation valve.

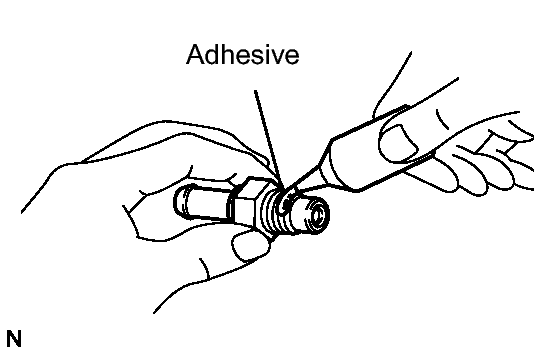

  Fig 1: Applying Adhesive On Threads Of Ventilation Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Apply adhesive to 2 or 3 threads.
    Adhesive

    Toyota genuine adhesive 1324, three bond 1324 or equivalent
  2. Install the ventilation valve.
    Torque: 27 N.m (275 kgf cm, 20 ft. lbf)
CONNECT VENTILATION HOSE

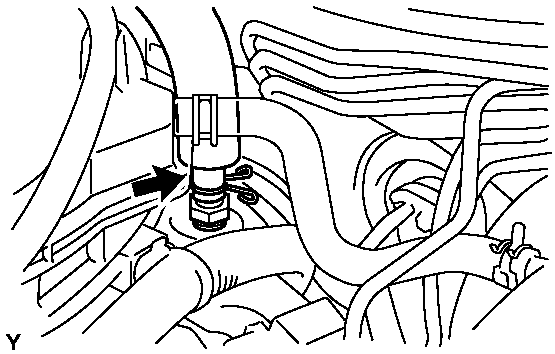

Fig 2: Identifying Ventilation Hose
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Connect the ventilation hose to the ventilation valve.
INSTALL V-BANK COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 114
