Terminals Of Ecu

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTRUMENT PANEL JUNCTION BLOCK (MULTIPLEX NETWORK BODY ECU)

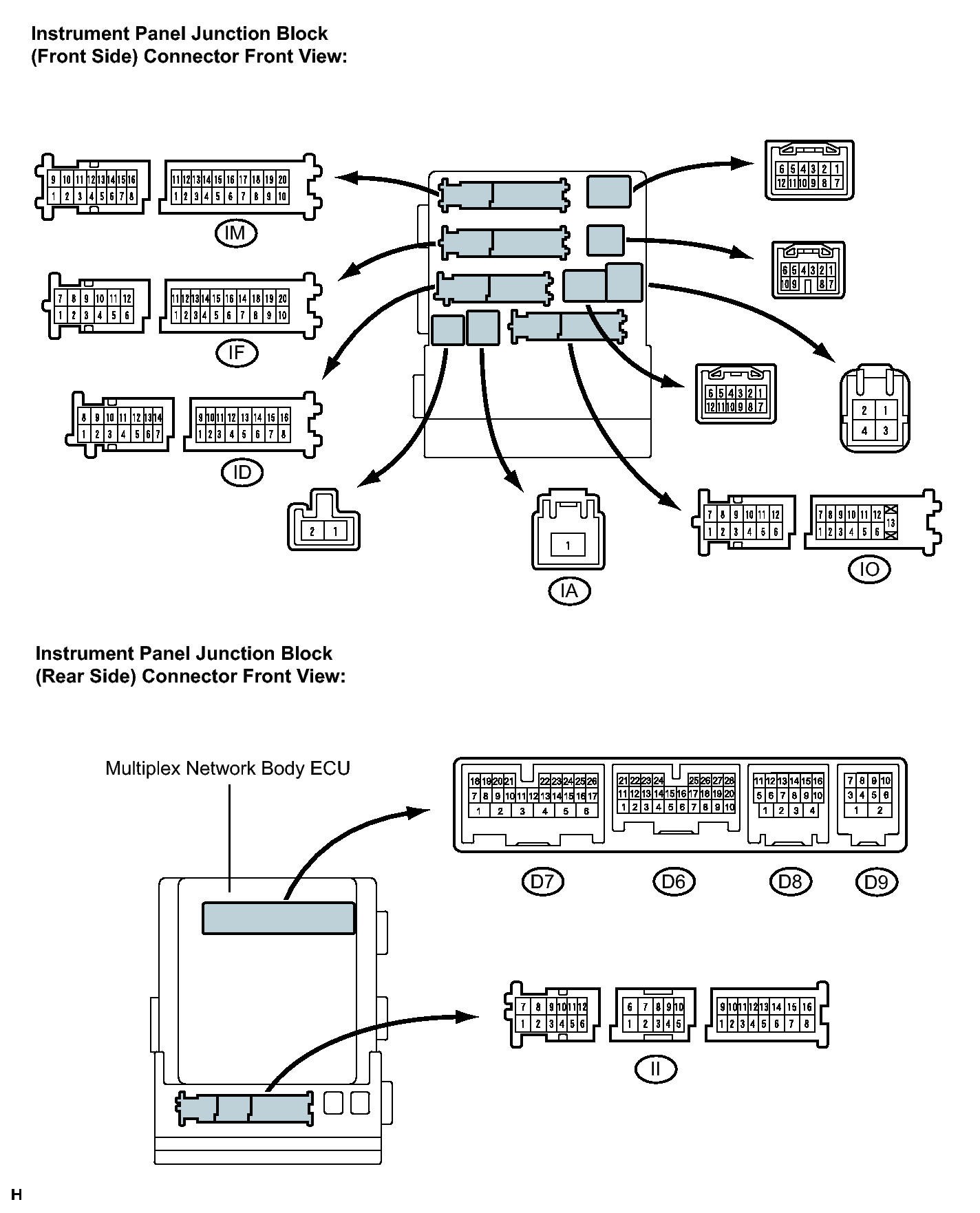

    Fig 1: Identifying Instrument Panel Junction Block (Multiplex Network Body ECU) Connector Terminal Identification
    GTY206673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the multiplex network body ECU connector and instrument panel J/B connector.
    2. Check the voltage and resistance of each terminal of the wire harness side connector.

      Standard

      Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
      BATB (IA-1) - Body ground B - Body ground +B (power battery system) power supply Always 10 to 14 V
      BECU (ID-10) - Body ground BE - Body ground +B power supply Always 10 to 14 V
      ALTB (ID-16) - Body ground G - Body ground +B (power generator system) power supply Always 10 to 14 V
      GND1 (IF-10) - Body ground W-B - Body ground Ground Always Below 1 Ω
      ACC (IA-1) - Body ground B - Body ground Ignition power supply (ACC signal) Ignition switch off → on (ACC) Below 1 V → 10 to 14 V
      IG (IA-1) - Body ground B - Body ground Ignition power supply (IG signal) Ignition switch off → on (IG) Below 1 V → 10 to 14 V
      GND2 (IM-9) - Body ground W - Body ground Ground Always Below 1 Ω
      LCTY (IO-7) - Body ground B - Body ground Rear door (LH) courtesy light switch signal Rear door (LH) is open → closed Below 1 Ω → 10 kΩ or higher
      PCTY (D6-23) - Body ground L - Body ground Passenger side door courtesy light switch signal Passenger side door is open → closed Below 1 Ω → 10 kΩ or higher
      LGCY (D6-25) - Body ground V - Body ground Luggage compartment light (Luggage compartment door courtesy light switch) signal Luggage compartment light is ON → OFF (Luggage compartment door is open (unlocked) → closed (locked)) Below 1 Ω → 10 kΩ or higher
      KSW* (D7-21) - Body ground BR - Body ground Unlock warning switch signal Ignition key is inserted → not inserted Below 1 Ω → 10 kΩ or higher
      DCTY (D8-14) - Body ground G - Body ground Driver side door courtesy light switch signal Driver side door is open → closed Below 1 Ω → 10 kΩ or higher
      RCTY (D8-16) - Body ground GR - Body ground Rear door (RH) courtesy light switch signal Rear door (RH) is open → closed Below 1 Ω → 10 kΩ or higher

      HINT:

      *: without Smart Key System

      If the result is not as specified, there may be a malfunction on the wire harness side.

    3. Reconnect the multiplex network body ECU connector and instrument panel J/B connector.
    4. Check the voltage of each terminal of the ECU side connector.

      Voltage

      Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
      TR+ (D7-1) - Body ground L - Body ground Luggage compartment door opener motor signal Luggage compartment door is closed (locked) → open (unlocked) Below 1 V → 10 to 14 V (*1)
      HAZ (D7-2) - Body ground P - Body ground Turn signal flasher relay signal Any transmitter switch is pressed → not pressed Below 1 V → 10 to 14 V (*2)

      If the result is not as specified, the multiplex network body ECU may have a malfunction.

      (*1): When operating the motor.

      (*2): When operating the answer back function.
