Engine Room Relay Block No. 1 And Engine Room Junction Block No. 1
WARNING: This page is about a different car, the 2010 Lexus IS 350 and 2010 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

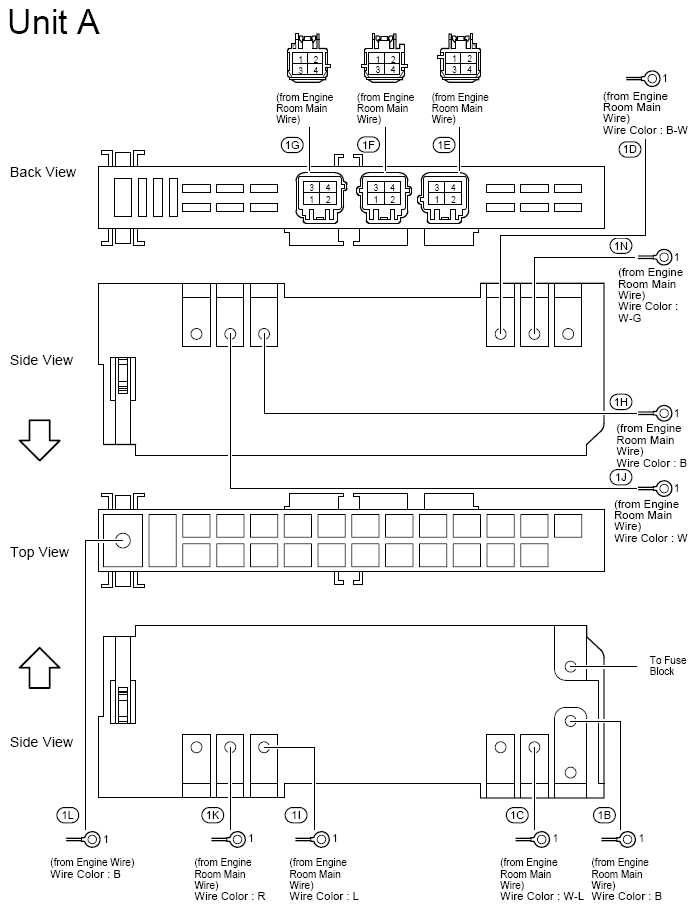

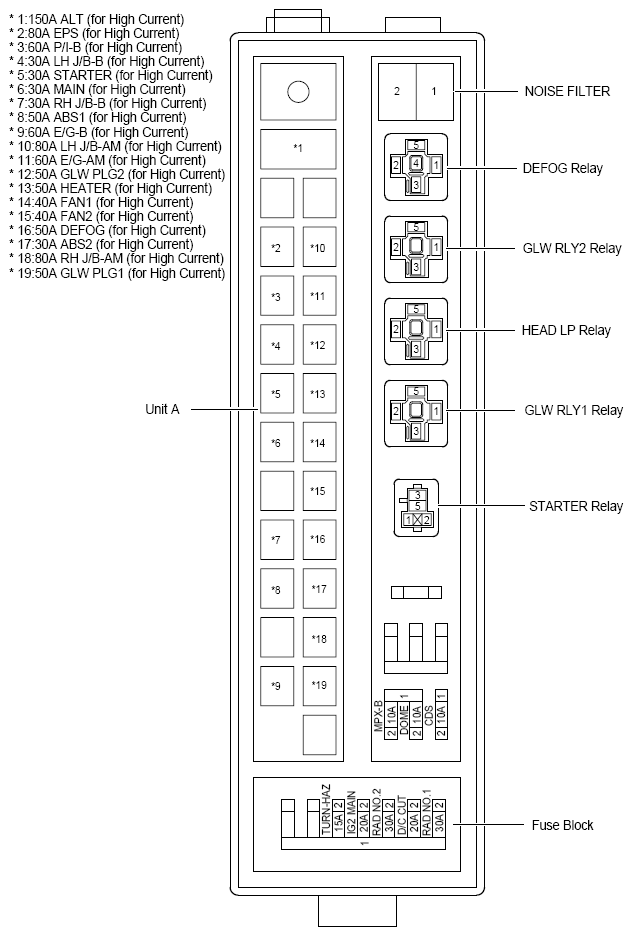

Near the Battery (See Figure)
ENGINE ROOM R/B AND J/B NO. 1 RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Defog Relay |
| GLW RLY2 Relay |
| Head LP Relay |
| GLW RLY1 Relay |
| Starter Relay |
Engine Room R/B And J/B No. 1 Fuse Identification Legend
| Fuse | System | |
|---|---|---|
| 10A | DOME | 4WD |
| Adaptive Front-Lighting System | ||
| Audio System (w/ LEXUS Navigation System), LEXUS Navigation System and Parking Assist (Rear View Monitor) | ||
| Audio System (w/o LEXUS Navigation System) | ||
| Combination Meter | ||
| Cruise Control (2GR-FSE) | ||
| Cruise Control (4GR-FSE) | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control (2GR-FSE) | ||
| Dynamic Radar Cruise Control (4GR-FSE) | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FSE) | ||
| Electronically Controlled Transmission and A/T Indicator (4GR-FSE) | ||
| Engine Control (2GR-FSE) | ||
| Engine Control (4GR-FSE) | ||
| Front Fog Light | ||
| Garage Door Opener | ||
| Headlight | ||
| Interior Light | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Pre-Collision System | ||
| Sliding Roof | ||
| Smart Access System with Push-Button Start | ||
| Taillight | ||
| Theft Deterrent | ||
| Tire Pressure Warning System | ||
| Vehicle Dynamics Integrated Management | ||
| 10A | MPX-B | 4WD |
| Adaptive Front-Lighting System | ||
| Air Conditioning | ||
| Audio System (w/ LEXUS Navigation System), LEXUS Navigation System and Parking Assist (Rear View Monitor) | ||
| Audio System (w/o LEXUS Navigation System) | ||
| Automatic Light Control | ||
| Charging | ||
| Clock | ||
| Combination Meter | ||
| Cruise Control (2GR-FSE) | ||
| Cruise Control (4GR-FSE) | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control (2GR-FSE) | ||
| Dynamic Radar Cruise Control (4GR-FSE) | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FSE) | ||
| Electronically Controlled Transmission and A/T Indicator (4GR-FSE) | ||
| Engine Control (2GR-FSE) | ||
| Engine Control (4GR-FSE) | ||
| EPS | ||
| Front Fog Light | ||
| Front Wiper and Washer | ||
| Headlight | ||
| Headlight Cleaner | ||
| Illumination | ||
| Interior Light | ||
| Light Auto Turn Off System | ||
| Luggage Compartment Door Opener | ||
| Multiplex Communication System (AVC-LAN) | ||
| Multiplex Communication System (BEAN) | ||
| Multiplex Communication System (CAN) | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Power Seat (Driver's Seat w/ Seat Position Memory) | ||
| Power Seat (Front Passenger's Seat w/ Seat Position Memory) | ||
| Power Tilt and Power Telescopic | ||
| Power Window | ||
| Pre-Collision System | ||
| Rear Sunshade | ||
| Remote Control Mirror (w/ Seat Position Memory) | ||
| Seat Belt Warning | ||
| Sliding Roof | ||
| Smart Access System with Push-Button Start | ||
| SRS | ||
| Taillight | ||
| Theft Deterrent | ||
| Tire Pressure Warning System | ||
| Turn Signal and Hazard Warning Light | ||
| Vehicle Dynamics Integrated Management | ||
| 15A | TURN-HAZ | Turn Signal and Hazard Warning Light |
| 30A | ABS2 | Dynamic Radar Cruise Control (2GR-FSE) |
| Dynamic Radar Cruise Control (4GR-FSE) | ||
| Vehicle Dynamics Integrated Management | ||
| 30A | MAIN | Adaptive Front-Lighting System |
| Automatic Light Control | ||
| Headlight | ||
| Headlight Cleaner | ||
| Light Auto Turn Off System | ||
| Smart Access System with Push-Button Start | ||
| Theft Deterrent | ||
| 30A | RAD NO. 1 | Audio System (w/ LEXUS Navigation System), LEXUS Navigation System and Parking Assist (Rear View Monitor) |
| Audio System (w/o LEXUS Navigation System) | ||
| 30A | RAD NO. 2 | Audio System (w/ LEXUS Navigation System), LEXUS Navigation System and Parking Assist (Rear View Monitor) |
| Audio System (w/o LEXUS Navigation System) | ||
| 30A | STARTER | Smart Access System with Push-Button Start |
| 40A | FAN1 | Cooling Fan |
| 40A | FAN2 | Cooling Fan |
| 50A | ABS1 | Dynamic Radar Cruise Control (2GR-FSE) |
| Dynamic Radar Cruise Control (4GR-FSE) | ||
| Vehicle Dynamics Integrated Management | ||
| 50A | DEFOG | Mirror Heater and Rear Window Defogger |
| 50A | GLW PLG1 | Air Conditioning |
| 50A | GLW PLG2 | Air Conditioning |
| 50A | HEATER | Air Conditioning |
| 60A | E/G-B | Charging |
| 80A | EPS | EPS |
| 80A | LH J/B-AM | Automatic Light Control |
| Climate Control Seat and Seat Heater (w/ Climate Control Seat) | ||
| Illumination | ||
| Light Auto Turn Off System | ||
| Seat Heater (w/o Climate Control Seat) | ||
| Taillight | ||
| Theft Deterrent | ||
| 150A | ALT | Charging |
