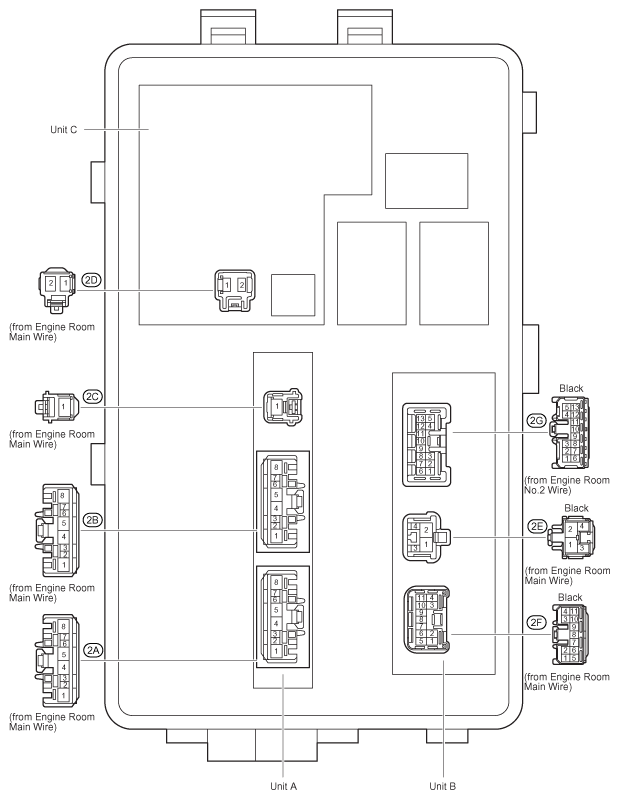

Engine Room Relay Block No. 2 And Engine Room Junction Block No. 2
WARNING: This page is about a different car, the 2010 Lexus IS 350 and 2010 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

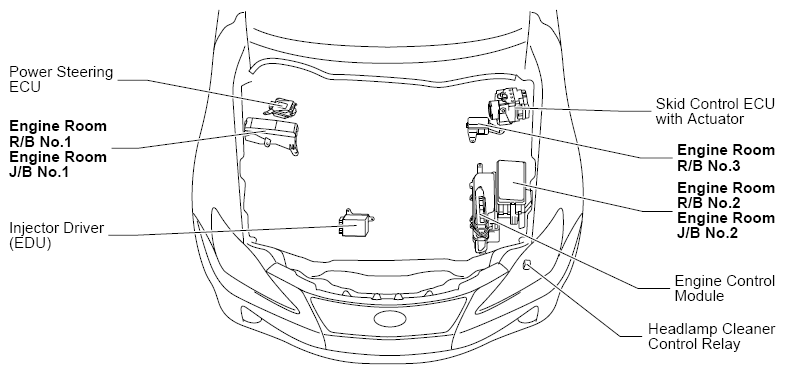

Engine Compartment Left (See Figure)

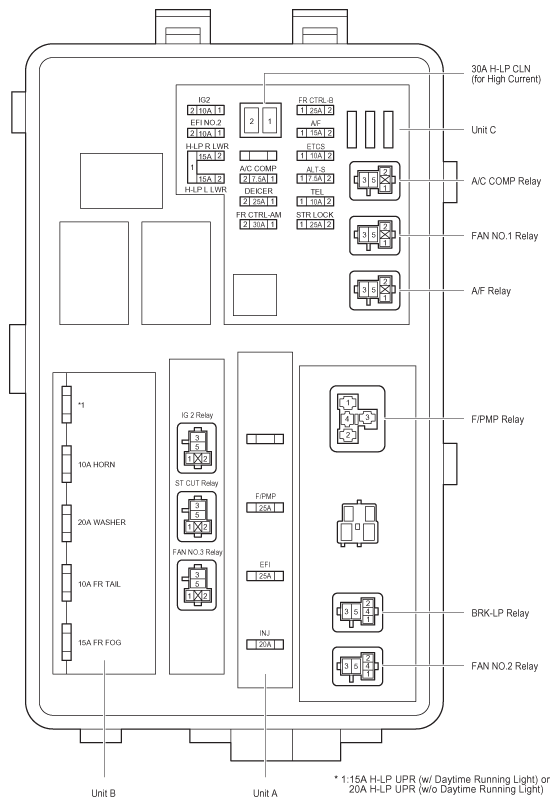

ENGINE ROOM R/B AND J/B NO. 2 RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| A/C COMP Relay |
| Fan No.1 Relay |
| A/F Relay |
| F/PMP Relay |
| BRK-LP Relay |
| Fan No.2 Relay |
| IG 2 Relay |
| ST CUT Relay |
| FAN NO. 3 Relay |
Engine Room R/B And J/B No. 2 Fuse Identification Legend
| Fuse | System | |
|---|---|---|
| 7.5A | A/C COMP | Air Conditioning |
| 7.5A | ALT-S | Charging |
| 10A | EFI NO. 2 | Electronically Controlled Transmission and A/T Indicator (2GR-FSE) |
| Electronically Controlled Transmission and A/T Indicator (4GR-FSE) | ||
| Engine Control (2GR-FSE) | ||
| Engine Control (4GR-FSE) | ||
| 10A | ETCS | Cruise Control (2GR-FSE) |
| Cruise Control (4GR-FSE) | ||
| Dynamic Radar Cruise Control (2GR-FSE) | ||
| Dynamic Radar Cruise Control (4GR-FSE) | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FSE) | ||
| Electronically Controlled Transmission and A/T Indicator (4GR-FSE) | ||
| Engine Control (2GR-FSE) | ||
| Engine Control (4GR-FSE) | ||
| 10A | FR TAIL | Automatic Light Control |
| Headlight | ||
| Light Auto Turn Off System | ||
| Taillight | ||
| Theft Deterrent | ||
| 10A | HORN | Horn |
| Smart Access System with Push-Button Start | ||
| Theft Deterrent | ||
| 10A | IG2 | Engine Control (2GR-FSE) |
| Engine Control (4GR-FSE) | ||
| Ignition (2GR-FSE) | ||
| Ignition (4GR-FSE) | ||
| 10A | TEL | LEXUS ENFORM or Safety Connect |
| 15A | A/F | Engine Control (2GR-FSE) |
| Engine Control (4GR-FSE) | ||
| 15A | FR FOG | Front Fog Light |
| 15A | H-LP L LWR | Headlight |
| 15A | H-LP R LWR | Headlight |
| 15A | H-LP UPR | Adaptive Front-Lighting System |
| Headlight | ||
| 20A | H-LP UPR | Adaptive Front-Lighting System |
| Headlight | ||
| 20A | INJ | Engine Control (2GR-FSE) |
| Engine Control (4GR-FSE) | ||
| 20A | WASHER | Front Wiper and Washer |
| Headlight Cleaner | ||
| 25A | DEICER | Front Window Deicer |
| 25A | EFI | Cruise Control (2GR-FSE) |
| Cruise Control (4GR-FSE) | ||
| 25A | EFI | Dynamic Radar Cruise Control (2GR-FSE) |
| Dynamic Radar Cruise Control (4GR-FSE) | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FSE) | ||
| Electronically Controlled Transmission and A/T Indicator (4GR-FSE) | ||
| Engine Control (2GR-FSE) | ||
| Engine Control (4GR-FSE) | ||
| 25A | F/PMP | Engine Control (2GR-FSE) |
| Engine Control (4GR-FSE) | ||
| 25A | STR LOCK | Smart Access System with Push-Button Start |
| 30A | H-LP CLN | Headlight Cleaner |
