Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch: Wiring Diagram

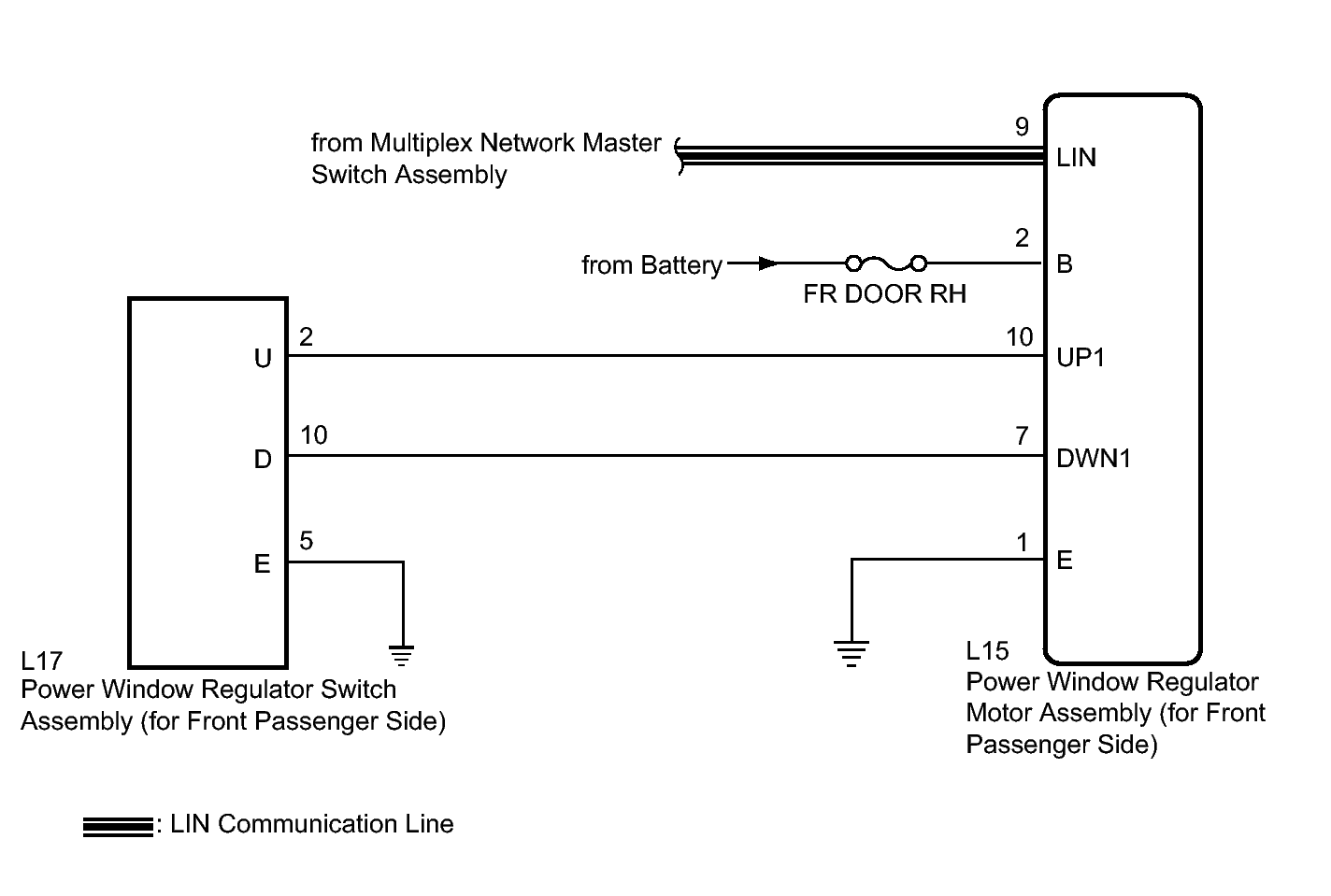

Fig 1: Front Passenger Side Power Window Regulator Motor & Front Passenger Side Power Window Regulator Switch - Wiring Diagram
GTY134277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
