Rear Power Window RH does not Operate with Rear Power Window Switch RH: Wiring Diagram

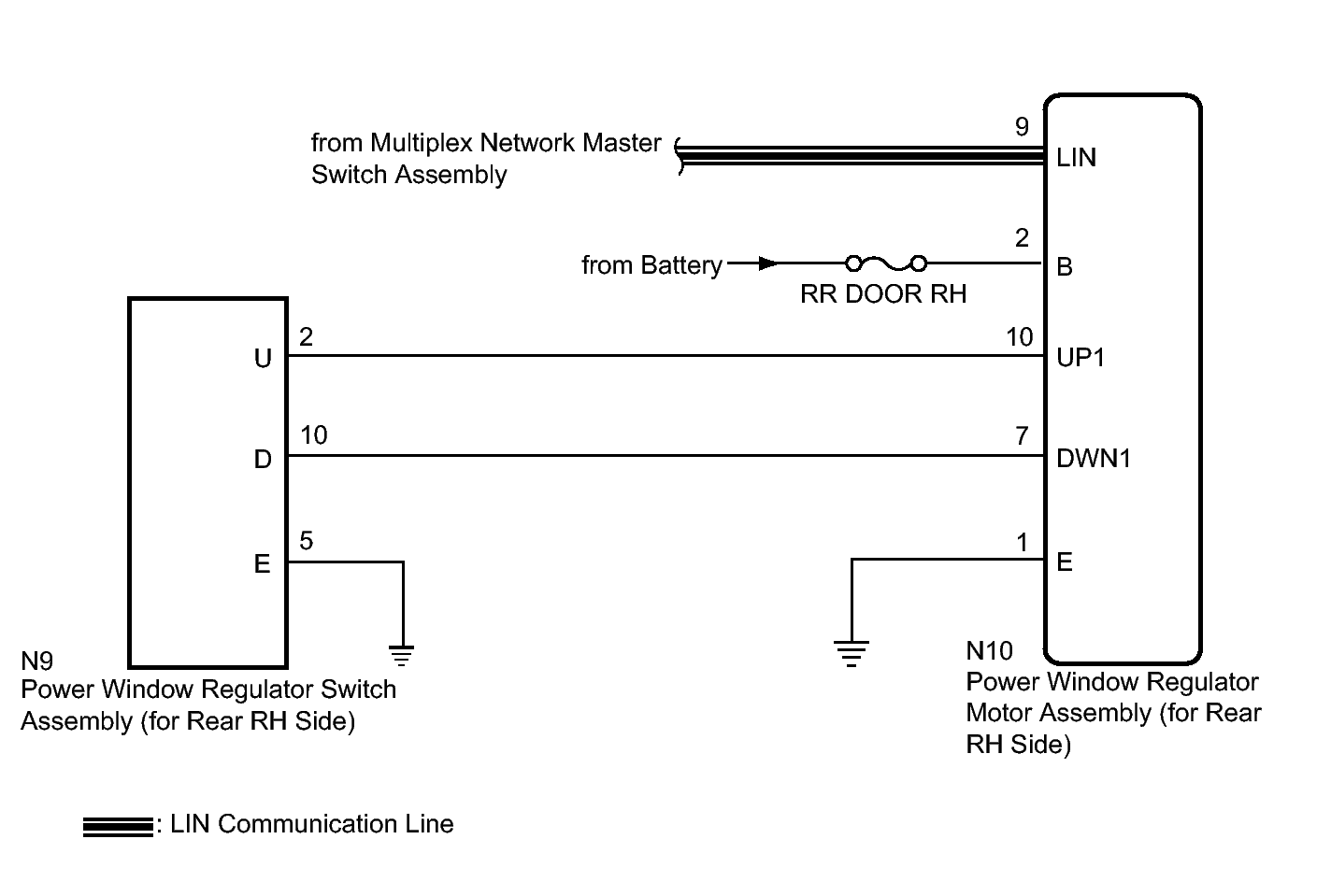

Fig 1: Rear RH Side Power Window Regulator Motor & Rear RH Side Power Window Regulator Switch -- Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
