ACIS Control Circuit: Wiring Diagram

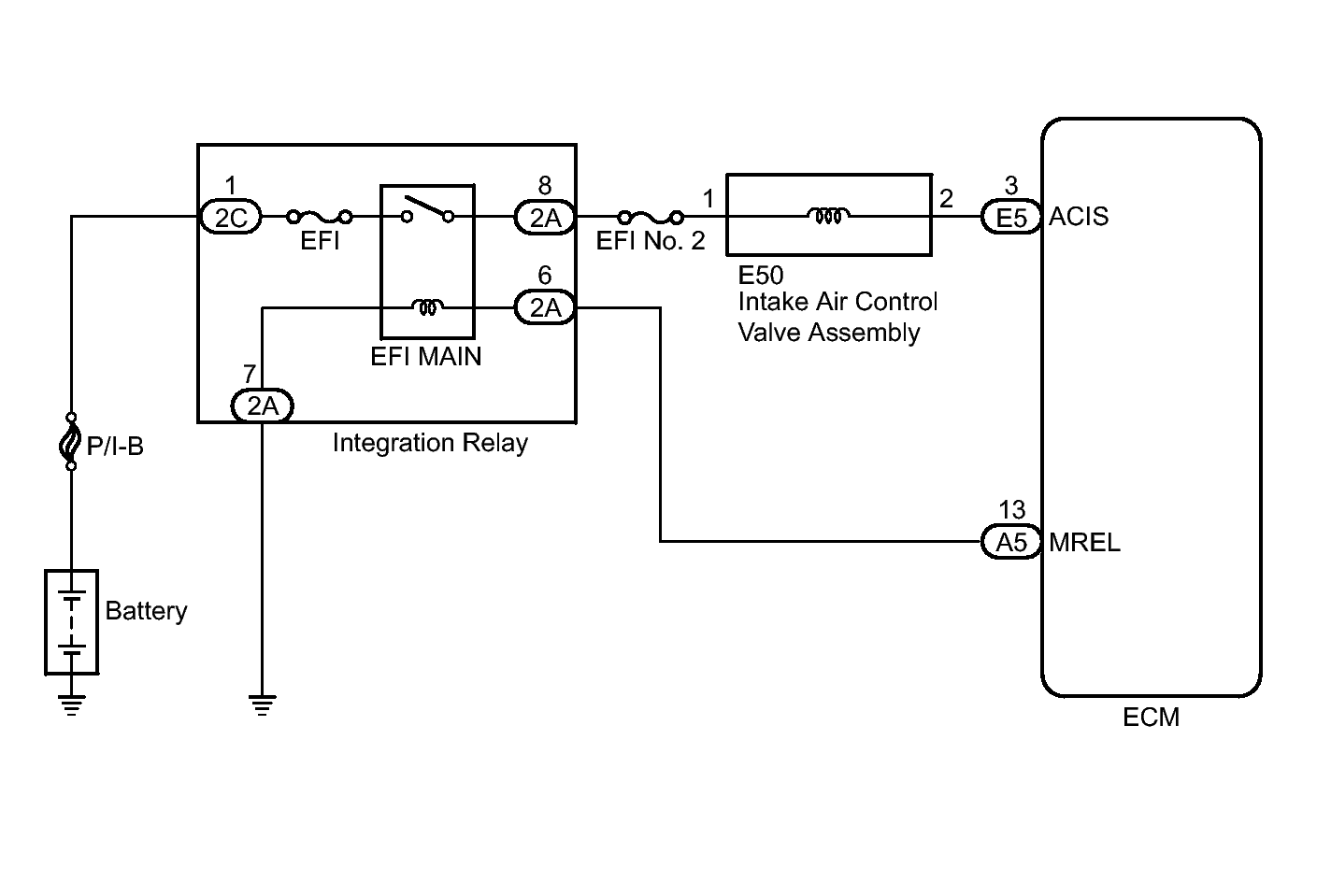

Fig 1: Identifying ACIS Control Circuit - Wiring Diagram
GTY273263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
