Cold Start Injector Circuit: Wiring Diagram

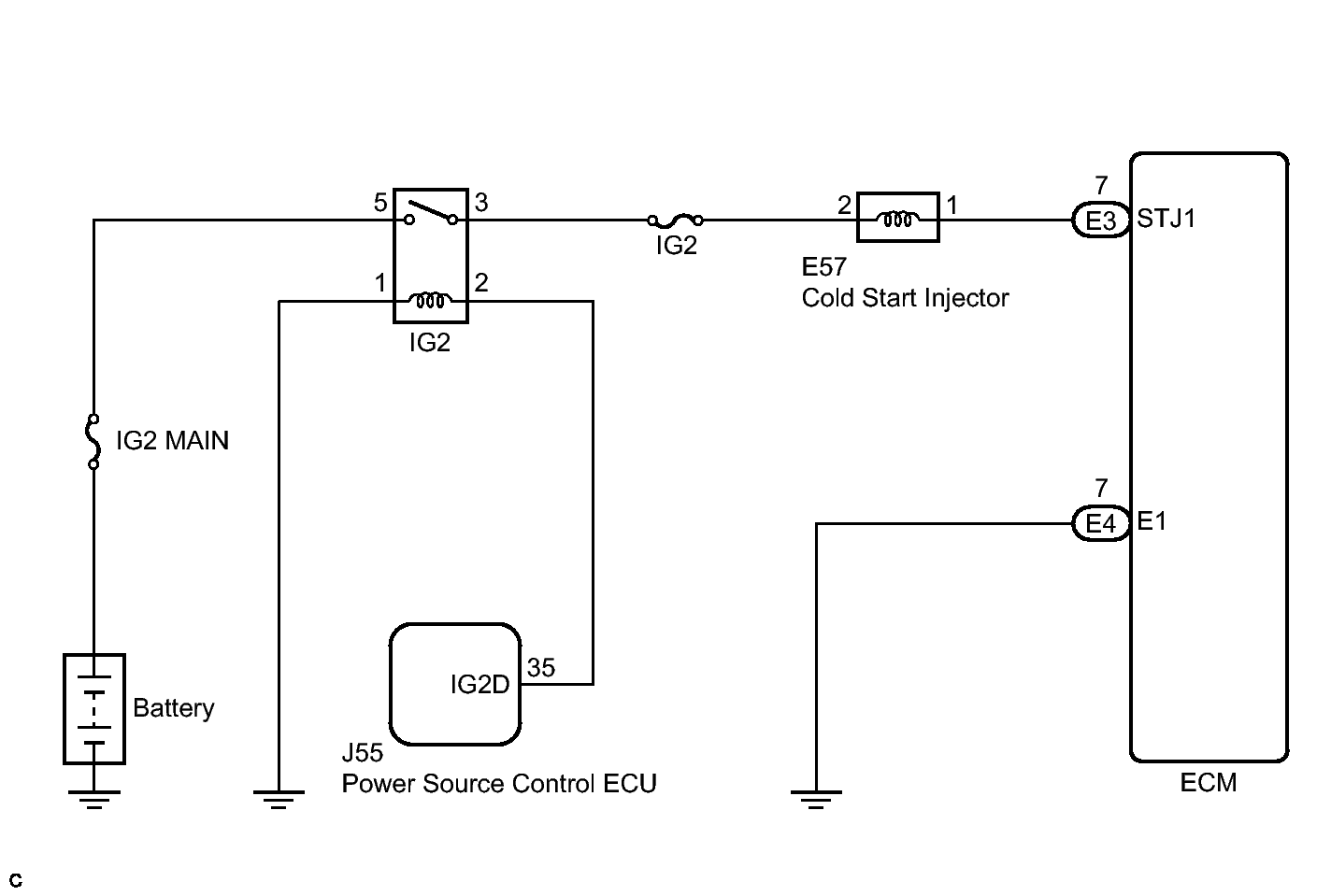

Fig 1: Identifying Cold Start Injector Circuit - Wiring Diagram
GTY280470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
