VC Output Circuit: Wiring Diagram

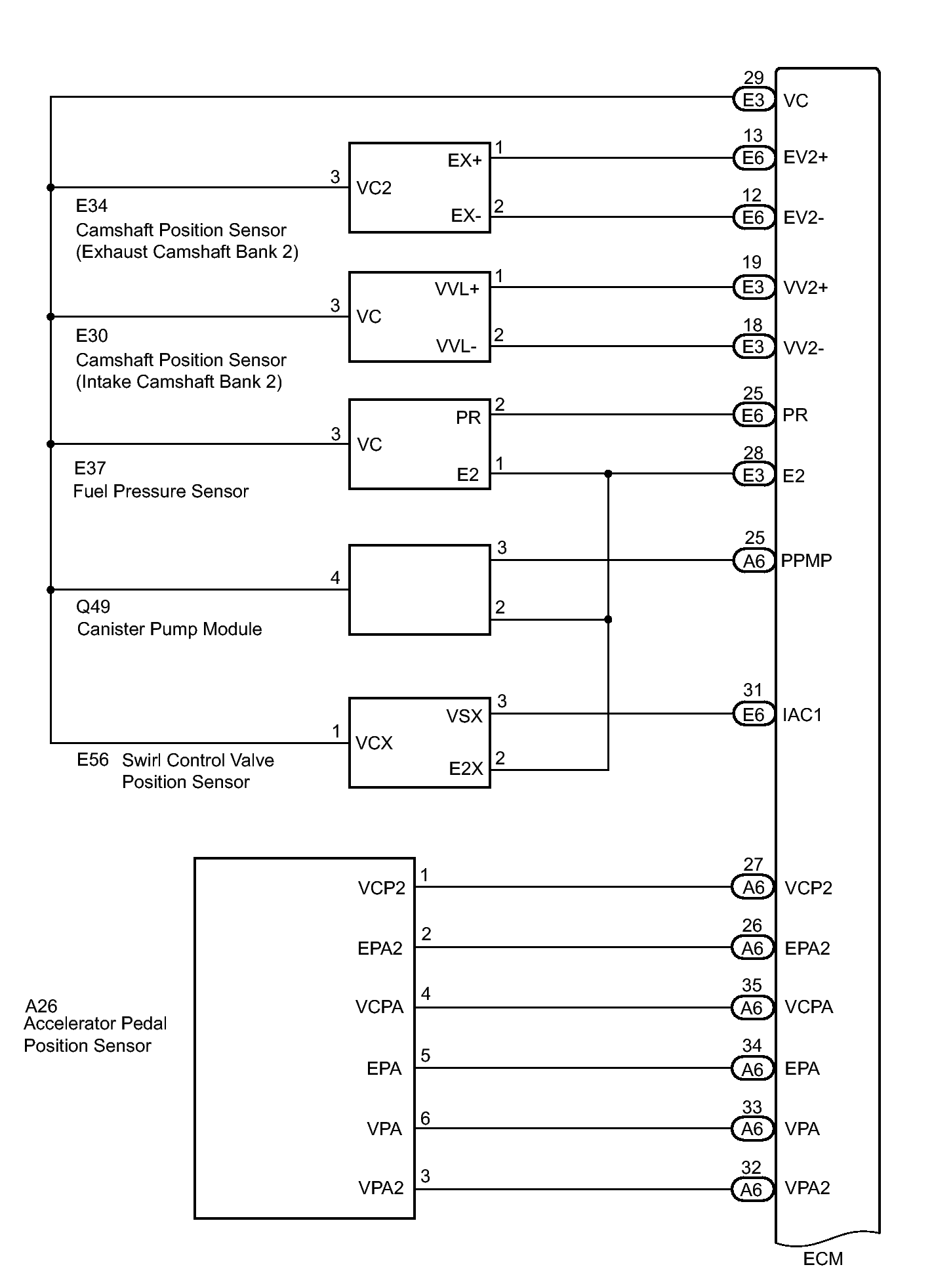

Fig 1: Identifying VC Output Circuit - Wiring Diagram (1 Of 2)
GTY275984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

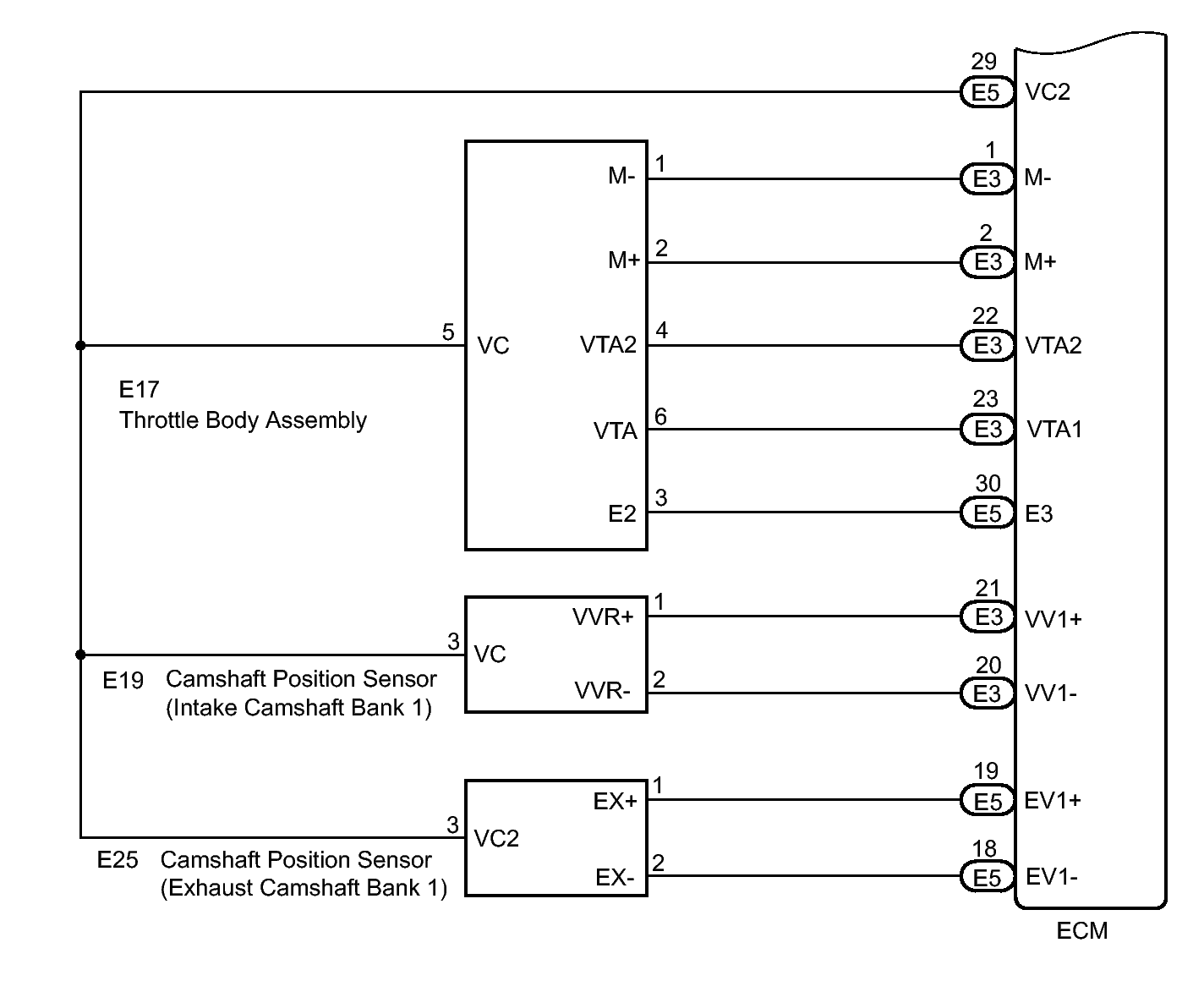

Fig 2: Identifying VC Output Circuit - Wiring Diagram (2 Of 2)
GTY267761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
