Engine Oil Temperature Sensor: Inspection: Inspection

WARNING: This page is about a different car, the 2011 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT OIL TEMPERATURE SENSOR
    1. Measure the resistance according to the value(s) in the table below.

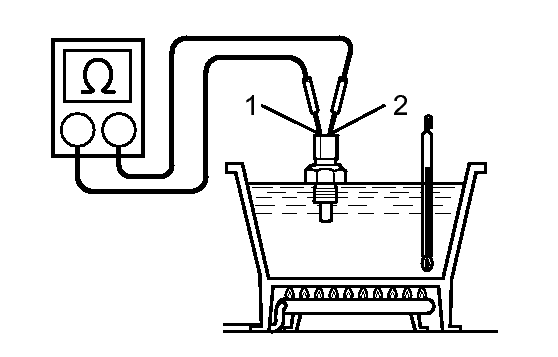

      Fig 1: Inspecting Oil Temperature Sensor
      GTY120889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 - 2 25°C (77°F) 8.70 to 11.30 kΩ
      1 - 2 80°C (176°F) 1.529 to 1.869 kΩ

      If the result is not as specified, replace the sensor.

      NOTE:

      When checking the sensor in water, keep the terminals dry. After the check, wipe the sensor dry.
