Stop Light Control Relay: Installation: Installation

WARNING: This page is about a different car, the 2011 Lexus IS 350 and 2011 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL STOP LIGHT CONTROL RELAY ASSEMBLY
    1. Engage the clamp and install the stop light control relay assembly.

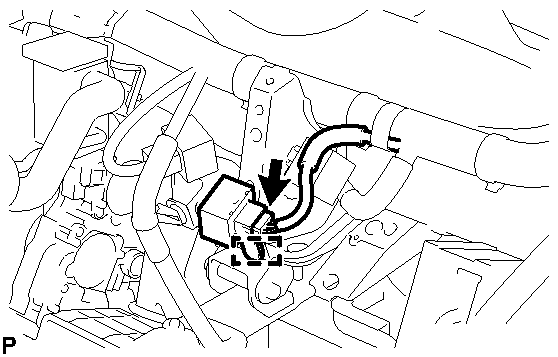

      Fig 1: Identifying J89 Stop Light Control Relay Connector Terminals
      GTY153476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
  2. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY  . Refer to INSTALLATION - Step 3
  3. CONNECT PASSENGER AIRBAG CONNECTOR  . Refer to INSTALLATION - Step 5
  4. INSTALL NO. 2 CONSOLE BOX DUCT (for Manual Transmission)  . Refer to INSTALLATION - Step 6
  5. INSTALL NO. 1 CONSOLE BOX DUCT (for Automatic Transmission)  . Refer to INSTALLATION - Step 5
  6. INSTALL NO. 2 CONSOLE BOX DUCT (for Automatic Transmission)  . Refer to INSTALLATION - Step 7
  7. INSTALL FRONT STEREO COMPONENT SPEAKER ASSEMBLY (w/ Front Center Speaker)  . Refer to INSTALLATION - Step 1
  8. INSTALL NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 9
  9. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY  . Refer to INSTALLATION - Step 10
  10. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY  . Refer to INSTALLATION - Step 11
  11. INSTALL FRONT PILLAR GARNISH LH  . Refer to INSTALLATION - Step 84
  12. INSTALL FRONT PILLAR GARNISH RH
  13. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY  . Refer to INSTALLATION - Step 15
  14. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY  . Refer to INSTALLATION - Step 1
  15. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  . Refer to INSTALLATION - Step 17
  16. INSTALL SIDE INSTRUMENT PANEL RH  . Refer to INSTALLATION - Step 18
  17. INSTALL FRONT DOOR OPENING TRIM COVER RH  . Refer to INSTALLATION - Step 19
  18. INSTALL FRONT DOOR SCUFF PLATE RH (w/o Illumination)
  19. INSTALL FRONT DOOR SCUFF PLATE RH (w/ Illumination)
  20. INSTALL COMBINATION METER ASSEMBLY  . Refer to INSTALLATION - Step 22
  21. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 23
  22. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY  . Refer to INSTALLATION - Step 1
  23. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 25
  24. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  . Refer to INSTALLATION - Step 26
  25. INSTALL SIDE INSTRUMENT PANEL LH  . Refer to INSTALLATION - Step 27
  26. INSTALL FRONT DOOR OPENING TRIM COVER LH  . Refer to INSTALLATION - Step 28
  27. INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination)  . Refer to INSTALLATION - Step 88
  28. INSTALL FRONT DOOR SCUFF PLATE LH (w/ Illumination)  . Refer to INSTALLATION - Step 90
  29. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY  . Refer to INSTALLATION - Step 6
  30. INSTALL STEERING COLUMN COVER (for Manual Tilt and Manual Telescopic Steering Column)  . Refer to INSTALLATION - Step 7
  31. INSTALL STEERING COLUMN COVER (for Power Tilt and Power Telescopic Steering Column)  . Refer to INSTALLATION - Step 8
  32. ADJUST SPIRAL CABLE SUB-ASSEMBLY  . Refer to INSTALLATION - Step 4
  33. INSTALL STEERING WHEEL ASSEMBLY  . Refer to INSTALLATION - Step 9
  34. INSTALL STEERING PAD  . Refer to INSTALLATION - Step 1
  35. INSTALL LOWER NO. 3 STEERING WHEEL COVER  . Refer to INSTALLATION - Step 2
  36. INSTALL LOWER NO. 2 STEERING WHEEL COVER  . Refer to INSTALLATION - Step 3
  37. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)  . Refer to INSTALLATION - Step 4
  38. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)  . Refer to INSTALLATION - Step 8
  39. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL  . Refer to INSTALLATION - Step 41
  40. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY  . Refer to INSTALLATION - Step 42
  41. INSTALL CONSOLE BOX  . Refer to INSTALLATION - Step 43
  42. INSTALL CONSOLE BOX REGISTER ASSEMBLY  . Refer to INSTALLATION - Step 44
  43. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY  . Refer to INSTALLATION - Step 46
  44. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)  . Refer to INSTALLATION - Step 48
  45. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)  . Refer to INSTALLATION - Step 49
  46. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)  . Refer to INSTALLATION - Step 50
  47. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission)  . Refer to INSTALLATION - Step 51
  48. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission)  . Refer to INSTALLATION - Step 52
  49. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
  50. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
  51. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  52. INSPECT STEERING PAD  . Refer to INSTALLATION - Step 5
  53. INSPECT SRS WARNING LIGHT

    Refer to DIAGNOSIS SYSTEM
