Cold Start Injector: Installation: Installation

WARNING: This page is about a different car, the 2011 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL COLD START INJECTOR
1. Install a new gasket to the intake air surge tank.

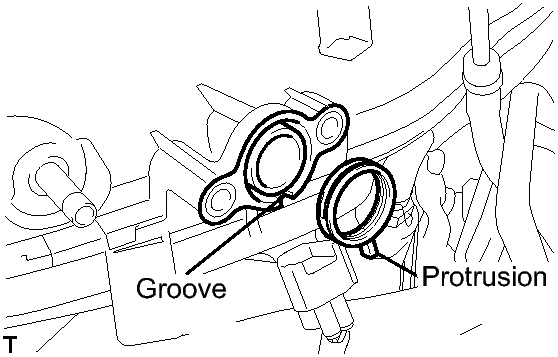

  Fig 1: Identifying New Gasket To Intake Air Surge Tank
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Align the protrusion of the gasket on the intake air surge tank.
2. Install the cold start injector with the 2 bolts.

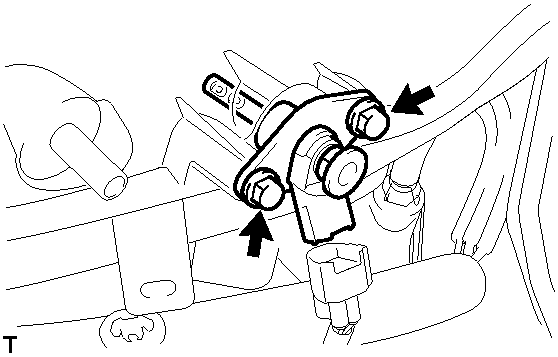

  Fig 2: Identifying Cold Start Injector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N.m (102 kgf cm, 7 ft. lbf)
3. Install 2 new gaskets and the hose to the cold start injector with the bolt.

  Fig 3: Identifying Fuel Tube From Cold Start Injector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 15 N.m (153 kgf cm, 11 ft. lbf)
  NOTE:
  - Be careful not to damage the gasket.
  - Do not fold or bend the hose.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL . Refer to INSTALLATION - Step 93
INSPECT FOR FUEL LEAK . Refer to ON-VEHICLE INSPECTION - Step 1
INSTALL V-BANK COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 115
