Engine Oil Temperature Sensor: Removal: Removal

WARNING: This page is about a different car, the 2011 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY
1. Remove the engine oil pressure switch assembly. Refer to REMOVAL .
REMOVE OIL TEMPERATURE SENSOR
1. Disconnect the temperature sensor connector.
2. Using SST, remove the temperature sensor and gasket.

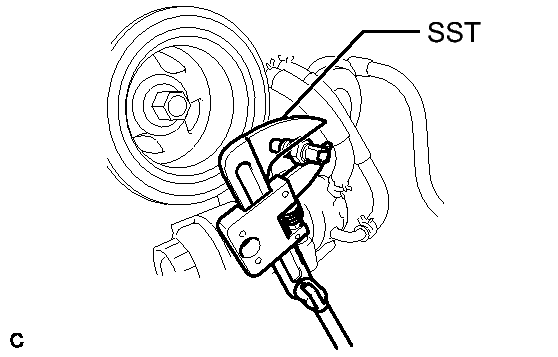

  Fig 1: Removing Temperature Sensor And Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09922-10010
  NOTE:
  - Do not subject the temperature sensor to any impacts.
  - If the sensor is subjected to an impact, replace the temperature sensor with a new one.
