STEERING COLUMN: MULTIPLEX TILT AND TELESCOPIC ECU: INSTALLATION

1. INSTALL MULTIPLEX TILT AND TELESCOPIC ECU

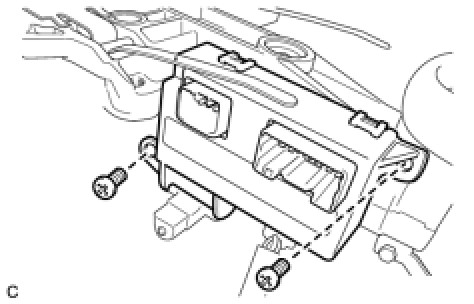

(a) Install the multiplex tilt and telescopic ECU with the 2 screws.





Torque : 1.5 Nm (15 kgf-cm, 13 in-lbf)

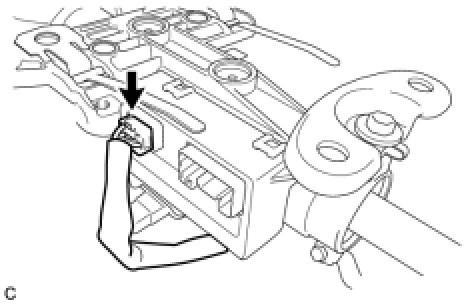

(b) Connect the connector to the multiplex tilt and telescopic ECU.





NOTICE:
* The connectors on both ends of the wire harness between the telescopic motor and ECU are the same shape.
* When installing them, connect the connectors of the same color.

2. INSTALL STEERING LOCK ACTUATOR ASSEMBLY Reassembly

3. INSTALL STEERING COLUMN ASSEMBLY

HINT
Refer to the instructions for Installation of the steering column assembly Installation.
