Section 136 (Charging System (Service Information)): Generator: Installation: Installation

WARNING: This page is about a different car, the 2011 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL GENERATOR ASSEMBLY
1. Install the generator bracket with the bolt (A).

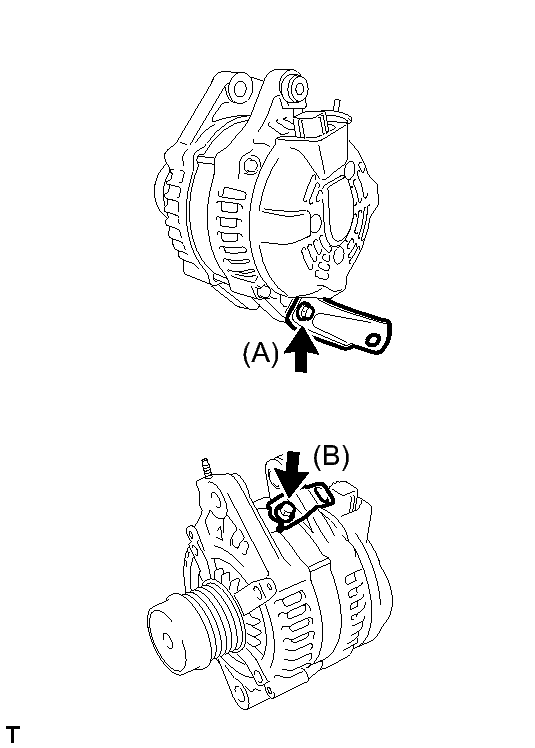

  Fig 1: Identifying Generator Bracket & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 20 N.m (204 kgf cm, 15 ft. lbf)
2. Install the generator bracket with the bolt (B).
  Torque: 10 N.m (102 kgf cm, 7 ft. lbf)
3. Install the generator assembly with the 2 bolts.

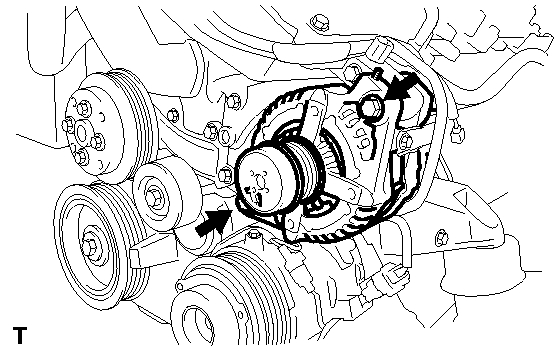

  Fig 2: Identifying Bolts & Generator Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 43 N.m (438 kgf cm, 32 ft. lbf)
4. Install the bracket with the nut.

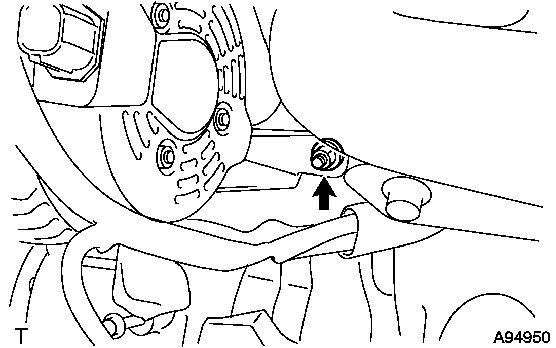

  Fig 3: Identifying Bracket Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 20 N.m (204 kgf cm, 15 ft. lbf)
5. Install the generator wire to terminal B with the nut (A).

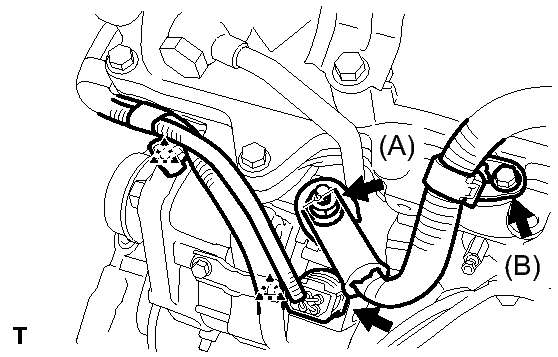

  Fig 4: Identifying Generator Connector & Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 9.8 N.m (100 kgf cm, 87 in. lbf)
6. Install the terminal cap.
7. Install the clamp bracket with the bolt (B).
  Torque: 10 N.m (102 kgf cm, 7 ft. lbf)
8. Attach the 2 clamps, and connect the generator connector to the generator.
INSTALL WIRE HARNESS
1. Install the wire harness with the 3 nuts (A).

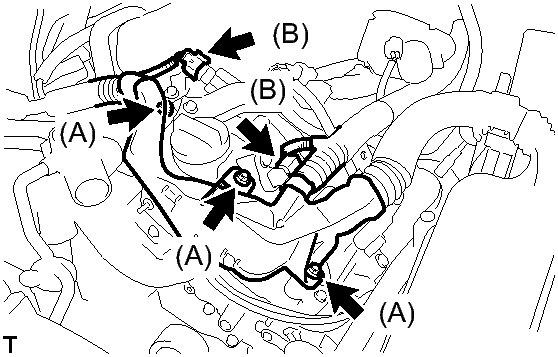

  Fig 5: Identifying Nuts & Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N.m (102 kgf cm, 7 ft. lbf)
2. Connect the 2 connectors (B).
INSTALL NO. 2 IDLER PULLEY SUB-ASSEMBLY . Refer to INSTALLATION - Step 2
INSTALL NO. 2 ENGINE COVER . Refer to INSTALLATION - Step 28
INSTALL RADIATOR INLET HOSE . Refer to INSTALLATION - Step 6
INSTALL V-RIBBED BELT . Refer to INSTALLATION - Step 1
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL . Refer to INSTALLATION - Step 93
ADD ENGINE COOLANT . Refer to ON-VEHICLE INSPECTION - Step 5
CHECK FOR ENGINE COOLANT LEAKS . Refer to ON-VEHICLE INSPECTION - Step 1
INSTALL NO. 1 INLET AIR CLEANER . Refer to INSTALLATION - Step 87
INSTALL V-BANK COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 115
INSTALL ENGINE ROOM SIDE COVER LH . Refer to INSTALLATION - Step 116
INSTALL COOL AIR INTAKE DUCT SEAL . Refer to INSTALLATION - Step 118
