Multi-Media Interface Ecu: Components: Illustration
WARNING:
This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

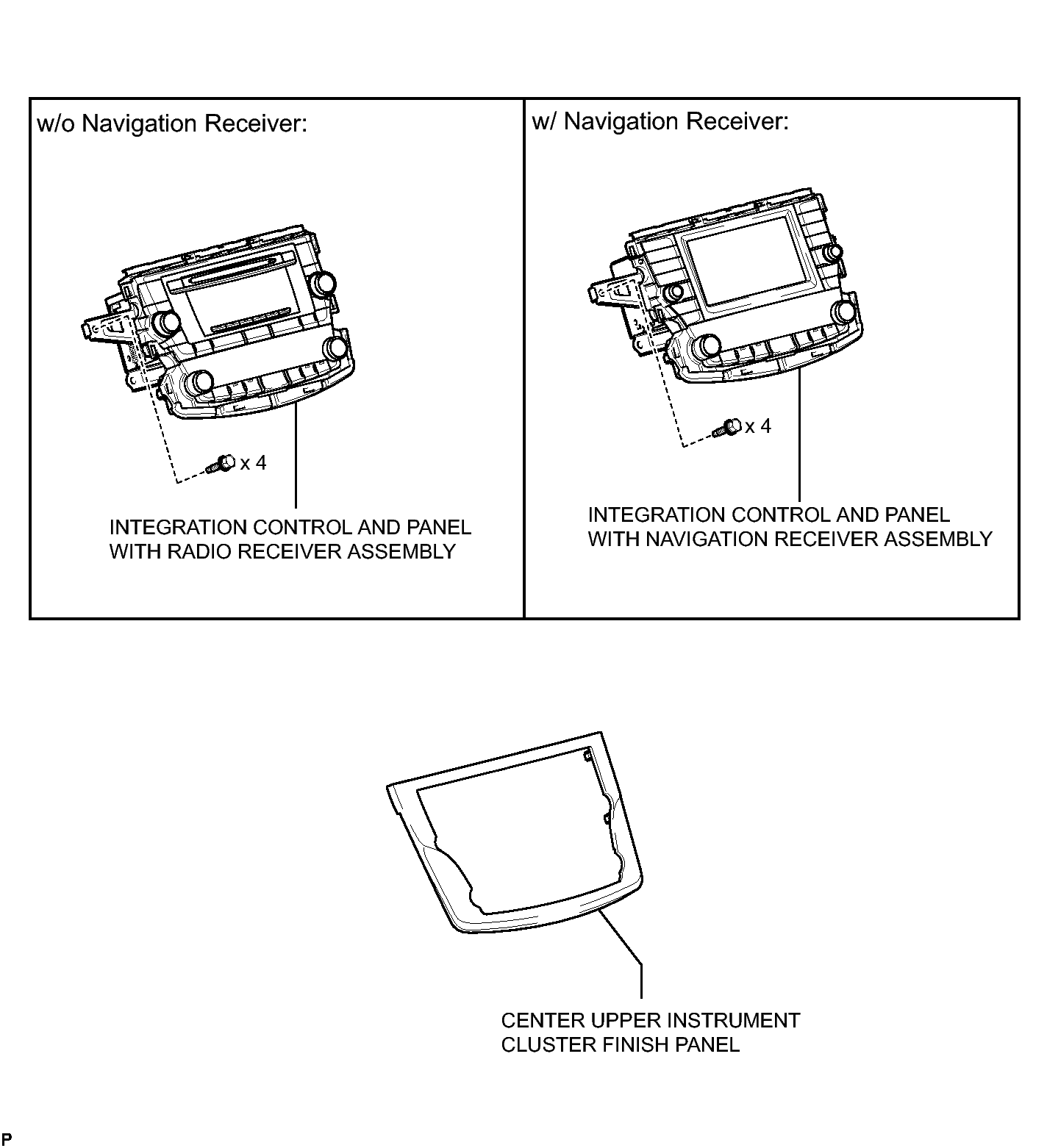

Fig 1: Identifying Multi-Media Interface Replacement Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

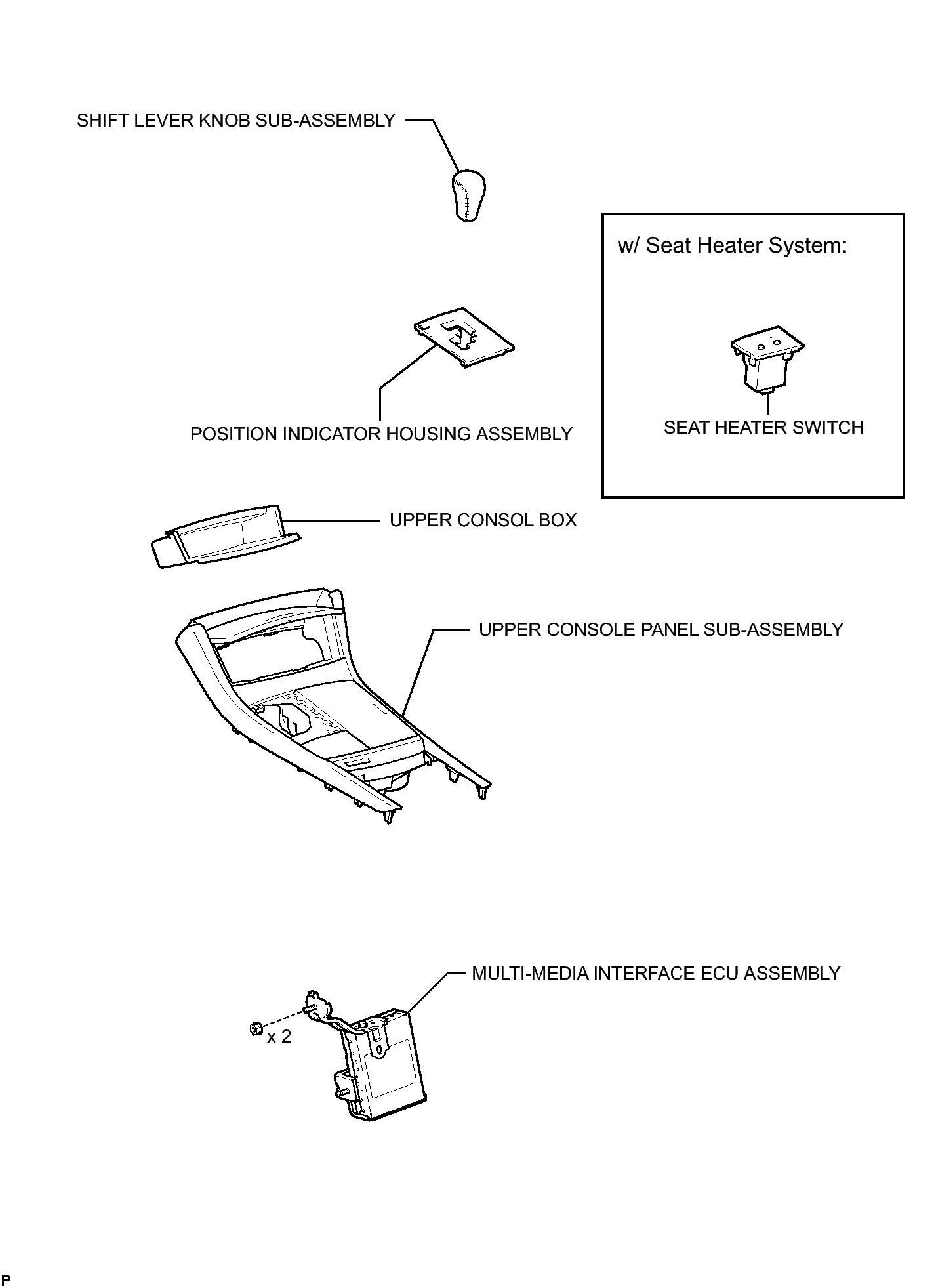

Fig 1: Identifying Multi-Media Interface Replacement Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
