Installation (To 12/2010): Installation

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL RADIO RECEIVER ASSEMBLY

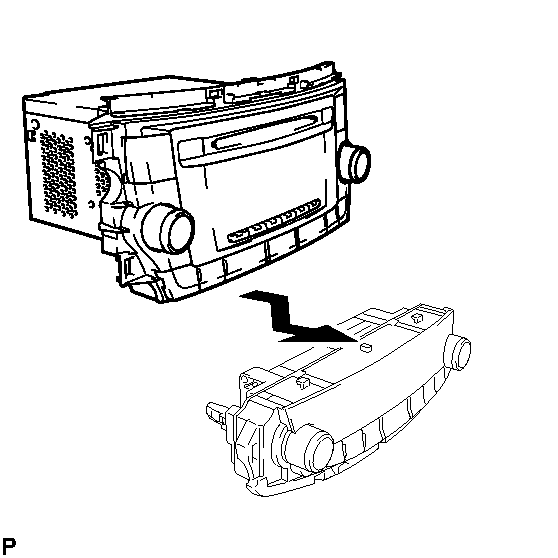

    1. Slide the radio receiver assembly in the direction shown by the arrow to install the radio receiver assembly.
      Fig 1: Installing Radio Receiver Assembly
      GTY300849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 2 RADIO BRACKET
    1. Install the No. 2 radio bracket with the 4 bolts and 2 screws.
  3. INSTALL NO. 1 RADIO BRACKET
    1. Install the No. 1 radio bracket with the 4 bolts and 2 screws.
  4. INSTALL INTEGRATION CONTROL AND PANEL WITH RADIO RECEIVER ASSEMBLY
    1. Connect each connector.
    2. Engage the 4 clips.
    3. Install the integration control and panel with radio receiver assembly with the 4 bolts.
  5. INSTALL CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL  . Refer to INSTALLATION - Step 37
