REMOVAL (To 12/2010): Removal

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL . Refer to REMOVAL - Step 10
REMOVE INTEGRATION CONTROL AND PANEL WITH NAVIGATION RECEIVER ASSEMBLY

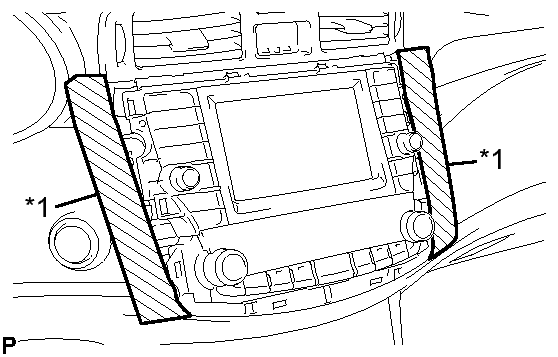

1. Apply protective tape as shown in the illustration.

  Fig 1: Apply Protective Tape
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Protective Tape

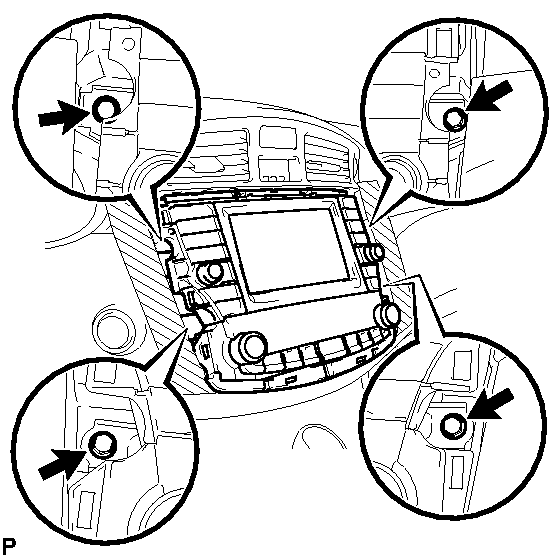

2. Remove the 4 bolts.

  Fig 2: Identifying Integration Control And Panel bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

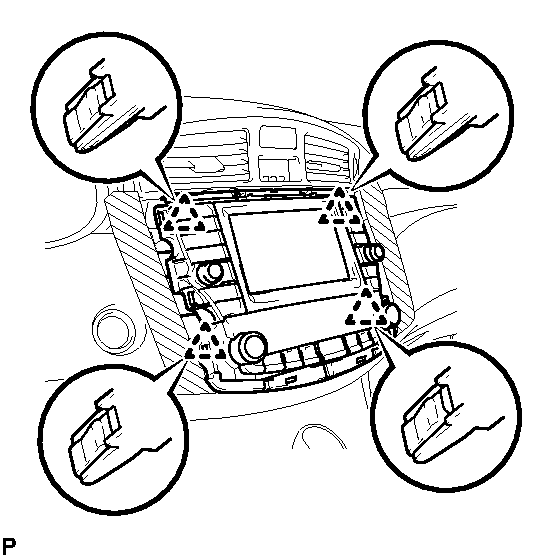

3. Disengage the 4 clips.

  Fig 3: Identifying Integration Control And Panel Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disconnect each connector and remove the integration control and panel with navigation receiver assembly.

REMOVE NO. 1 RADIO BRACKET

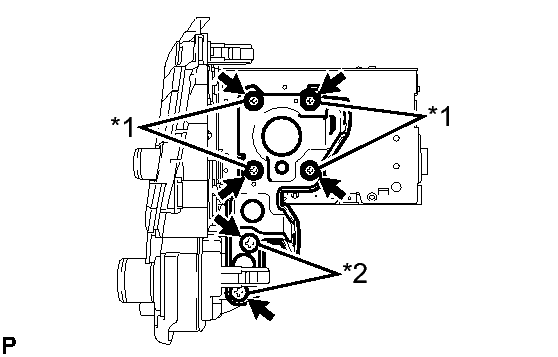

Remove the 4 bolts and 2 screws to remove the No. 1 radio bracket.

Fig 4: Identifying No. 1 Radio Bracket

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Bolt
*2	Screw

REMOVE NO. 2 RADIO BRACKET

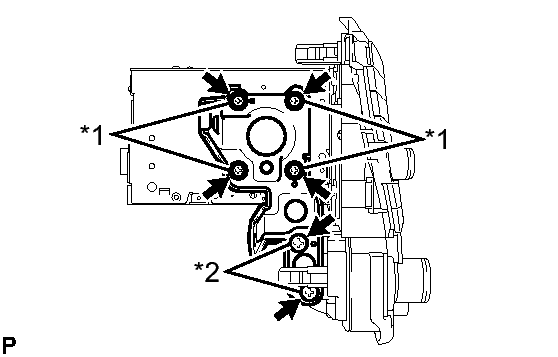

Remove the 4 bolts and 2 screws to remove the No. 2 radio bracket.

Fig 5: Identifying No. 2 Radio Bracket

TEXT IN ILLUSTRATION

*1	Bolt
*2	Screw

REMOVE NAVIGATION RECEIVER ASSEMBLY

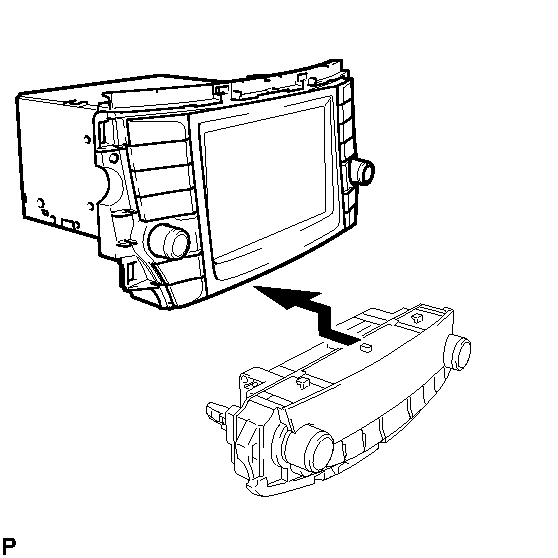

1. Slide the navigation receiver assembly in the direction shown by the arrow to remove the navigation receiver assembly.

  Fig 6: Remove Navigation Receiver Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
