Rear Combination Light Assembly: Reassembly: Reassembly

WARNING: This page is about a different car, the 2011 Lexus IS 350 and 2011 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL REAR LIGHT GASKET

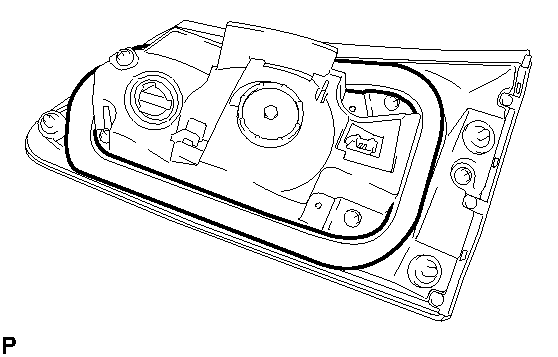

1. Install a new rear light gasket to the rear light lens.

  Fig 1: Identifying Rear Light Lens Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR LIGHT SOCKET AND WIRE

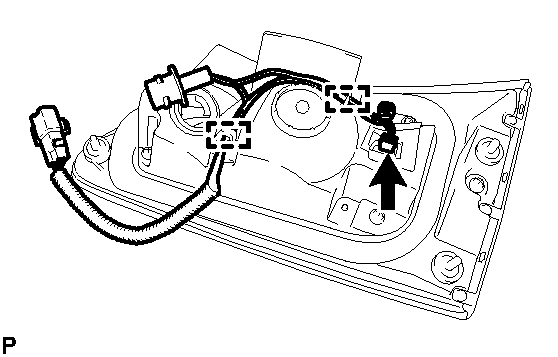

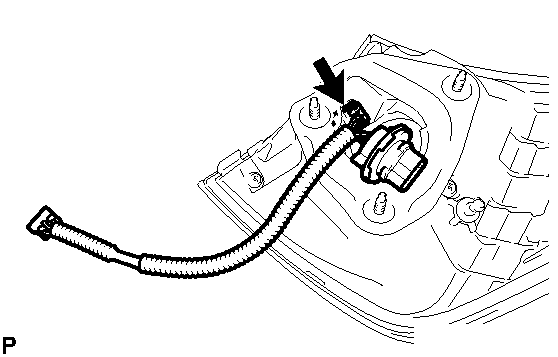

1. Engage the 2 clamps to install the rear light socket and wire.

  Fig 2: Identifying Rear Light Socket & Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector.
INSTALL BACK UP LIGHT BULB

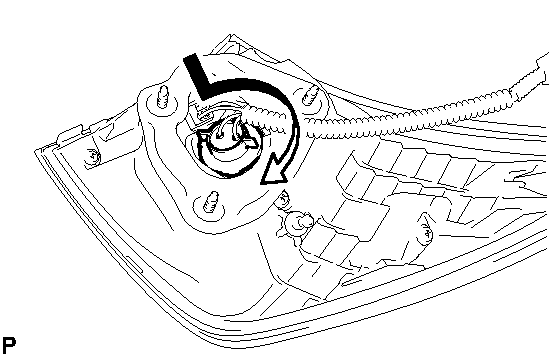

1. Install the back up light bulb to the rear light socket and wire.
2. Turn the back up light bulb and the rear light socket and wire in the direction indicated by the arrow in the illustration and install them as a unit.

  Fig 3: Installing Back Up Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR LIGHT GASKET

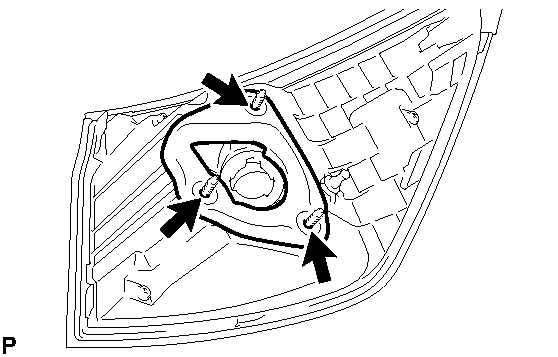

1. Install 3 new rear light gaskets.

  Fig 4: Identifying Rear Light Gaskets
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR COMBINATION LIGHT BODY GASKET

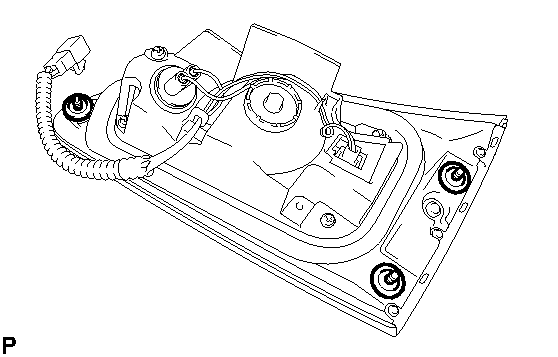

1. Remove the release paper from a new rear combination light body gasket.
2. Align the gasket with the 3 stud bolts and install the rear combination light body gasket to the rear combination light lens and body.

  Fig 5: Identifying Rear Combination Light Body Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR COMBINATION LIGHT SOCKET AND WIRE
1. Connect the connector and install the rear combination light socket and wire.

  Fig 6: Identifying Rear Combination Light Socket & Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR TURN SIGNAL LIGHT BULB

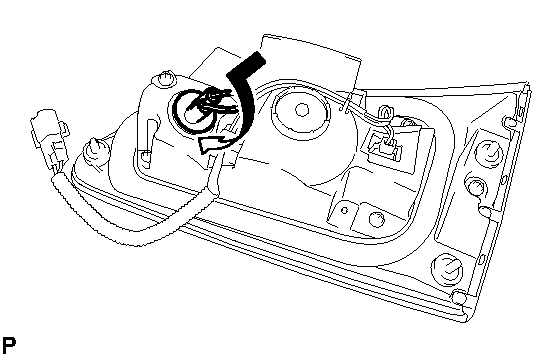

1. Install the rear turn signal light bulb to the rear combination light socket and wire.
2. Turn the rear turn signal light bulb and the rear combination light socket and wire in the direction indicated by the arrow in the illustration and install them as a unit.

  Fig 7: Installing Rear Turn Signal Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
