System Diagram

WARNING: This page is about a different car, the 2011 Lexus IS 350 and 2011 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

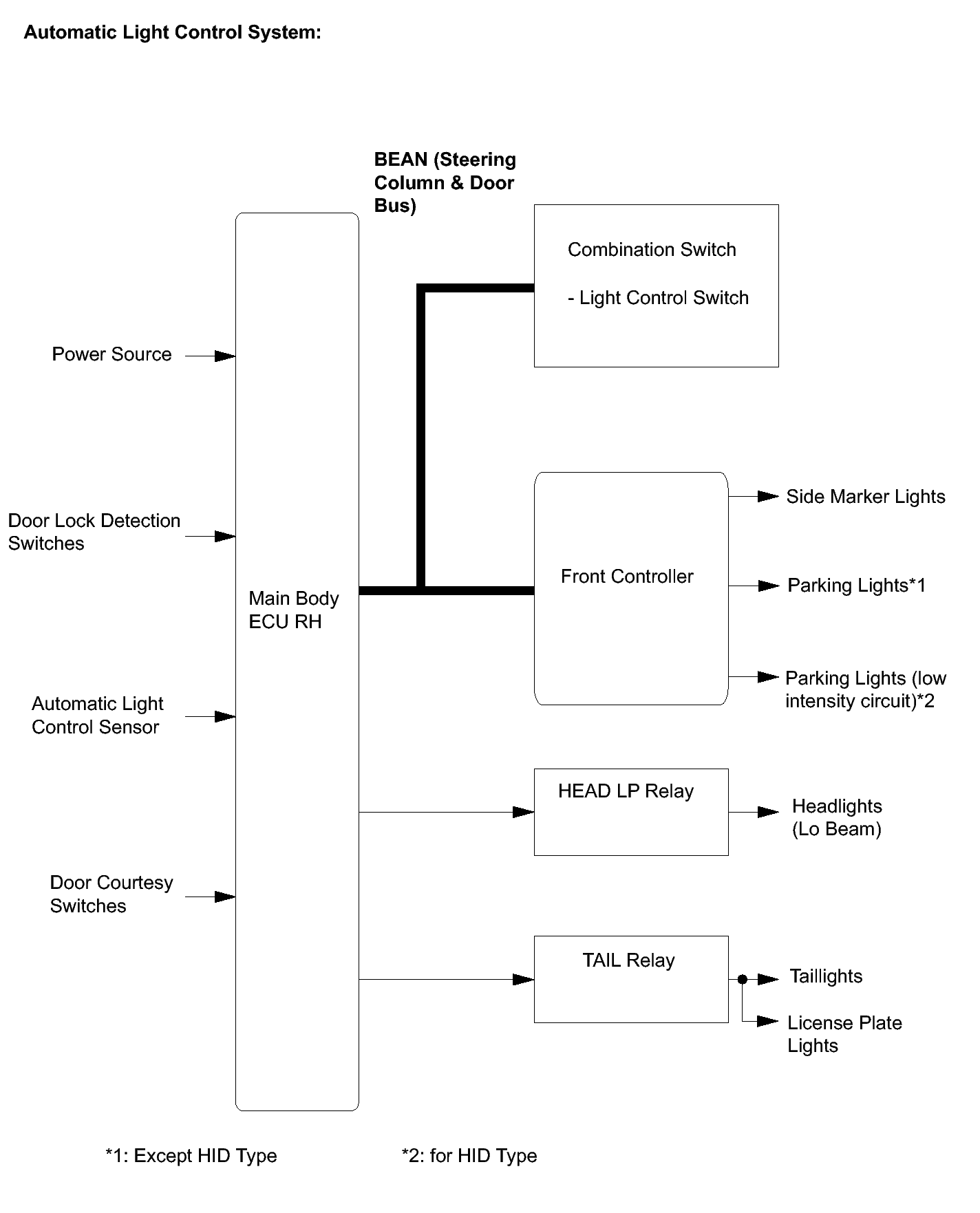

Fig 1: Automatic Light Control System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

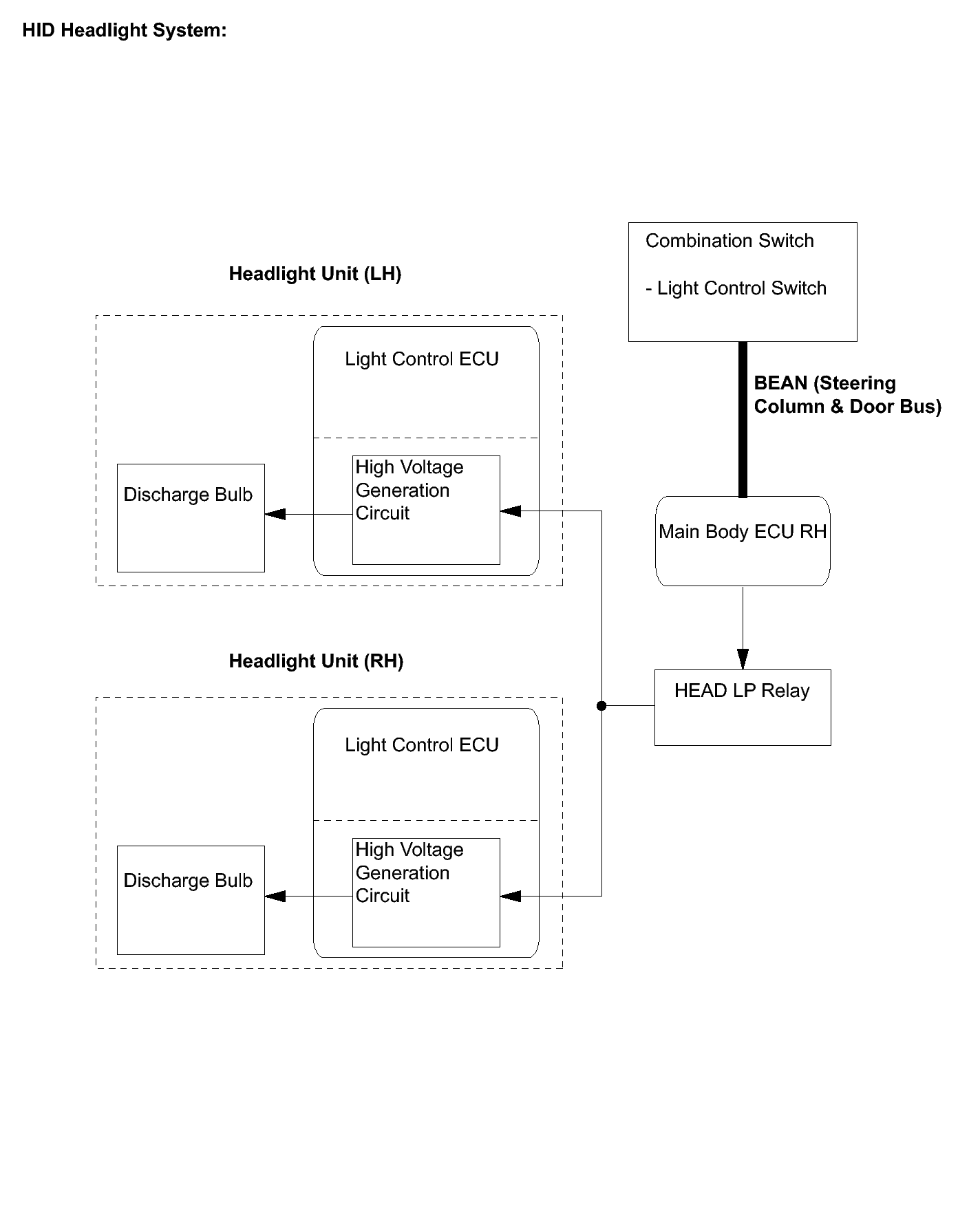

Fig 2: System Diagram -- HID Headlight System

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

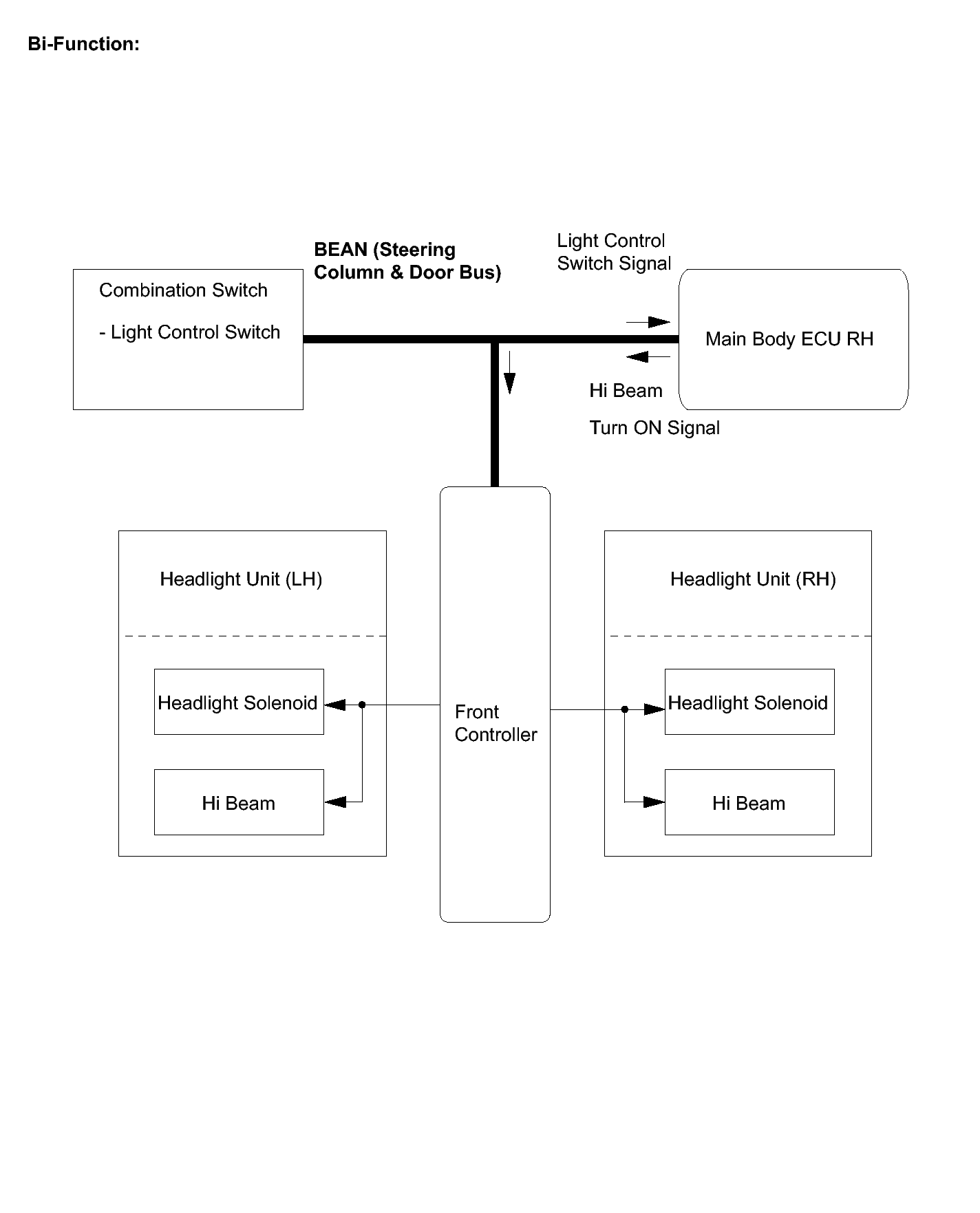

Fig 3: BI-FUNCTION System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

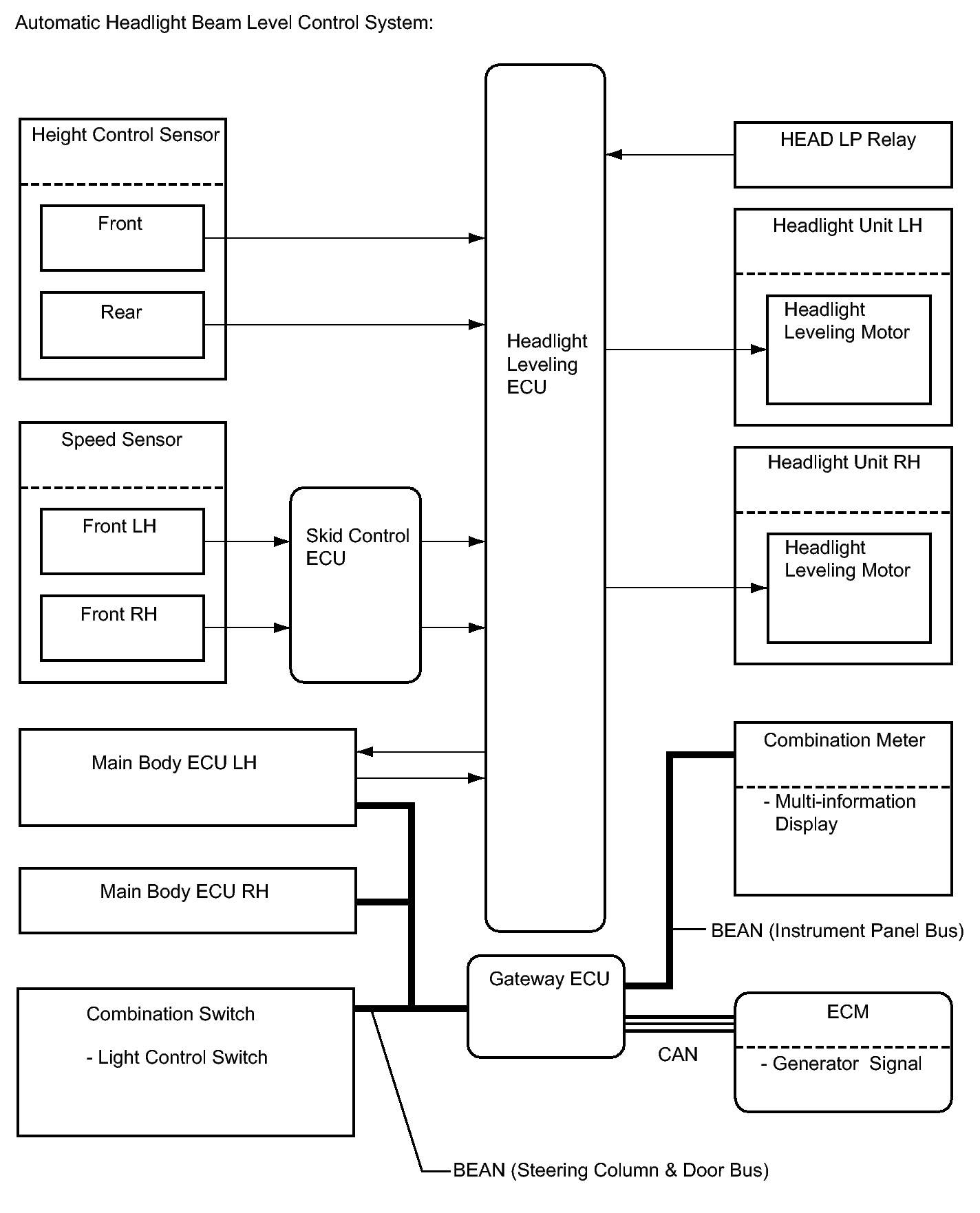

Fig 4: Automatic Headlight Beam Level Control System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Intelligent AFS (Adaptive Front Lighting System) Diagram

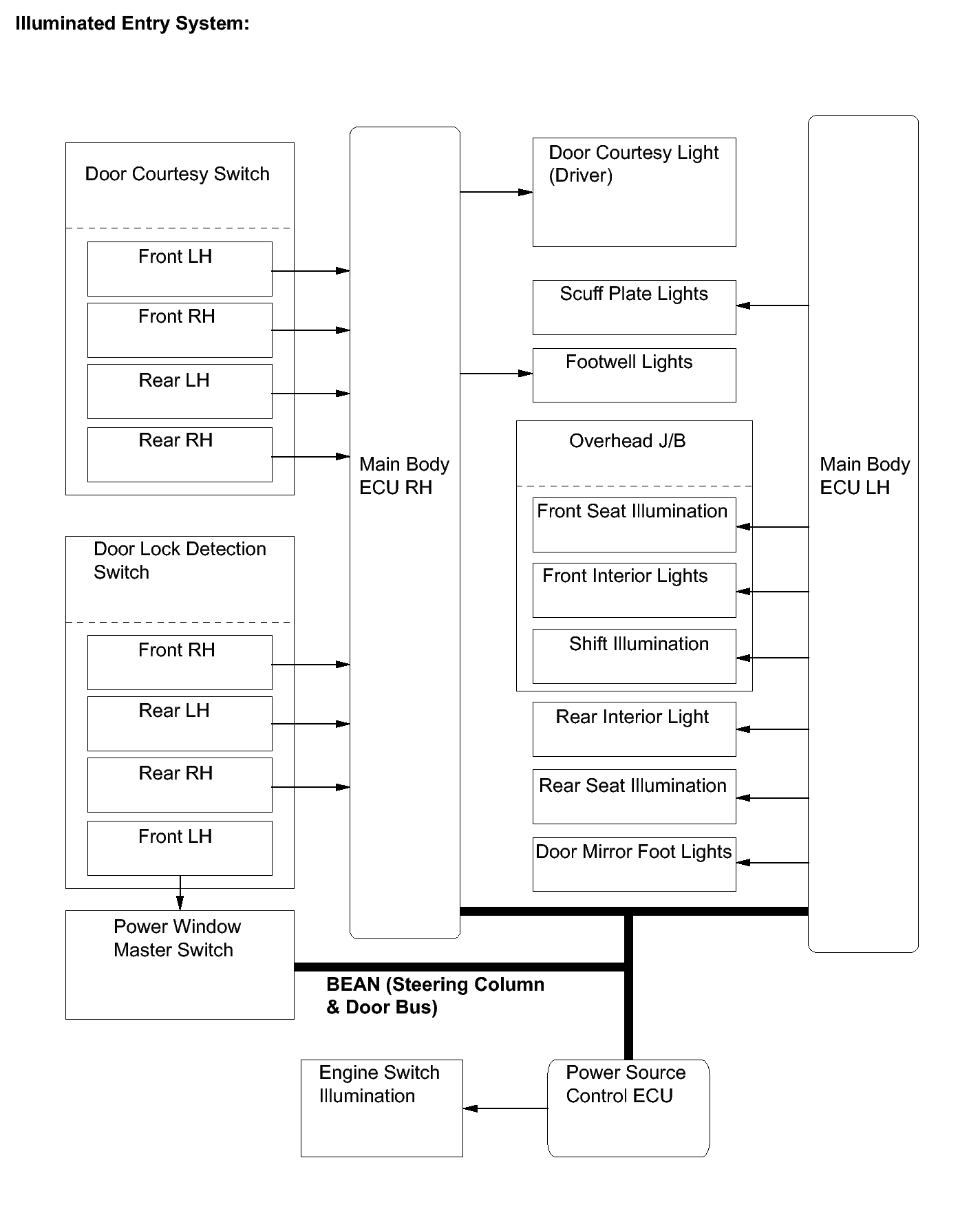

Fig 6: System Diagram -- Illuminated Entry System

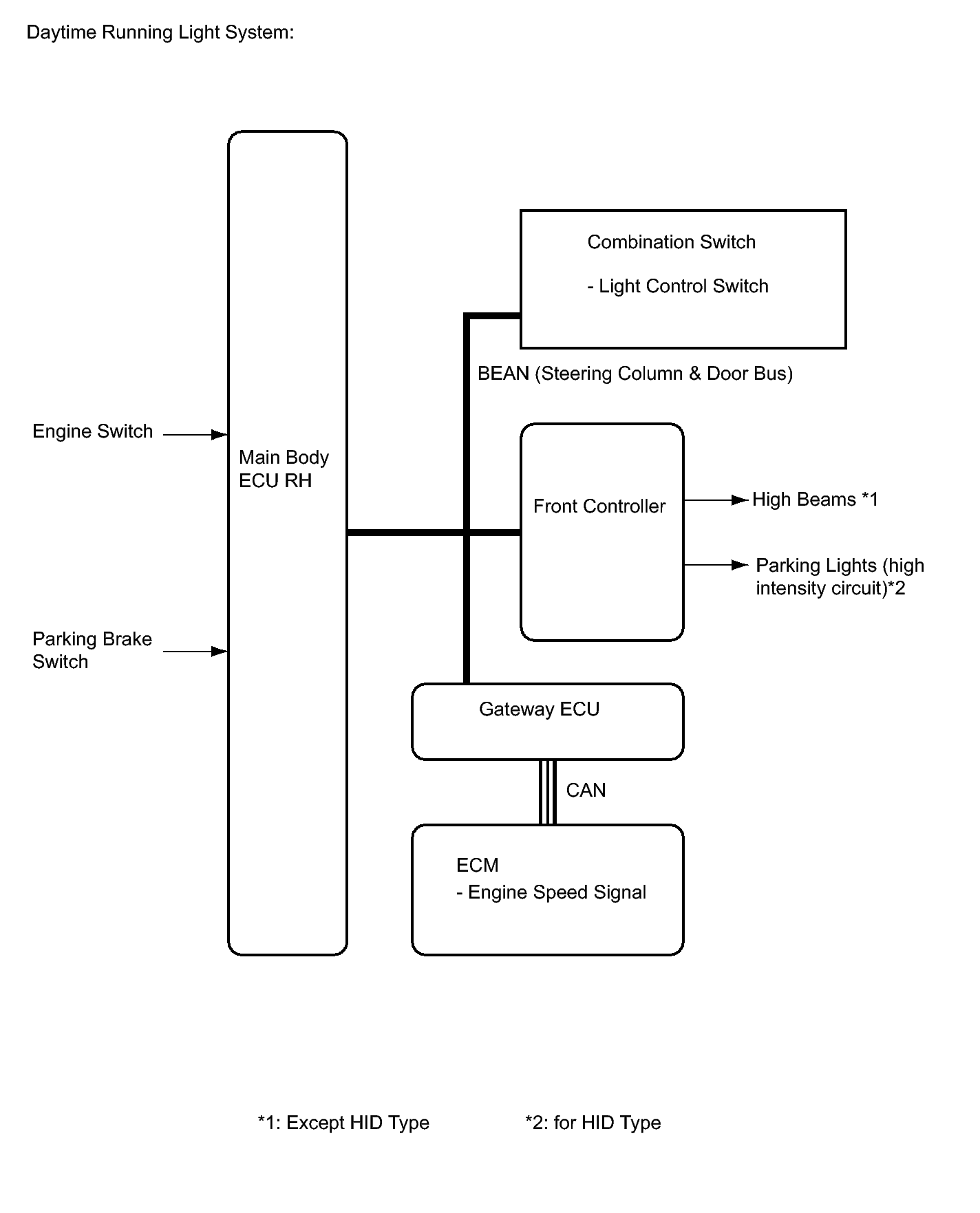

Various switches or sensors are represented as inputs for the different systems mentioned in the information. Where direct electrical connections do not exist between components, signals may be carried across the different networks (BEAN, CAN) that exist on the vehicle. If a signal needs to travel from the CAN network to the BEAN network, the gateway ECU allows the signal to travel between these different networks. Some of these different signals can be confirmed or inspected using the Techstream.
