Oil Temperature Sensor For ECM: Testing and Inspection

2UR-GSE ENGINE CONTROL: ENGINE OIL TEMPERATURE SENSOR: INSPECTION

1. INSPECT OIL TEMPERATURE SENSOR

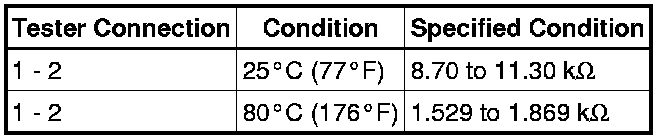

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





If the result is not as specified, replace the sensor.

NOTICE:

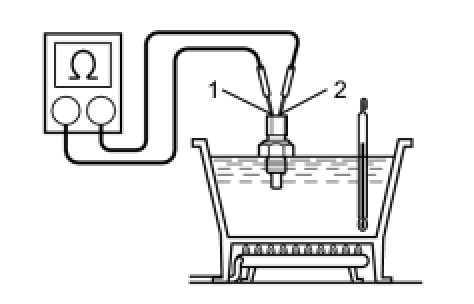

When checking the sensor in water, keep the terminals dry. After the check, wipe the sensor dry.
