Timing Cover

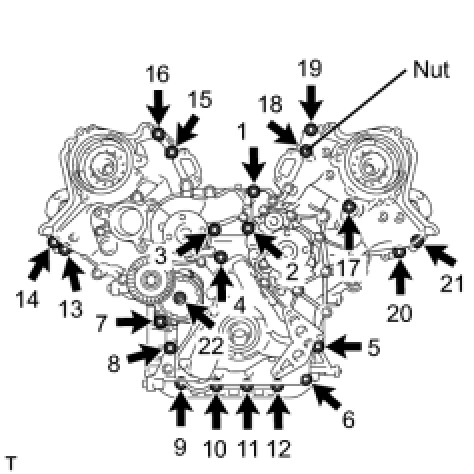

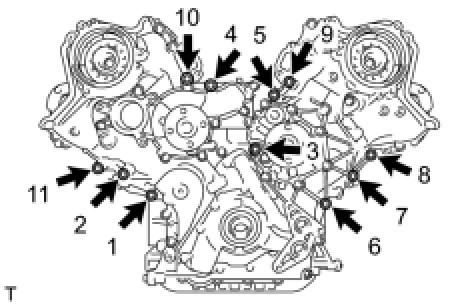

Timing cover





Torque 47 Nm (479 kgf-cm, 35 ft-lbf)





Torque 23 Nm (235 kgf-cm, 17 ft-lbf)
