DTC B1207: Smart ECU Stop: Procedure
- INSPECT FUSE (SECURITY)
- Remove the SECURITY fuse from the main body ECU LH (cowl side junction block LH).
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition SECURITY fuse Always Below 1 Ω
NG → REPLACE FUSE (SECURITY)
OK: Go to next step

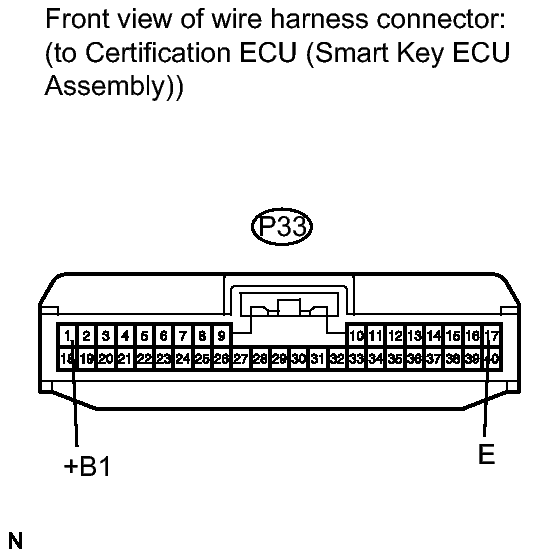

- CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - BATTERY AND BODY GROUND)
- Disconnect the P33 connector.
- Measure the voltage and resistance according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition P33-1 (+B1) - Body ground Always 11 to 14 V Standard Resistance
Tester Connection Condition Specified Condition P33-17 (E) - Body ground Always Below 1 Ω
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (CERTIFICATION ECU - BATTERY AND BODY GROUND)
OK: Go to next step

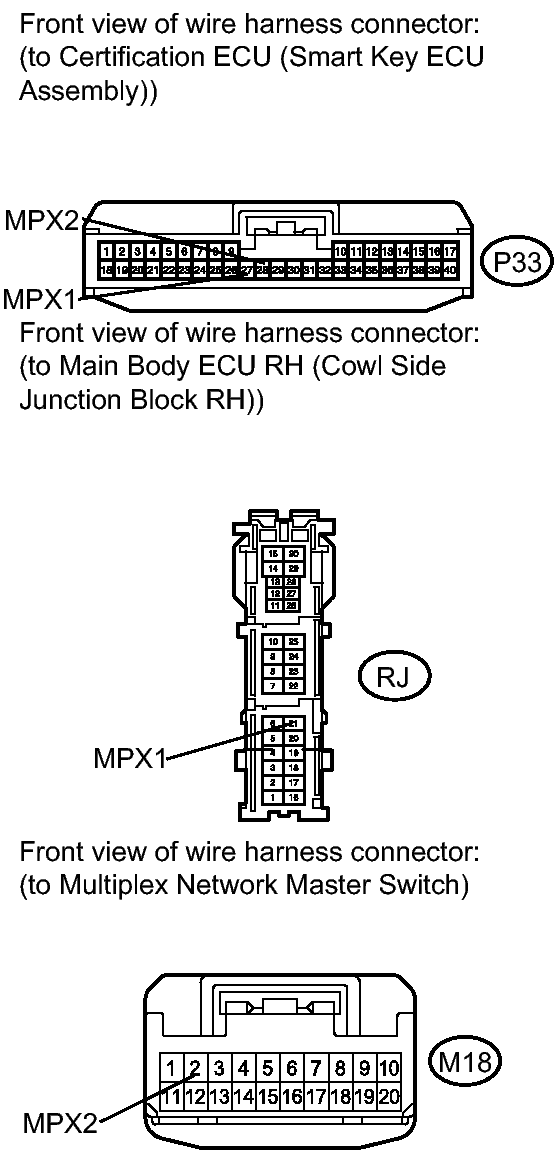

- CHECK HARNESS AND CONNECTOR (COMMUNICATION LINE)
- Disconnect the P33, RJ and M18 connectors.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition P33-27 (MPX1) - RJ-21 (MPX1) Always Below 1 Ω P33-28 (MPX2) - M18-2 (MPX2) Always Below 1 Ω
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 4
- REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to REMOVAL
