DTC B1278: Combination Switch ECU Communication Stop: Wiring Diagram

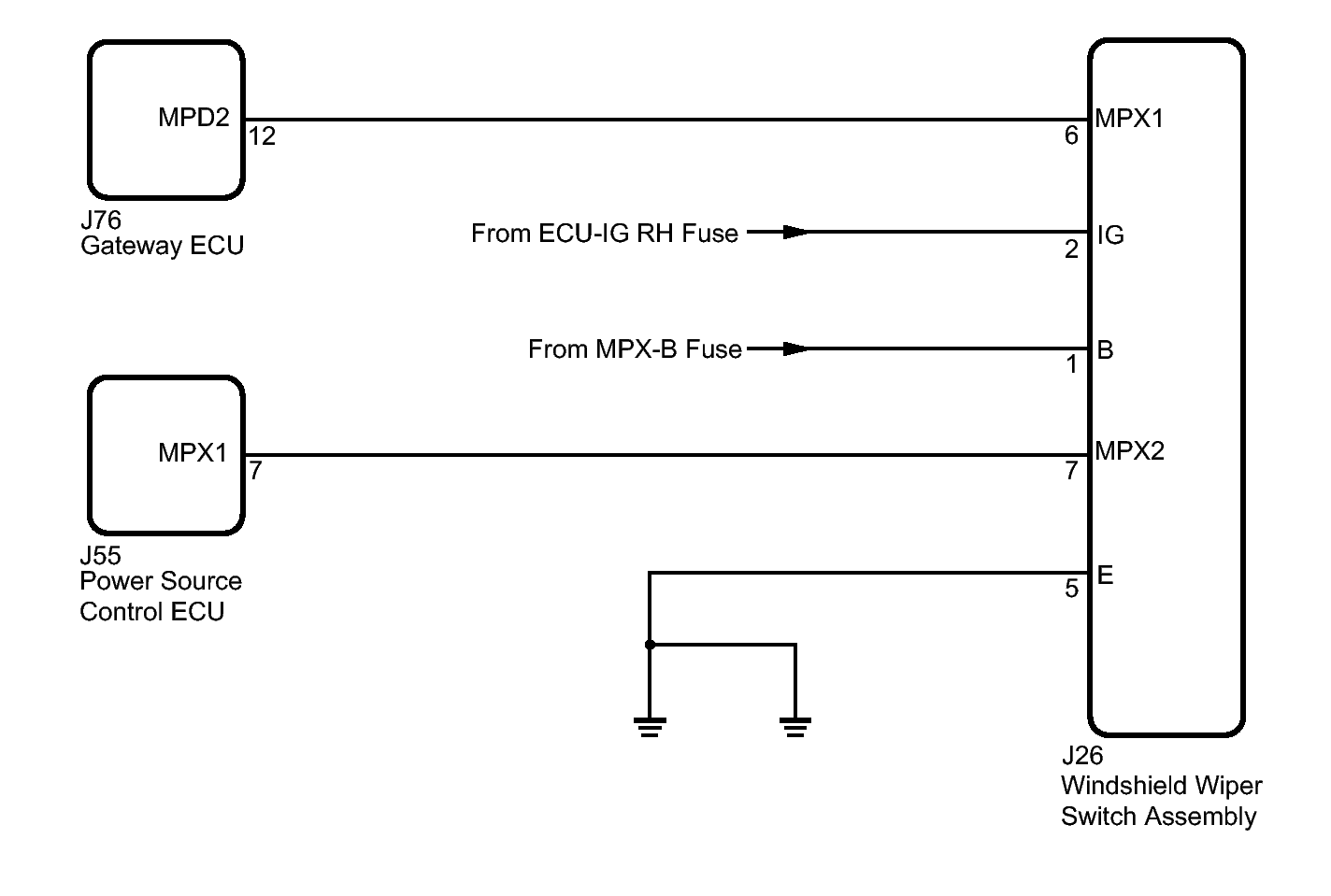

Fig 1: Identifying Windshield Wiper Switch Assembly And Gateway ECU - Wiring Diagram
GTY114898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
