DTC B1279: Rain Sensor Communication Stop: Wiring Diagram

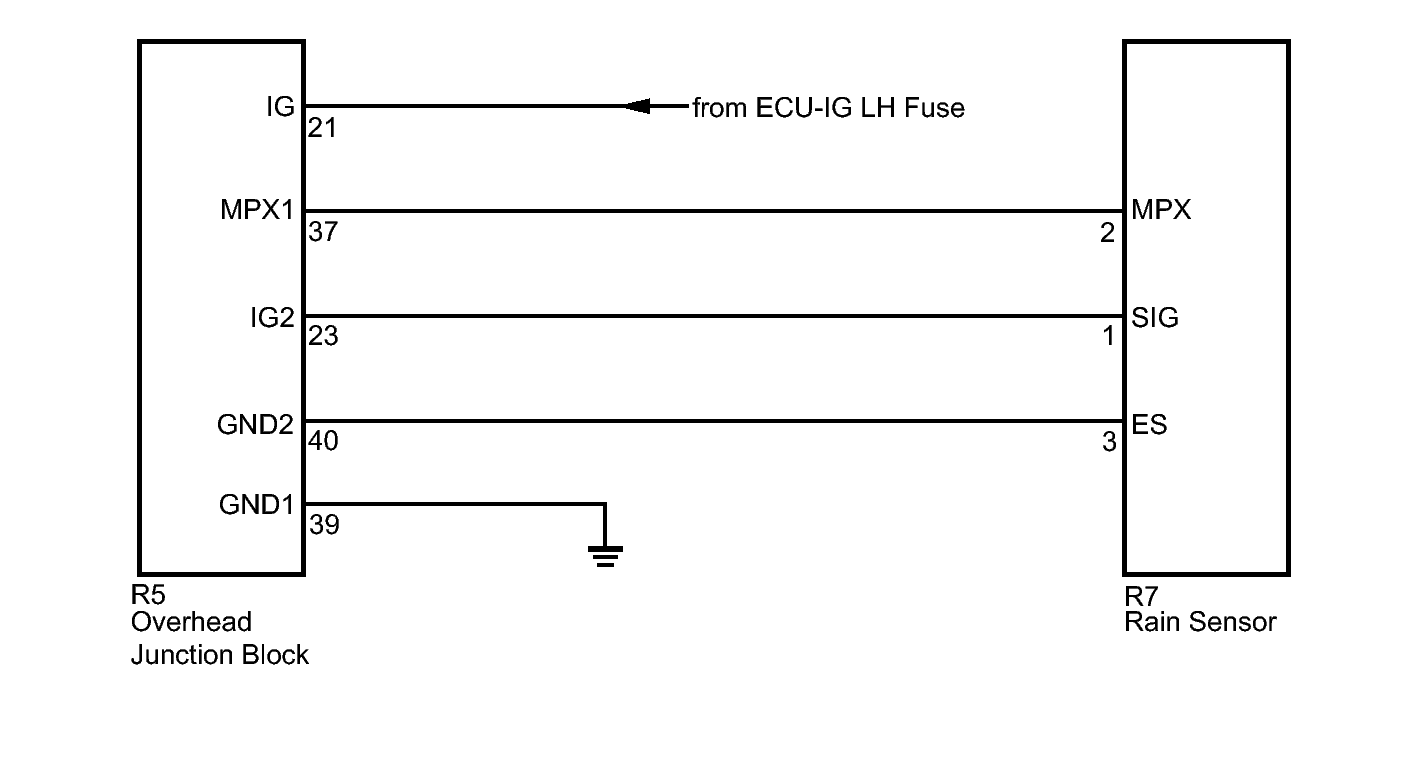

Fig 1: Identifying Rain Sensor Communication Wiring Diagram
GTY265092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
