Operation Check

INPUT SIGNAL CHECK

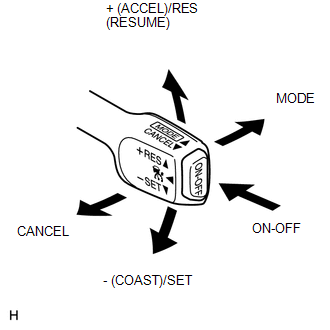

Fig 1: Checking Cruise Control Main Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Connect the Techstream to the DLC3.
2. Check the cruise control main switch using the Data List function in the Techstream (ON-OFF, CANCEL, - (COAST)/SET, + (ACCEL)/RES (RESUME), and MODE).
INSPECT MODE SWITCH

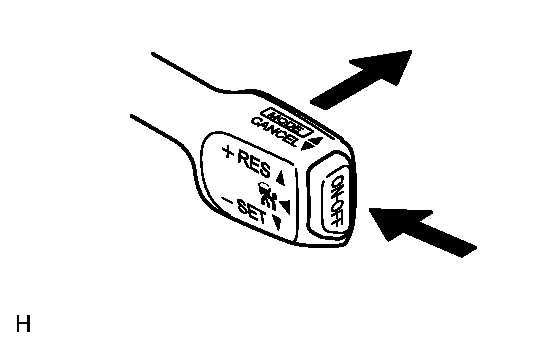

Fig 2: Inspecting Mode Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Turn the engine switch on (IG).
2. Turn the cruise control main switch on. Then push the main switch to MODE for 1 second or more to change to the constant speed control mode. Check that "NORM" is indicated on the display.

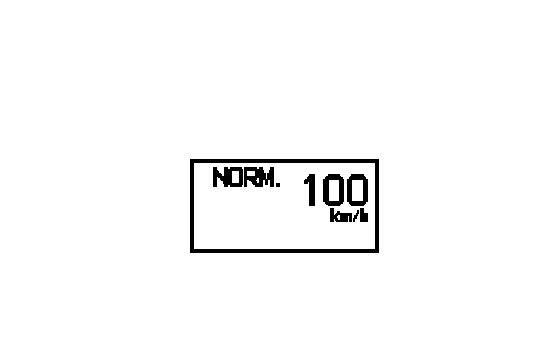

  Fig 3: Display Screen - NORM
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not push any other switches before pushing the main switch to MODE. If another switch is pushed, turn the main switch off and repeat the procedure above.

  HINT:

  If a malfunction is detected, turn the engine switch off and repeat the procedure above.
INSPECT CRUISE DISTANCE SWITCH ASSEMBLY
1. Turn the engine switch on (IG).
2. Turn the cruise control main switch on.
3. Turn on the cruise distance switch assembly.
4. Check that the indication of the vehicle-to-vehicle distance, which is shown on the multi-information display on the combination meter, changes from long to middle to short in that order.

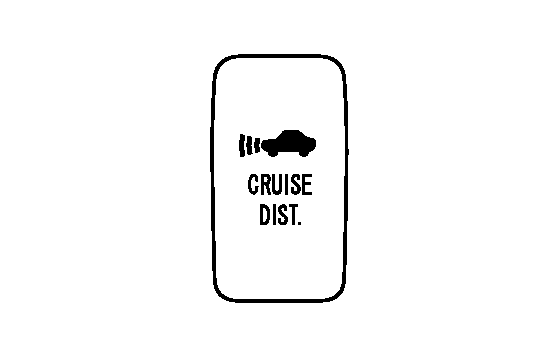

  Fig 4: Cruise Display Screen
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  The indication is automatically set to long each time the engine is started.
