Entry Lock And Unlock Switch: Components: Illustration

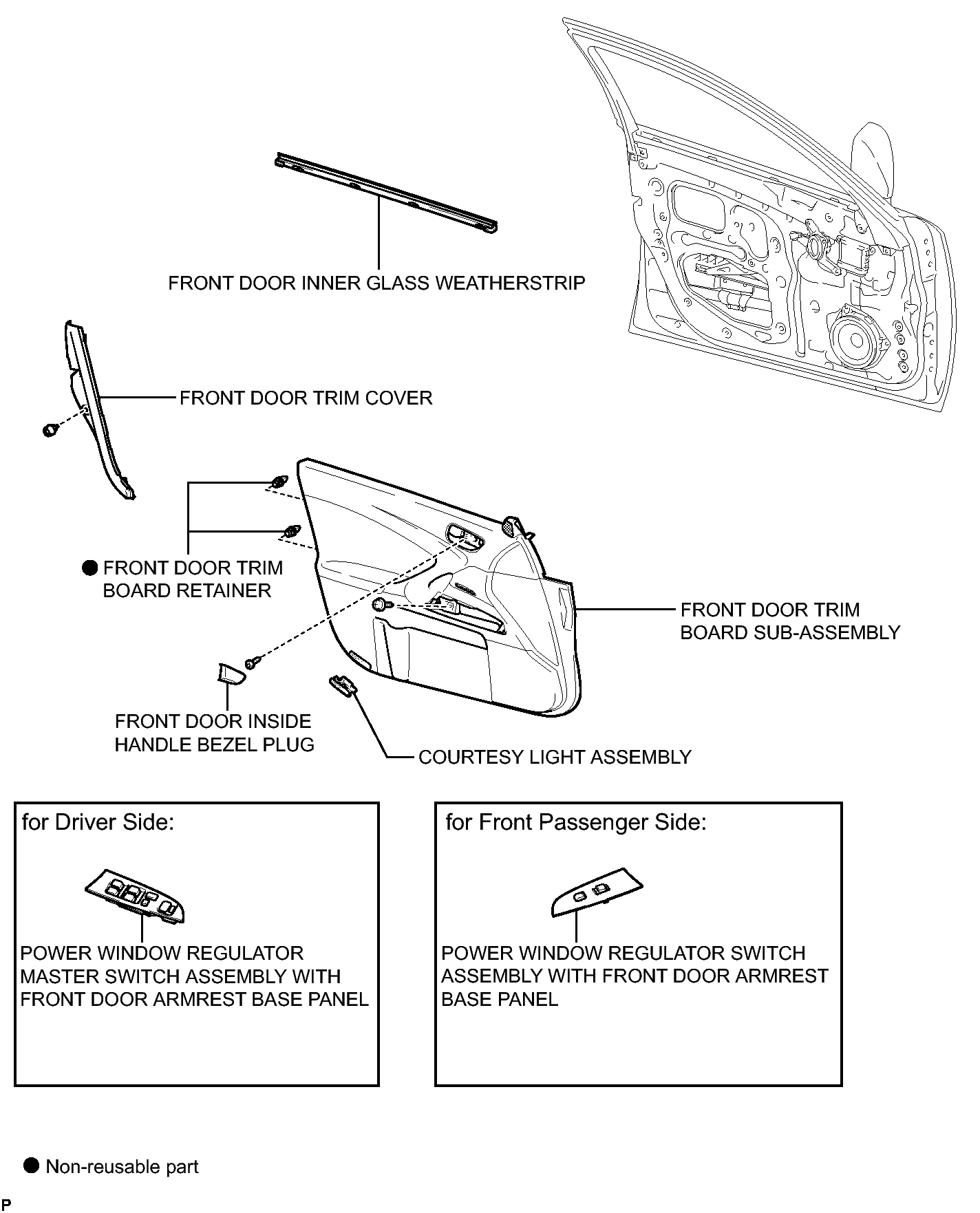

Fig 1: Identifying Entry Lock And Unlock Switch Replacement Components (1 Of 2)
GTY130675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

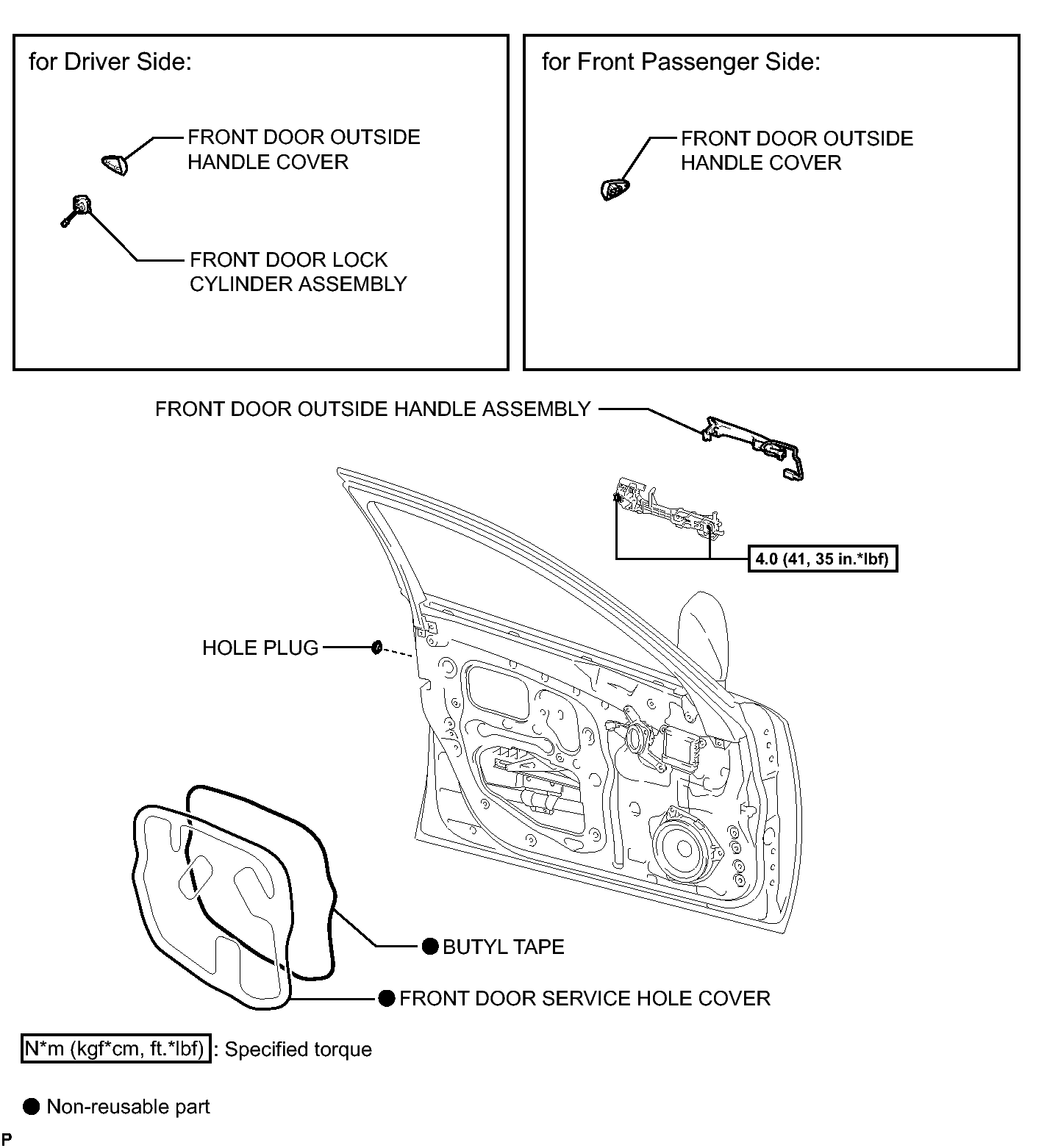

Fig 1: Identifying Entry Lock And Unlock Switch Replacement Components With Torque Specifications (2 Of 2)
GTY115273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
