Personal Light Assembly: Inspection: Inspection

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT PERSONAL LIGHT ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.

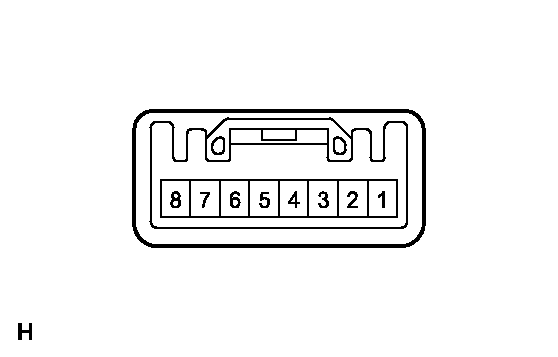

      Fig 1: View Of Personal Light Connector Terminals Identification
      GTY206784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Resistance

      Tester connection Condition Specified condition
      4 - 2 OFF 10 kΩ or higher
      4 - 2 Driver side personal light switch ON Continuity
      4 - 2 Passenger side personal light switch ON Continuity
