Radio Receiver Power Source Circuit (TO 12/2010): Wiring Diagram

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

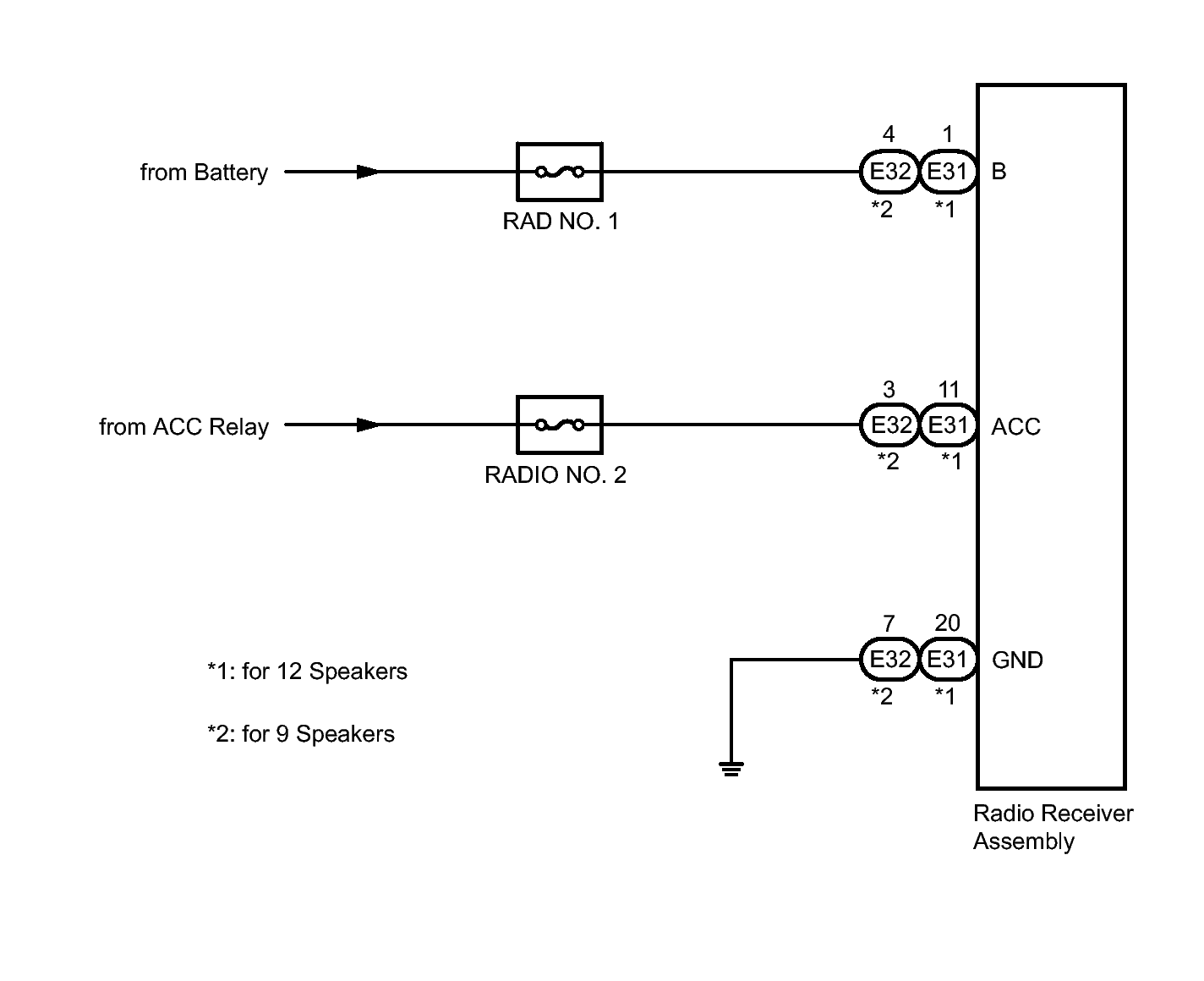

Fig 1: Radio Receiver Power Source Circuit Diagram
GTY298007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
