Steering Lock Motor Drive Power Circuit: Wiring Diagram

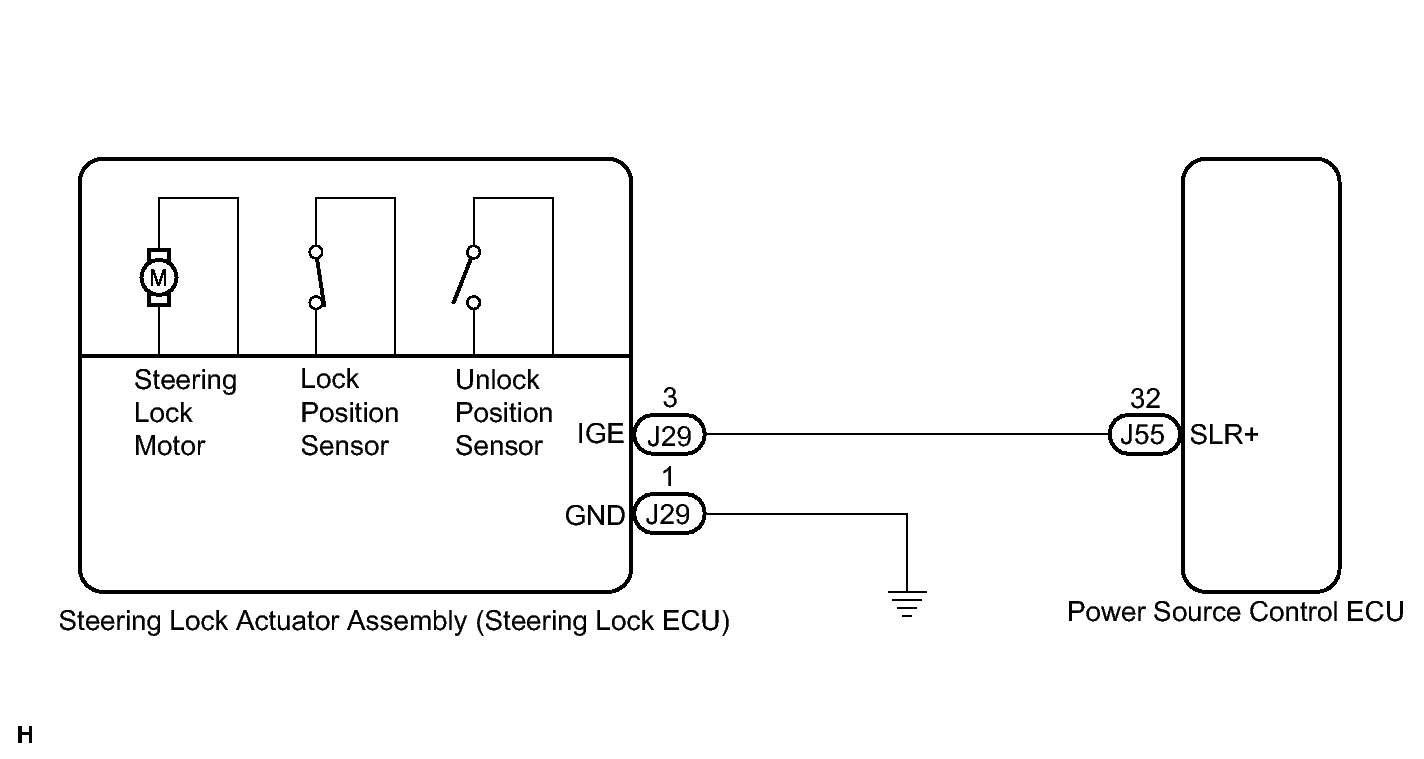

Fig 1: Identifying Steering Lock Motor - Wiring Diagram
GTY113526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
