Cruise Control Main Switch: Installation: Installation

INSTALL CRUISE CONTROL MAIN SWITCH ASSEMBLY
1. Install the switch.

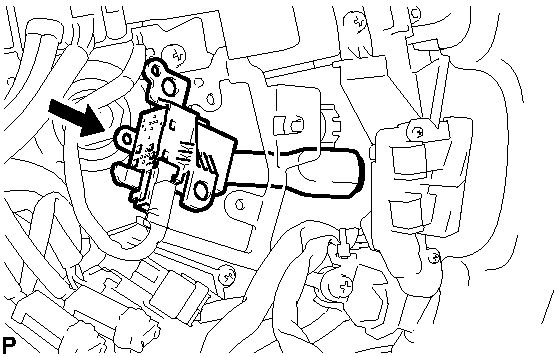

  Fig 1: Installing Cruise Control Main Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 2 screws.

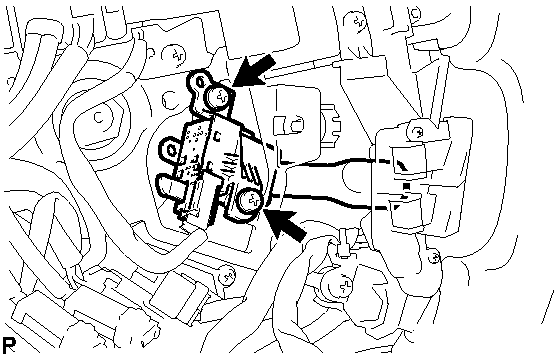

  Fig 2: Locating Cruise Control Main Switch Assembly Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the connector and clamp.

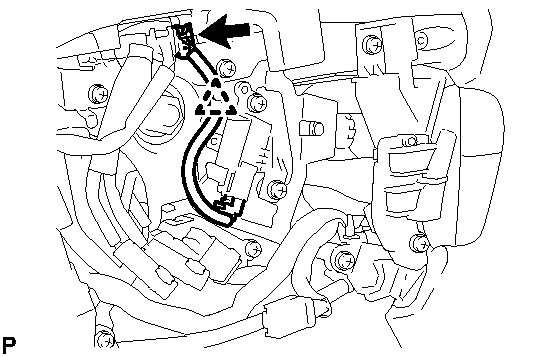

  Fig 3: Locating Connector & Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEERING PAD . Refer to INSTALLATION - Step 1
INSTALL SWITCH AND VOLUME CASE . Refer to INSTALLATION - Step 2
INSTALL NO. 2 STEERING WHEEL COVER LOWER . Refer to INSTALLATION - Step 3
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
INSTALL COWL TOP VENTILATOR LOUVER RH . Refer to INSTALLATION - Step 11
CHECK SRS WARNING LIGHT
1. Check the SRS warning light. Refer to DIAGNOSIS SYSTEM .
