System Diagram

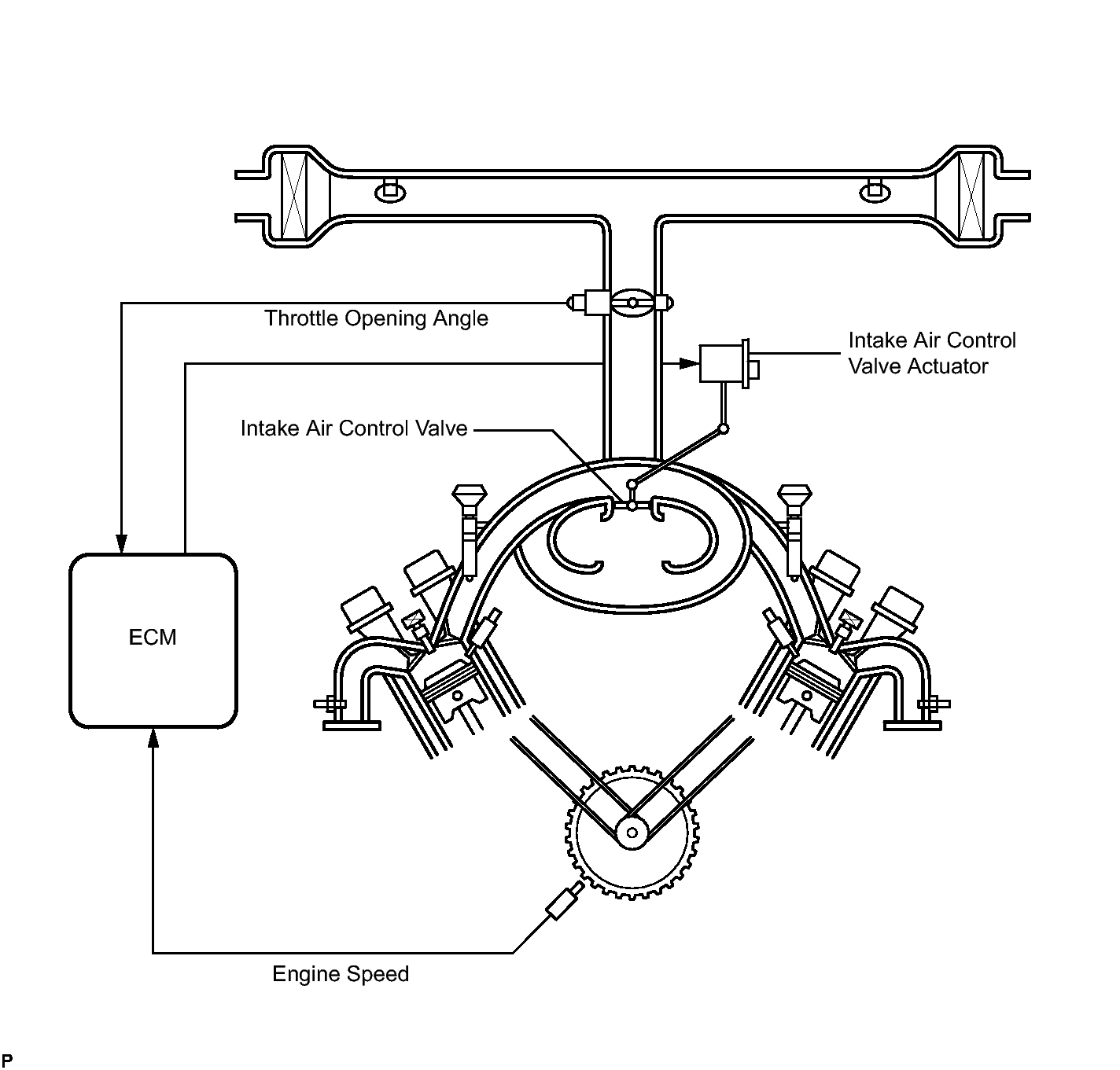

Fig 1: Intake - System Diagram
GTY288272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

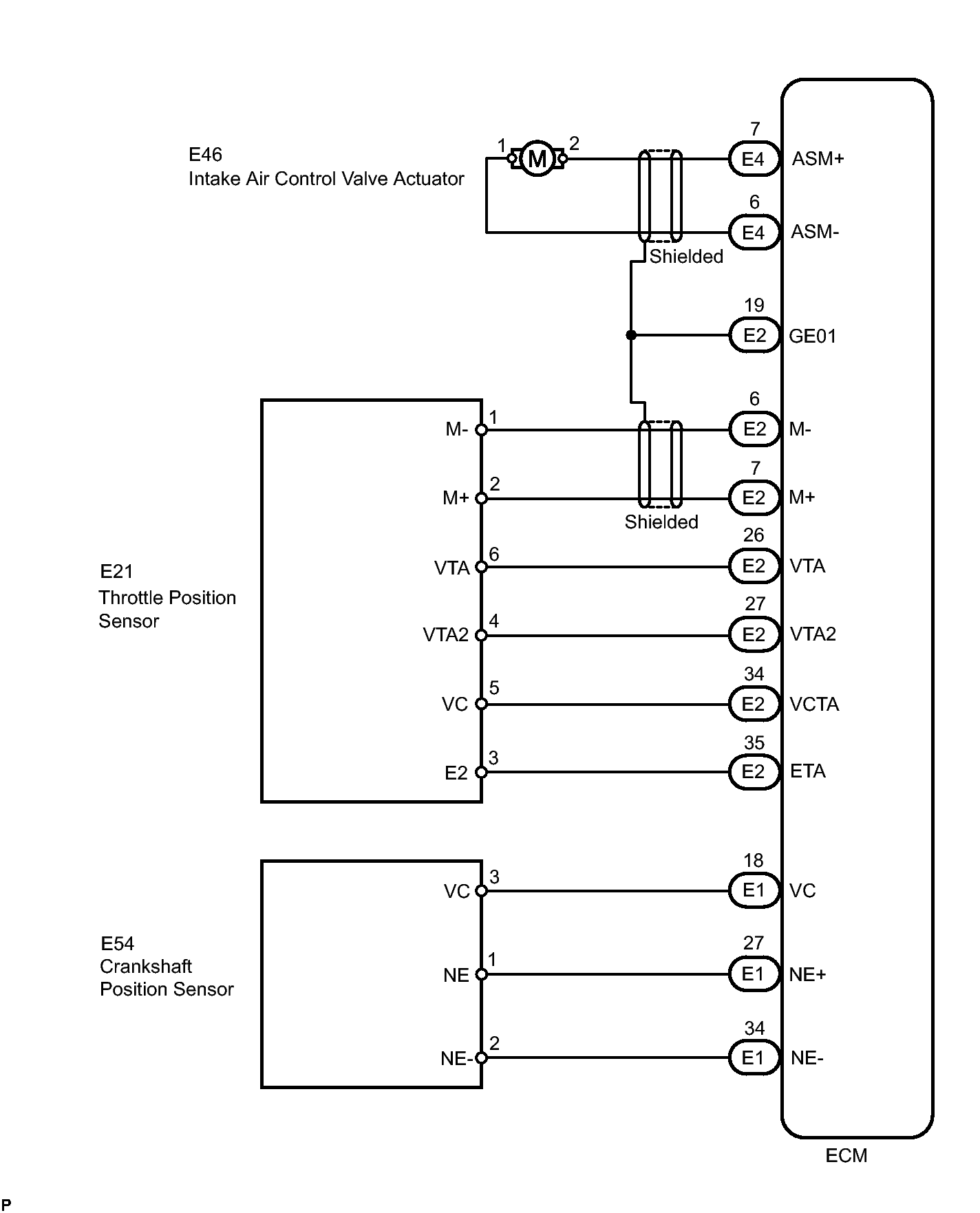

Fig 2: Intake System - Wiring Diagram
GTY269312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
