For 2WD: Illustration

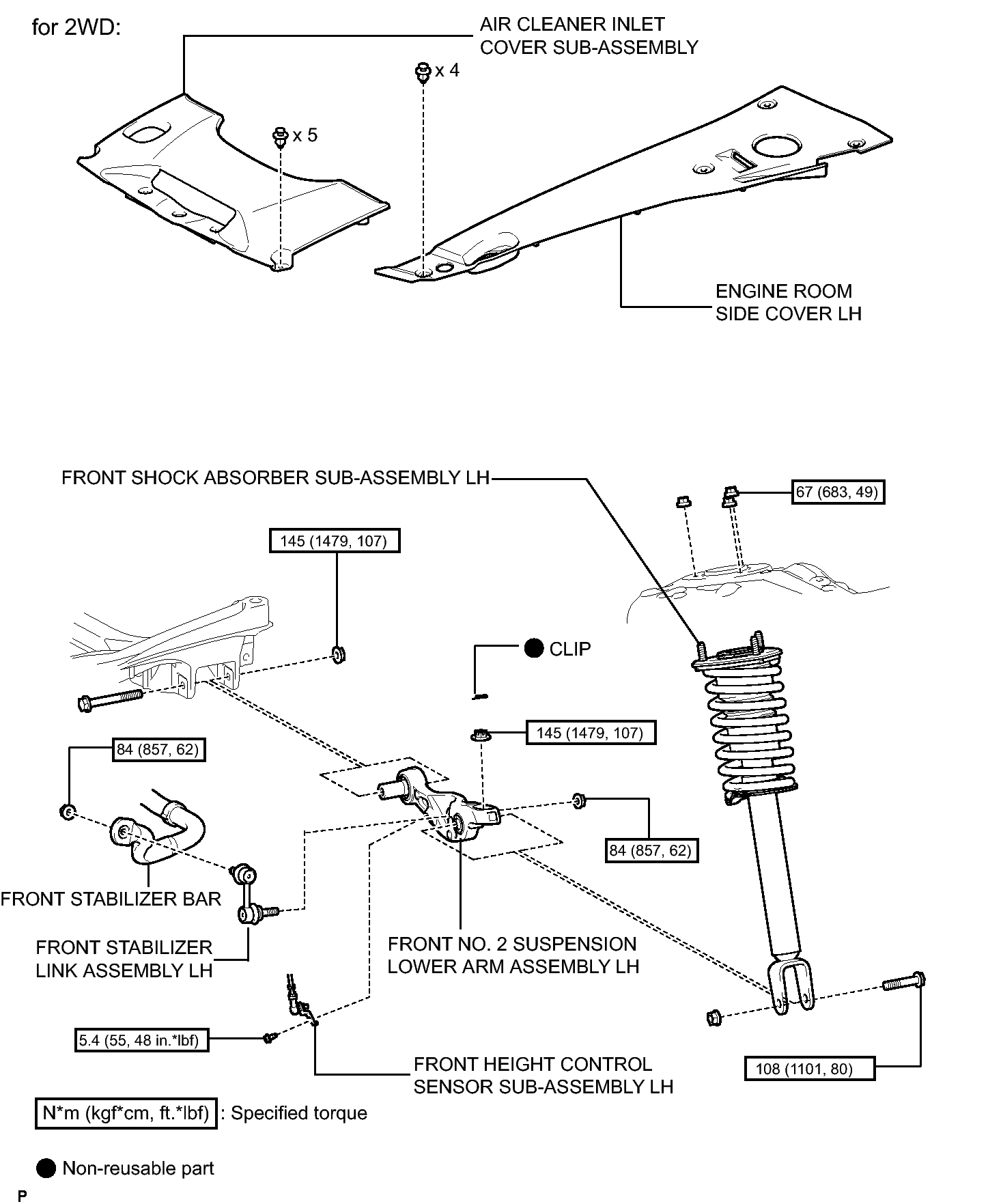

Fig 1: Identifying Front Shock Absorber (2WD) Replacement Components With Torque Specifications (1 Of 3)
GTY349329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

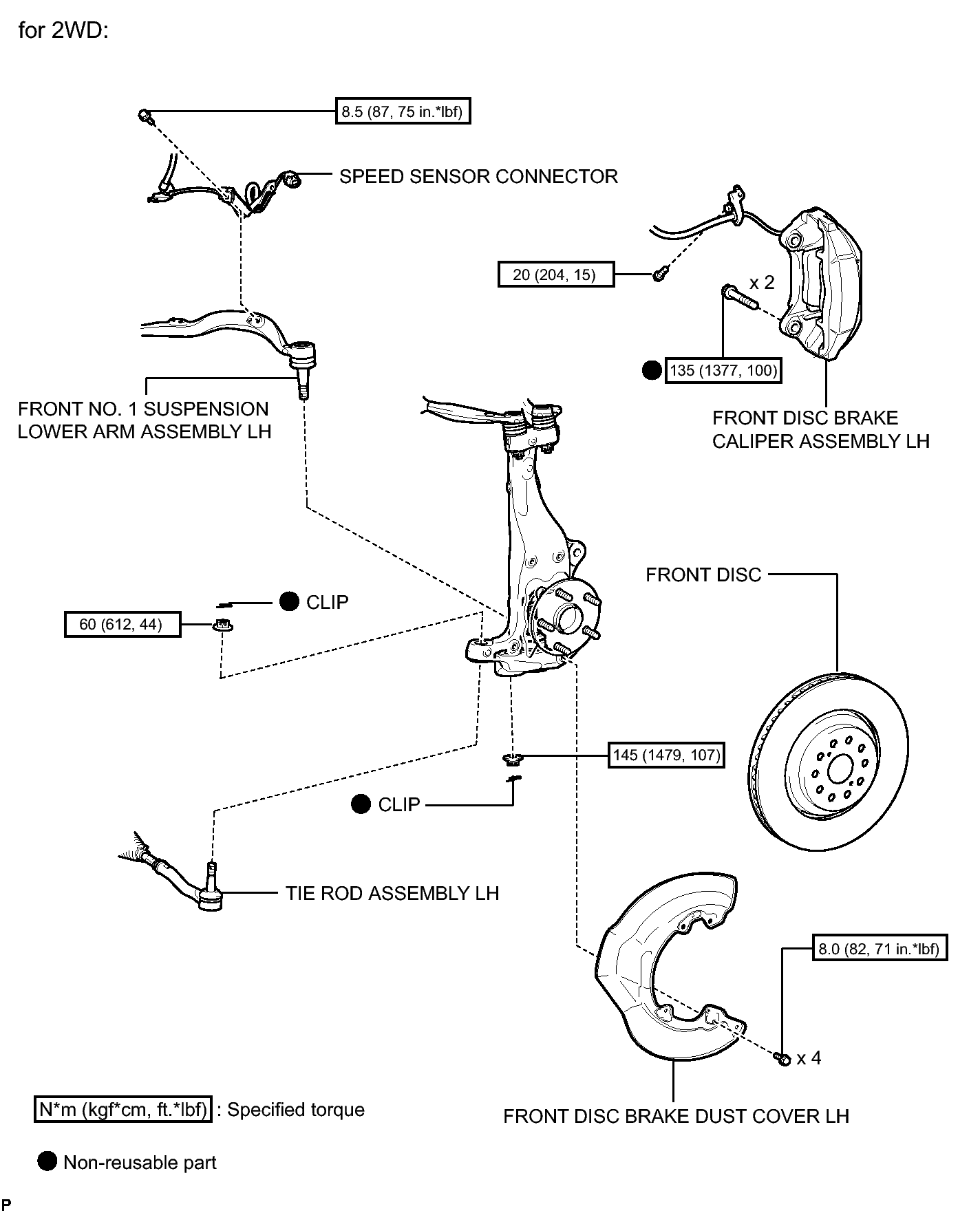

Fig 1: Identifying Front Shock Absorber (2WD) Replacement Components With Torque Specifications (2 Of 3)
GTY350605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

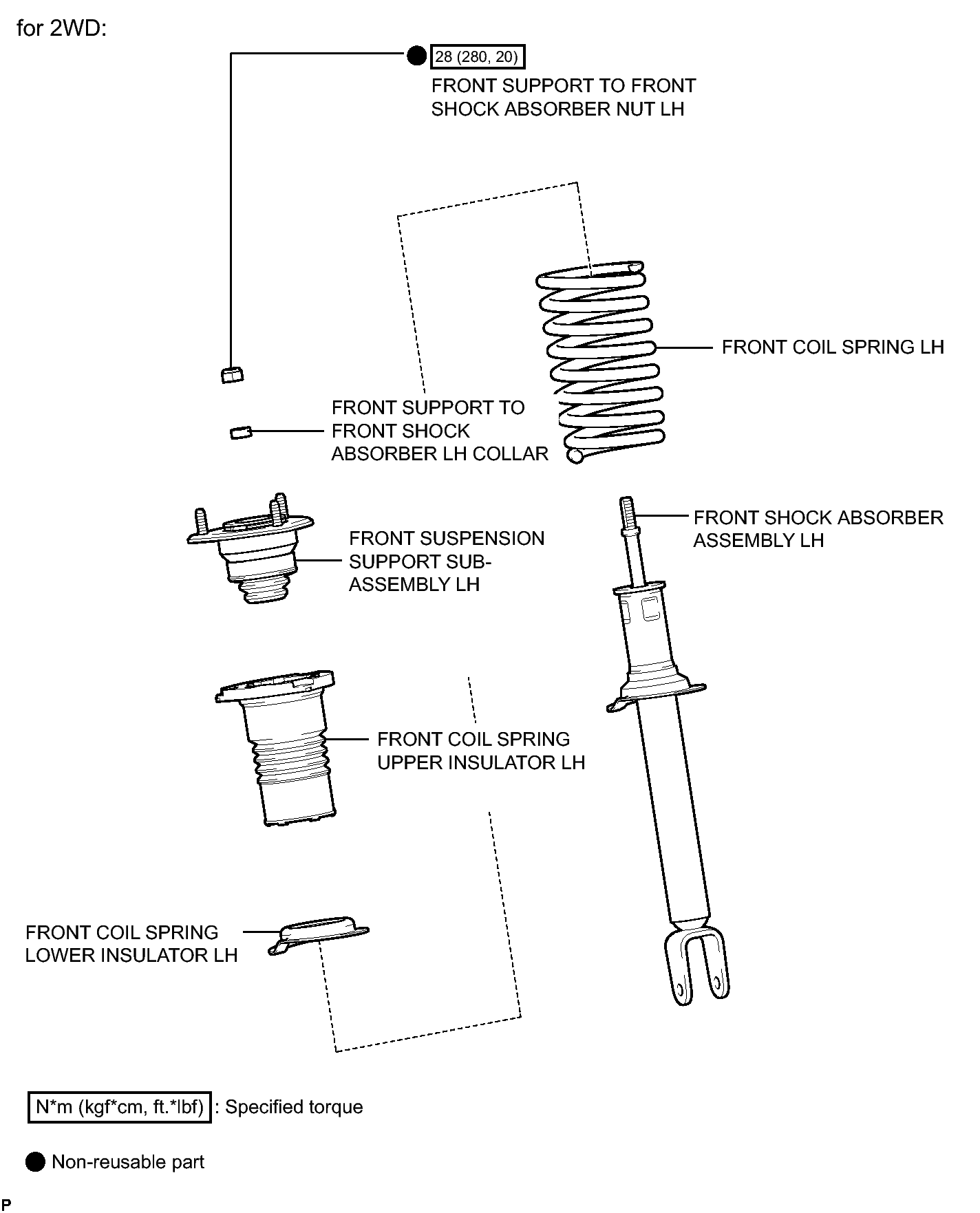

Fig 1: Identifying Front Shock Absorber (2WD) Replacement Components With Torque Specifications (3 Of 3)
GTY349340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
