Road Test

  1. INSPECT SET SWITCH

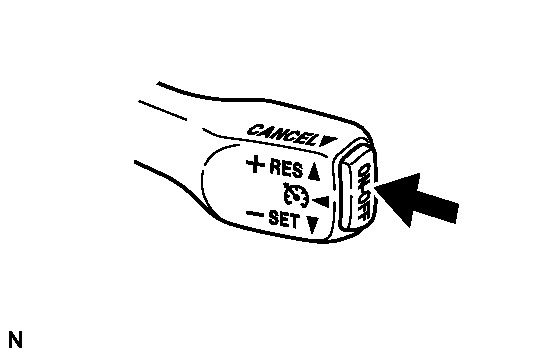

      Fig 1: Pressing Cruise Control Main Switch ON
      GTY151410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Push the cruise control switch ON.
    2. Drive the vehicle at a desired speed (between approximately 40 km/h and 200 km/h [25 mph and 125 mph]).

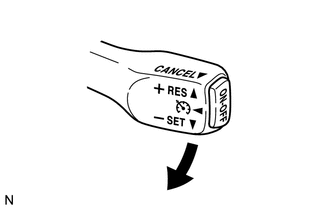

      3. Fig 2: Pressing Control Switch To -/SET
      GTY151411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Press the main switch to the -/SET.
    4. After releasing the switch, check that the vehicle cruises at the desired speed.
  2. INSPECT "+" SWITCH
      Fig 3: Pressing Cruise Control Main Switch ON
      GTY151410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Push the cruise control switch button to ON.
    2. Drive the vehicle at a desired speed (between approximately 40 km/h and 200 km/h [25 mph and 125 mph]).
      3. Fig 4: Pressing Control Switch To -/SET
      GTY151411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Press the main switch to the -/SET.
    4. Check that the vehicle speed increases while the main switch is pulled up to +/RES, and that the vehicle cruises at the set speed when the switch is released.

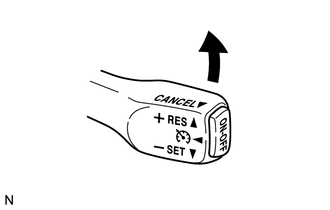

      5. Fig 5: Pressing Control Switch To +/RES
      GTY123665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Momentarily press the main switch upward to +/RES and then immediately release it. Check that the vehicle speed increases by about 1.6 km/h (1.0 mph) (Tap-up function).
  3. INSPECT "-" SWITCH
      Fig 6: Pressing Cruise Control Main Switch ON
      GTY151410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Push the cruise control switch button to ON.
    2. Drive the vehicle at a desired speed (between approximately 40 km/h and 200 km/h [25 mph and 125 mph]).
      3. Fig 7: Pressing Control Switch To -/SET
      GTY151411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Press the main switch to the -/SET.
    4. Check that the vehicle speed decreases while the main switch is pushed down to -/SET, and the vehicle cruises at the set speed when the switch is released.
    5. Momentarily press the main switch downward to -/SET, and then immediately release it. Check that the vehicle speed decreases by about 1.6 km/h (1.0 mph) (Tap-down function).
  4. INSPECT CANCEL SWITCH
      Fig 8: Pressing Cruise Control Main Switch ON
      GTY151410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Push the cruise control switch button to ON.
    2. Drive the vehicle at a desired speed (between approximately 40 km/h and 200 km/h [25 mph and 125 mph]).
      3. Fig 9: Pressing Control Switch To -/SET
      GTY151411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Press the main switch to the -/SET.
    4. When performing one of the following, check that the cruise control system is canceled and that the normal driving mode is reset.
      • Depress the brake pedal
      • Pushing the cruise control switch OFF
      • Turn the cruise main switch to CANCEL
      • Moving the shift lever to any position except D or S (8th, 7th, 6th, 5th or 4th gear)
      • w/ Shift Paddle Switch:

        The transmission is changed from 4th gear to 3rd, 2nd or 1st gear with the shift paddle switch while the shift lever is in D or M.

  5. INSPECT RES (RESUME) SWITCH
      Fig 10: Pressing Cruise Control Main Switch ON
      GTY151410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Push the cruise control switch button to ON.
    2. Drive the vehicle at a desired speed (between approximately 40 km/h and 200 km/h [25 mph and 125 mph]).
      3. Fig 11: Pressing Control Switch To -/SET
      GTY151411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Press the main switch to the -/SET.

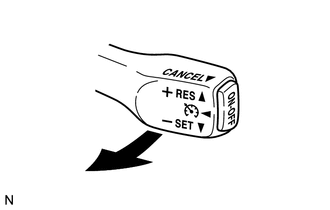

      4. Fig 12: Pulling Cruise Control Switch To CANCEL
      GTY123650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. When performing one of the following, check that the cruise control system is canceled and that the normal driving mode is reset.
      • Depress the brake pedal
      • Pushing the cruise control switch OFF
      • Moving the shift lever to any position except D or S (8th, 7th, 6th, 5th or 4th gear)
      • w/ Shift Paddle Switch:

        The transmission is changed from 4th gear to 3rd, 2nd or 1st gear with the shift paddle switch while the shift lever is in D or M.

      5. Fig 13: Pressing Control Switch To +/RES
      GTY123665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. After the main switch is pulled up to +/RES at a driving speed of more than 40 km/h (25 mph), check that the vehicle restores the speed before the cancellation.
