AIR FUEL RATIO SENSOR (for AWD): Removal: Removal

  1. REMOVE ENGINE AND TRANSMISSION
    1. Remove the engine and transmission. Refer to REMOVAL .
  2. REMOVE AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)
    1. Disconnect the air fuel ratio sensor connector.

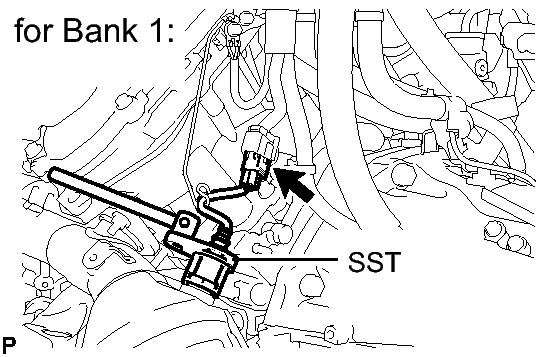

      Fig 1: Disconnecting The Air Fuel Ratio Sensor Connector
      GTY281488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the air fuel ratio sensor from the exhaust manifold LH.
      • SST: 09224-00010
  3. REMOVE AIR FUEL RATIO SENSOR NO. 2 (for Bank 2 Sensor 1)
    1. Disconnect the air fuel ratio sensor connector.

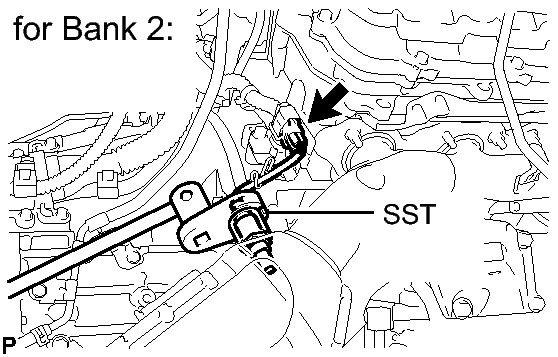

      Fig 2: Removing Air Fuel Ratio Sensor From Exhaust Manifold RH
      GTY288440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the air fuel ratio sensor from the exhaust manifold RH.
      • SST: 09224-00010
