Installation (To 12/2010): Installation

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL MULTI-MEDIA INTERFACE ECU ASSEMBLY
    1. Engage the guide as shown in the illustration.

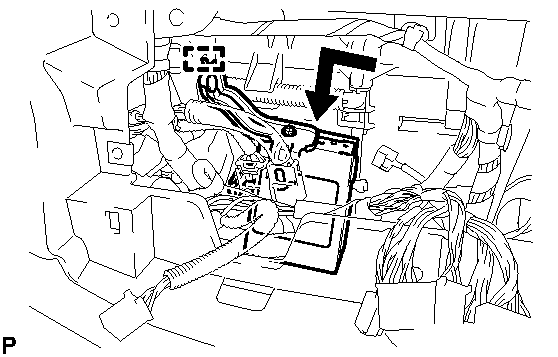

      Fig 1: Installing Multi-Media Interface ECU Assembly
      GTY294994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the multi-media interface ECU assembly with the 2 nuts.
    3. Connect the 3 connectors.
    4. Engage the clamp.
  2. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 12
  3. INSTALL SEAT HEATER SWITCH (w/ Seat Heater System)  . Refer to INSTALLATION - Step 13
  4. INSTALL POSITION INDICATOR HOUSING ASSEMBLY  . Refer to INSTALLATION - Step 14
  5. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY  . Refer to INSTALLATION - Step 15
  6. INSTALL INTEGRATION CONTROL AND PANEL WITH NAVIGATION RECEIVER ASSEMBLY (w/ Navigation System)  . Refer to INSTALLATION - Step 4
  7. INSTALL INTEGRATION CONTROL AND PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)  Refer to step  4
  8. INSTALL CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL  . Refer to INSTALLATION - Step 37
