Installation (To 12/2010): Installation

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL STEREO JACK ADAPTER ASSEMBLY
    1. Engage the 2 claws and install the stereo jack adapter assembly.

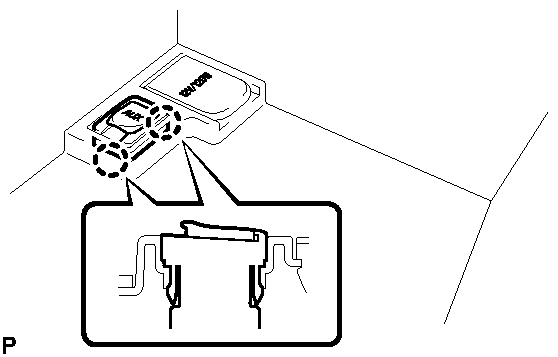

      Fig 1: Removing/Installing Stereo Jack Adapter Assembly
      GTY208367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL CONSOLE BOX ASSEMBLY  . Refer to INSTALLATION - Step 10
  3. INSTALL CONSOLE BOX CARPET  . Refer to INSTALLATION - Step 11
  4. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 12
  5. INSTALL SEAT HEATER SWITCH (w/ Seat Heater System)  . Refer to INSTALLATION - Step 13
  6. INSTALL POSITION INDICATOR HOUSING ASSEMBLY  . Refer to INSTALLATION - Step 14
  7. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY  . Refer to INSTALLATION - Step 15
