Audio System and LEXUS Navigation System: Notes

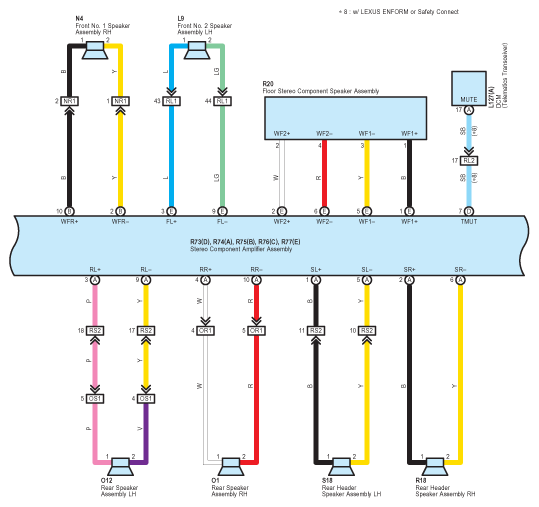

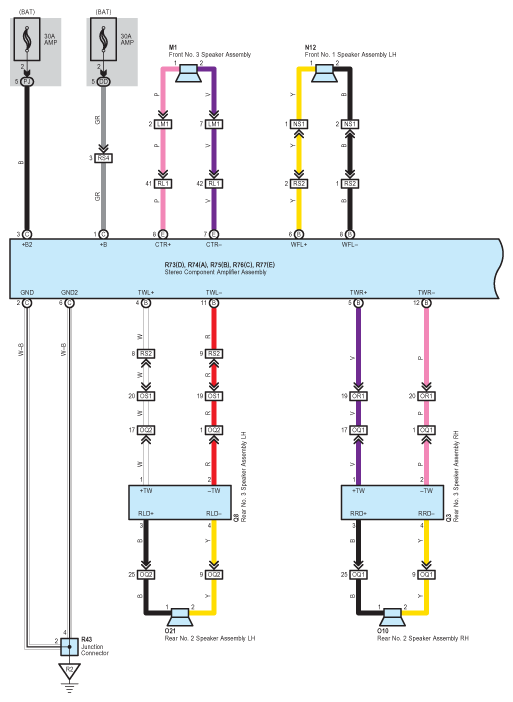

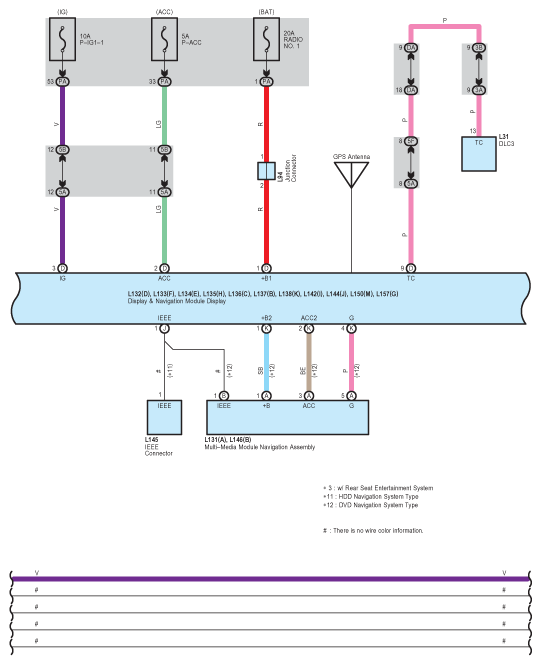

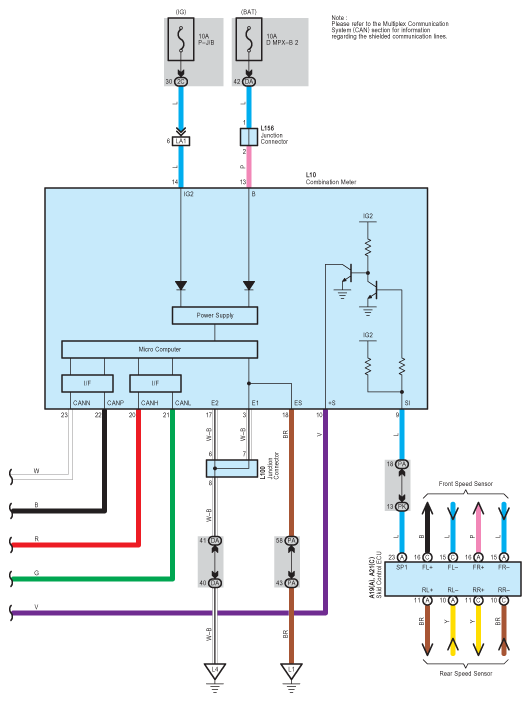

Fig 1: Audio System And Lexus Navigation System - Circuit Diagram (1 Of 24)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

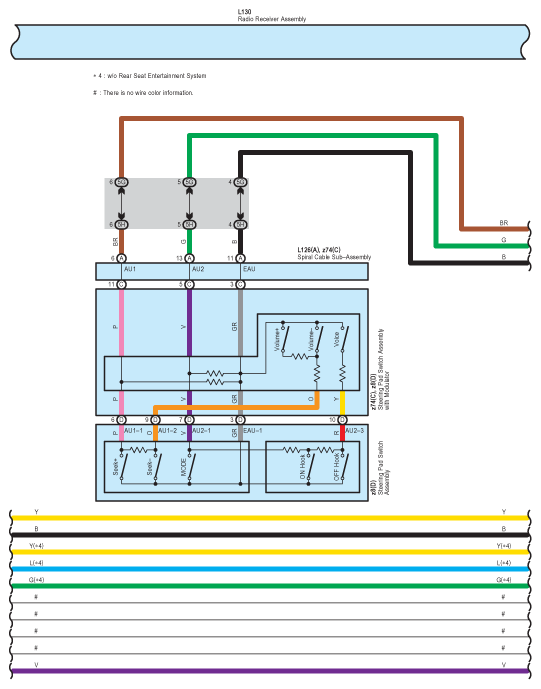

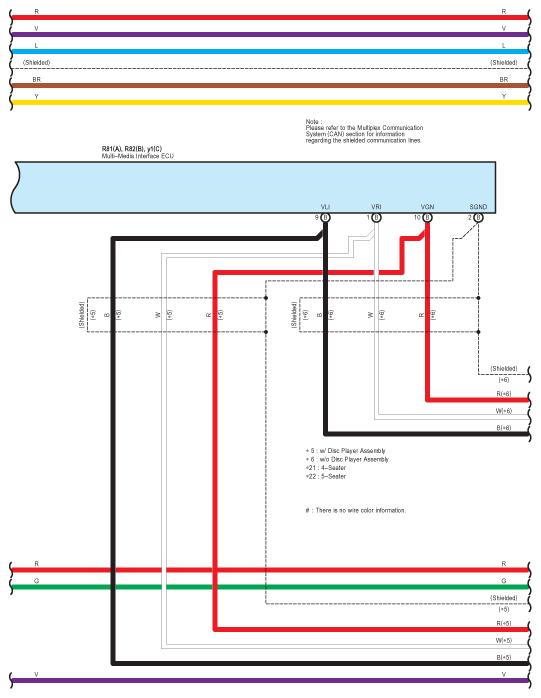

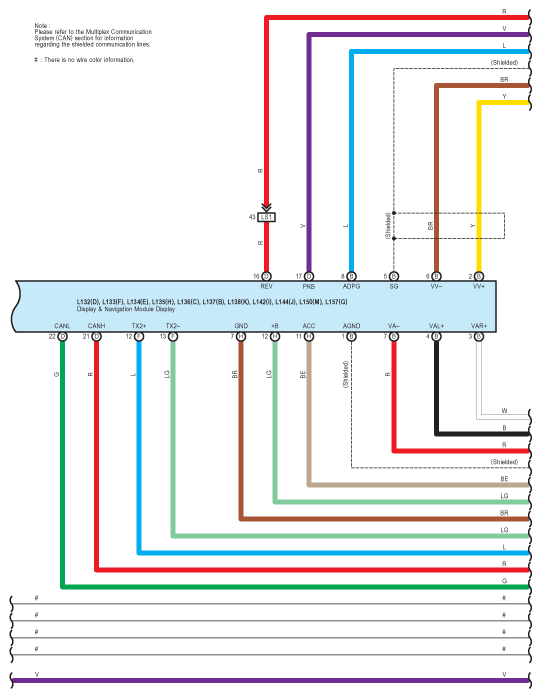

Fig 2: Audio System And Lexus Navigation System - Circuit Diagram (2 Of 24)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

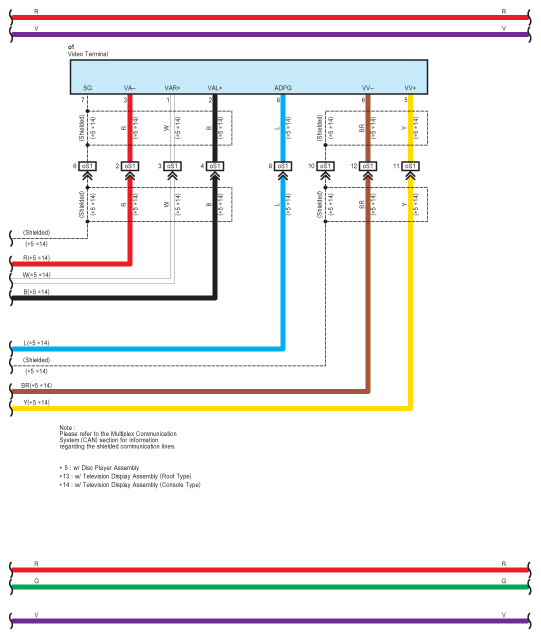

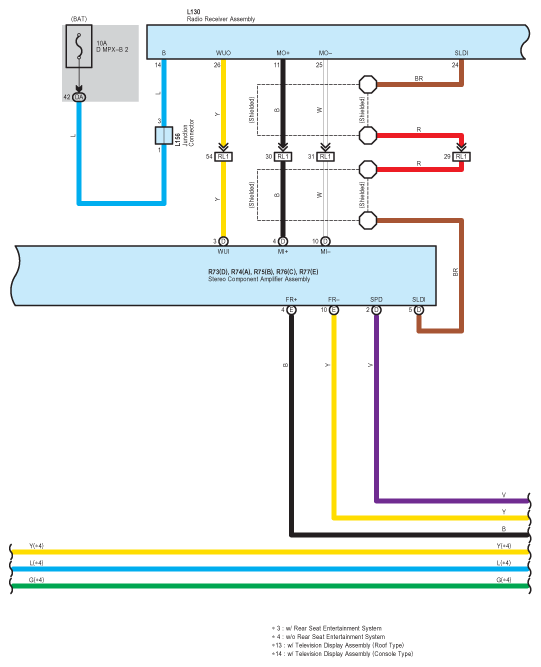

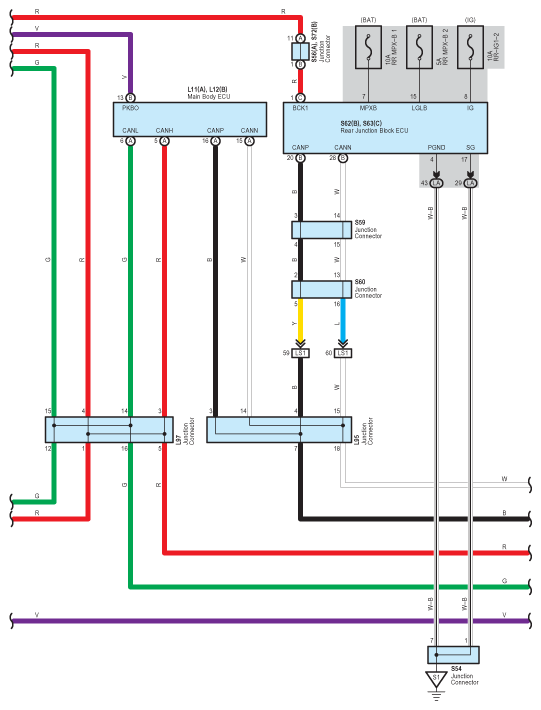

Fig 3: Audio System And Lexus Navigation System - Circuit Diagram (3 Of 24)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

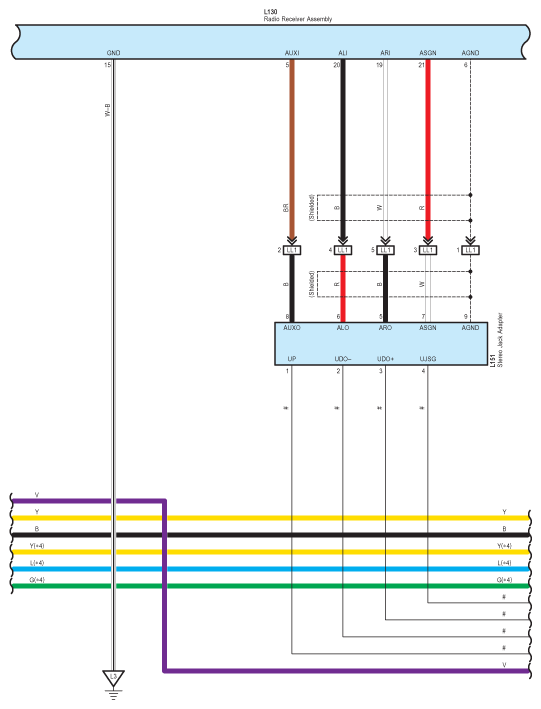

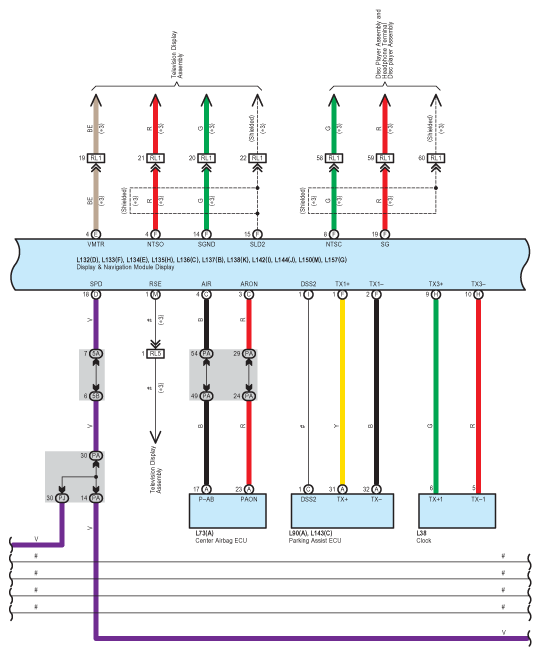

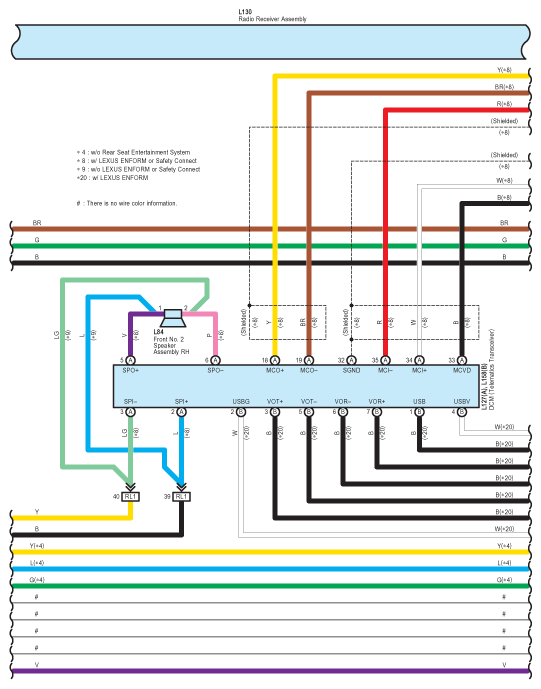

Fig 4: Audio System And Lexus Navigation System - Circuit Diagram (4 Of 24)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

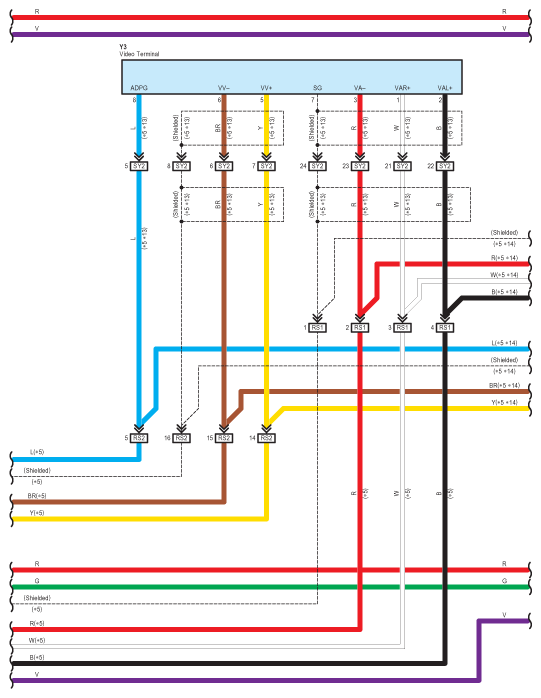

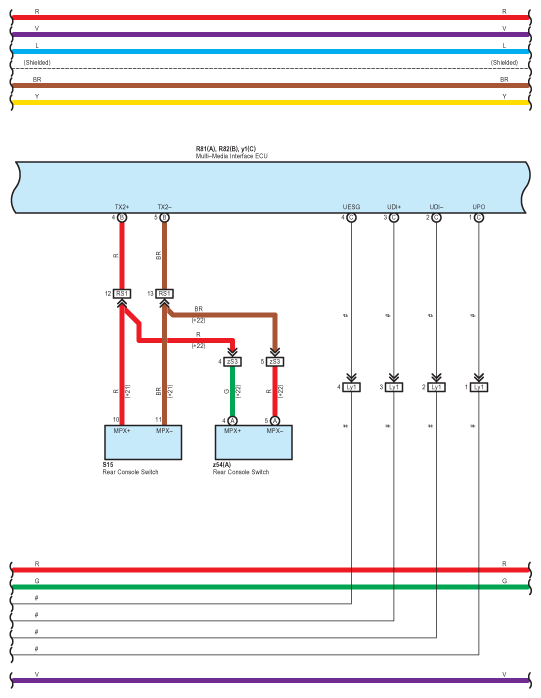

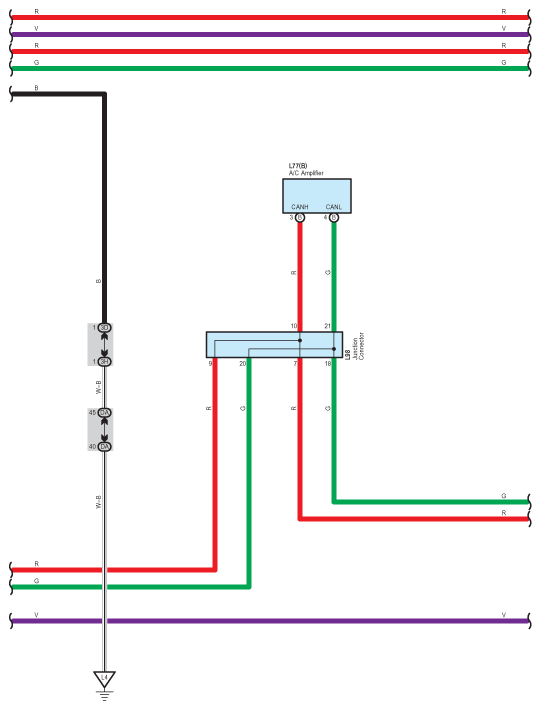

Fig 5: Audio System And Lexus Navigation System - Circuit Diagram (5 Of 24)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

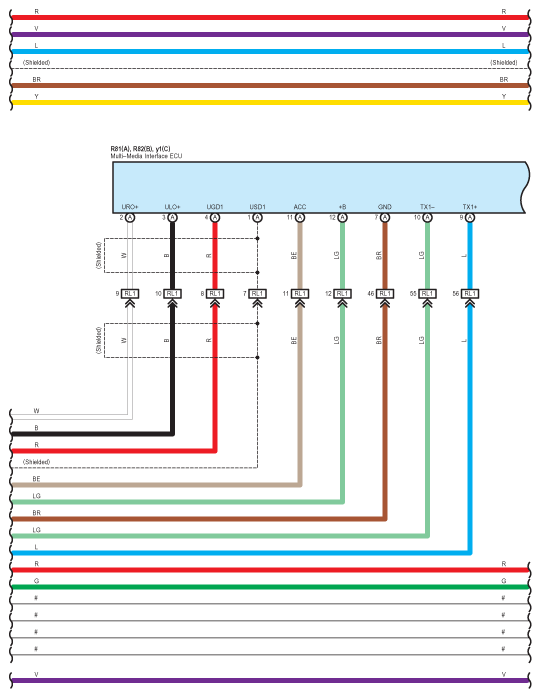

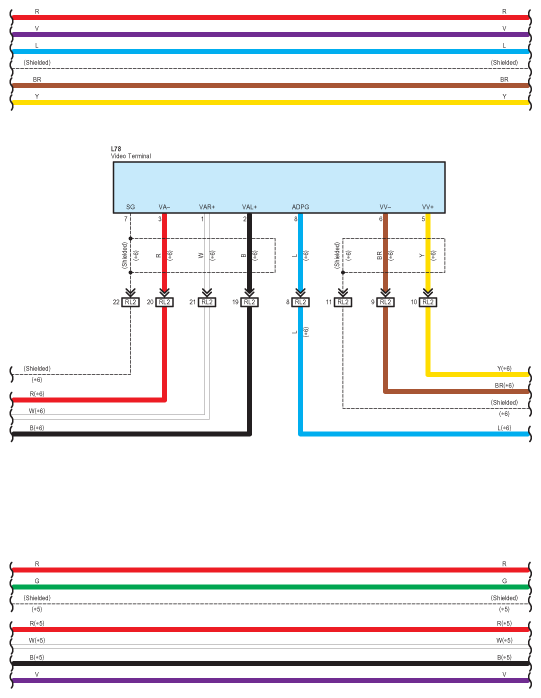

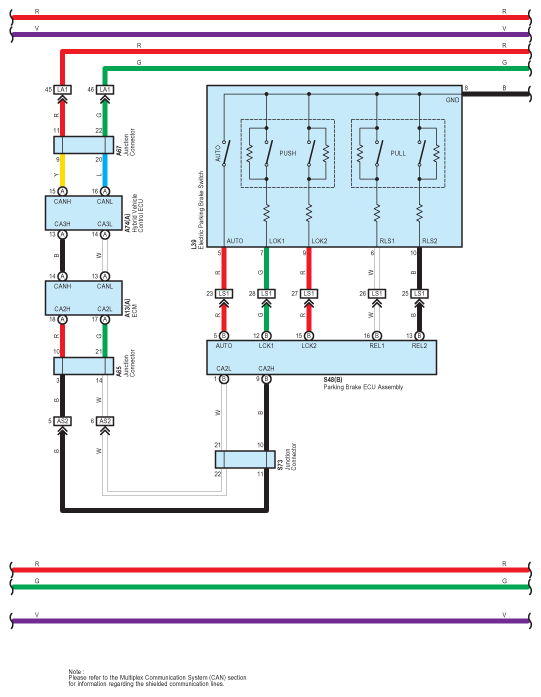

Fig 6: Audio System And Lexus Navigation System - Circuit Diagram (6 Of 24)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

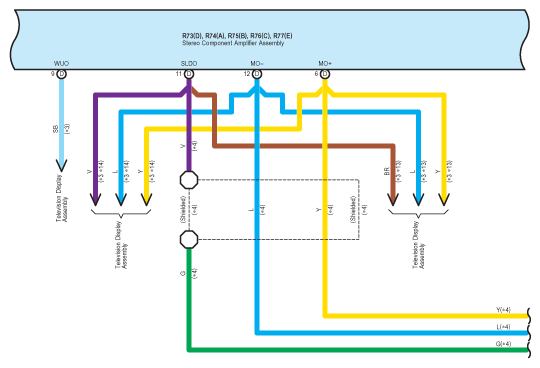

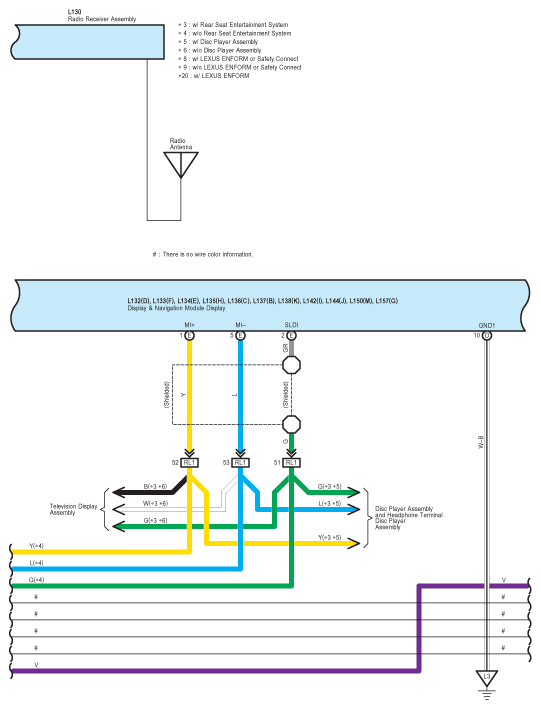

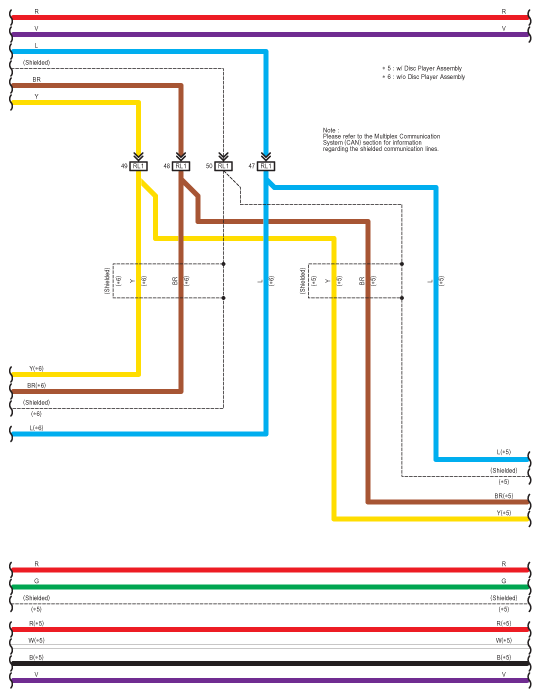

Fig 7: Audio System And Lexus Navigation System - Circuit Diagram (7 Of 24)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

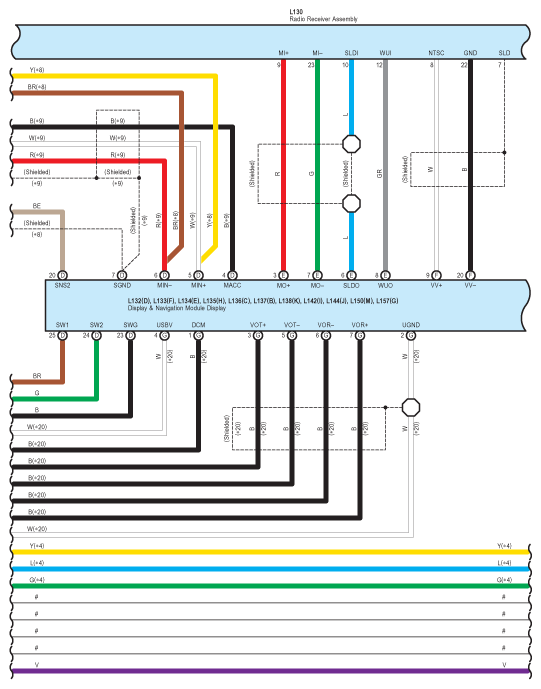

Fig 8: Audio System And Lexus Navigation System - Circuit Diagram (8 Of 24)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 9: Audio System And Lexus Navigation System - Circuit Diagram (9 Of 24)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 10: Audio System And Lexus Navigation System - Circuit Diagram (10 Of 24)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 11: Audio System And Lexus Navigation System - Circuit Diagram (11 Of 24)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 12: Audio System And Lexus Navigation System - Circuit Diagram (12 Of 24)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 13: Audio System And Lexus Navigation System - Circuit Diagram (13 Of 24)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 14: Audio System And Lexus Navigation System - Circuit Diagram (14 Of 24)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 15: Audio System And Lexus Navigation System - Circuit Diagram (15 Of 24)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 16: Audio System And Lexus Navigation System - Circuit Diagram (16 Of 24)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 17: Audio System And Lexus Navigation System - Circuit Diagram (17 Of 24)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 18: Audio System And Lexus Navigation System - Circuit Diagram (18 Of 24)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 19: Audio System And Lexus Navigation System - Circuit Diagram (19 Of 24)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 20: Audio System And Lexus Navigation System - Circuit Diagram (20 Of 24)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 21: Audio System And Lexus Navigation System - Circuit Diagram (21 Of 24)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 22: Audio System And Lexus Navigation System - Circuit Diagram (22 Of 24)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 23: Audio System And Lexus Navigation System - Circuit Diagram (23 Of 24)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 24: Audio System And Lexus Navigation System - Circuit Diagram (24 Of 24)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
