Ground Point: Notes

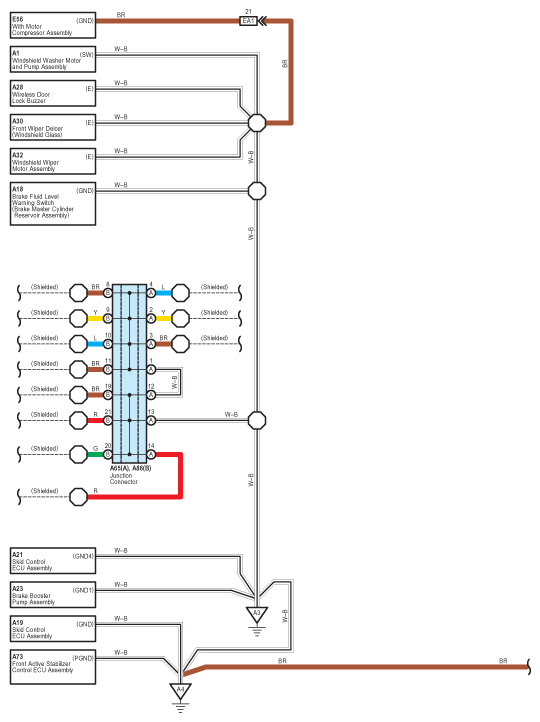

Fig 1: Ground Point - Circuit Diagram (1 Of 15)

G07566366

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

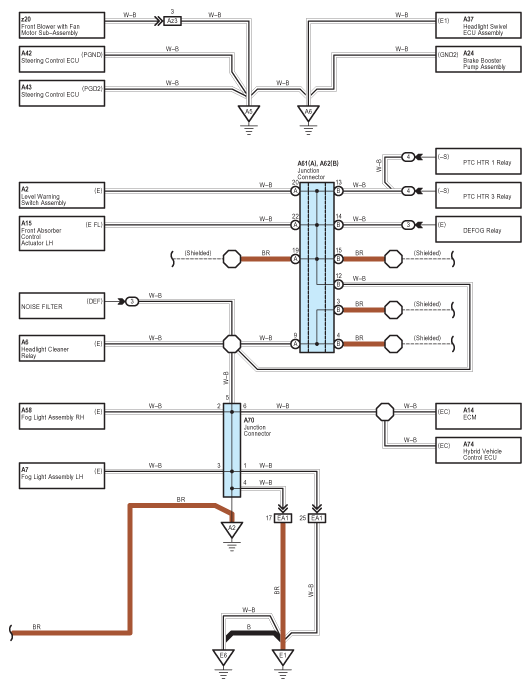

Fig 2: Ground Point - Circuit Diagram (2 Of 15)

G07566367

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

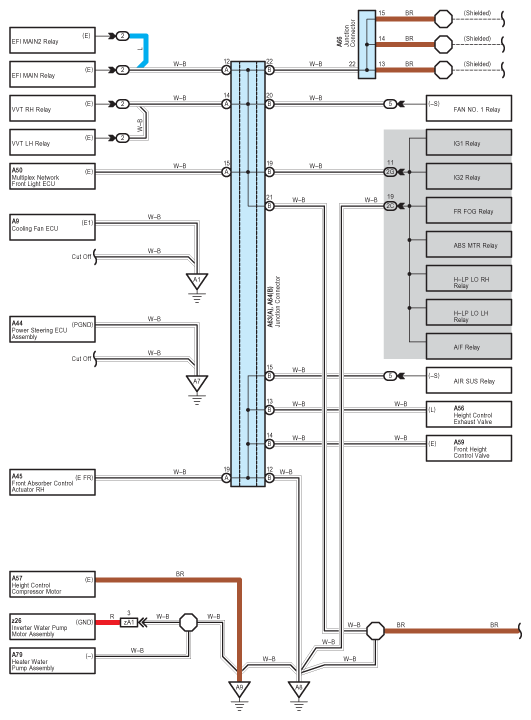

Fig 3: Ground Point - Circuit Diagram (3 Of 15)

G07566368

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

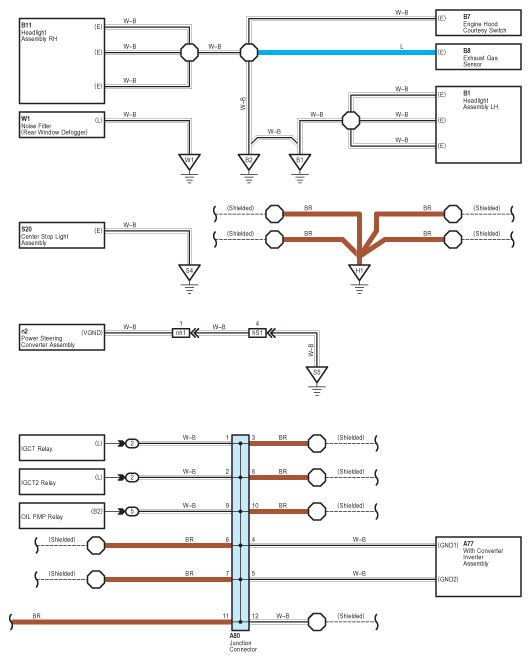

Fig 4: Ground Point - Circuit Diagram (4 Of 15)

G07566369

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

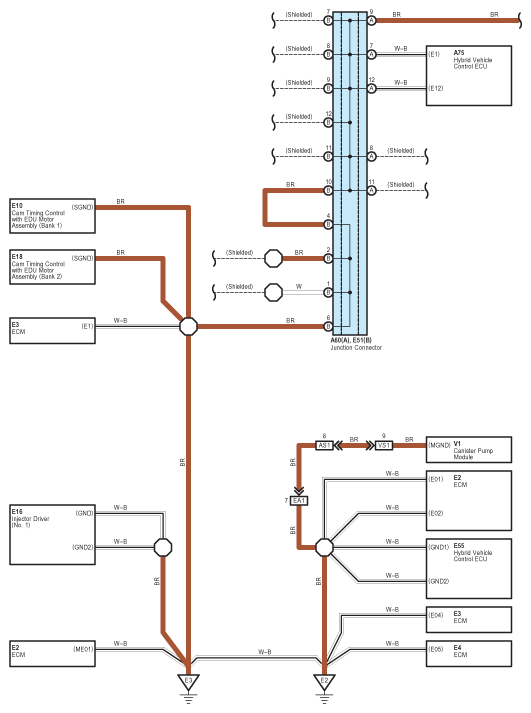

Fig 5: Ground Point - Circuit Diagram (5 Of 15)

G07566370

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

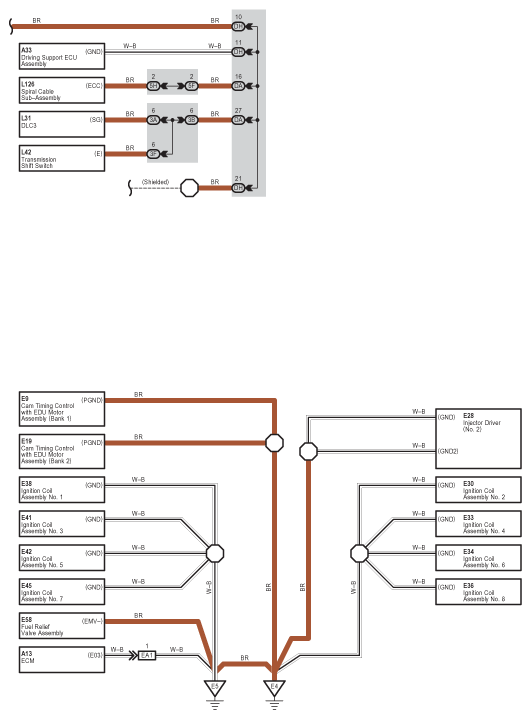

Fig 6: Ground Point - Circuit Diagram (6 Of 15)

G07566371

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

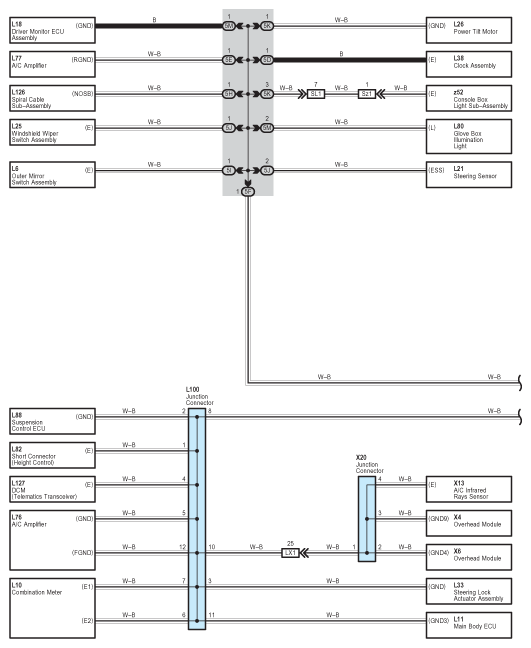

Fig 7: Ground Point - Circuit Diagram (7 Of 15)

G07566372

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

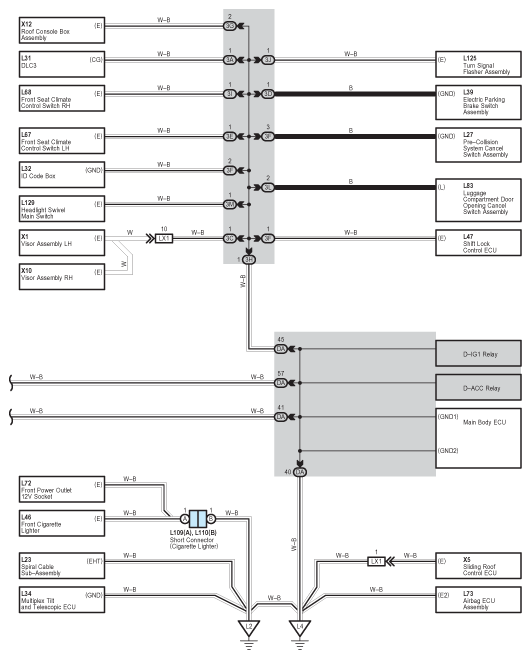

Fig 8: Ground Point - Circuit Diagram (8 Of 15)

G07566373

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

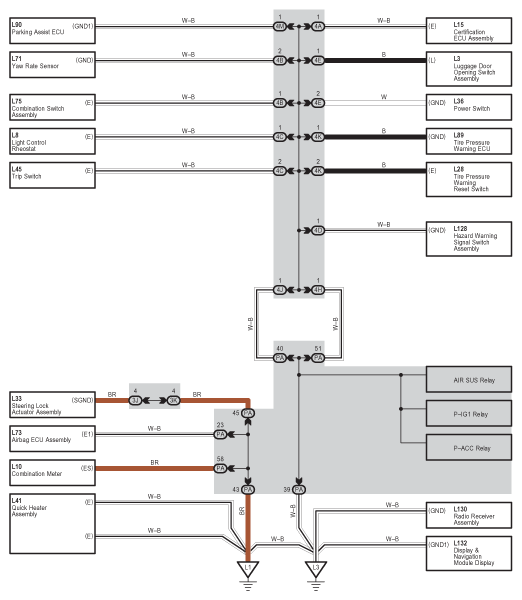

Fig 9: Ground Point - Circuit Diagram (9 Of 15)

G07566374

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

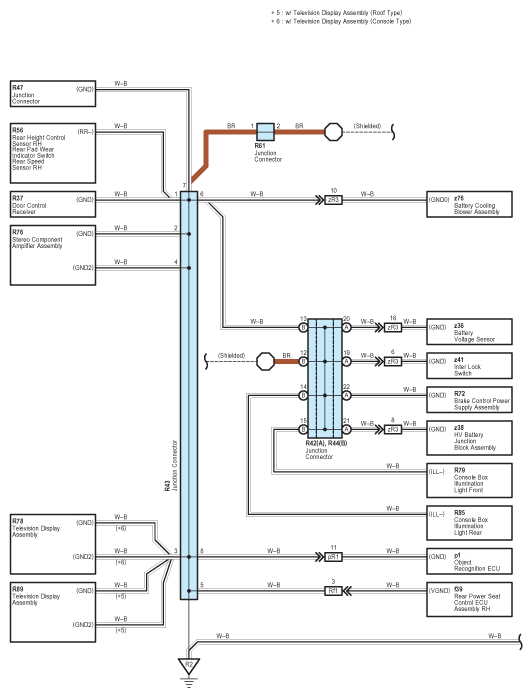

Fig 10: Ground Point - Circuit Diagram (10 Of 15)

G07566375

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

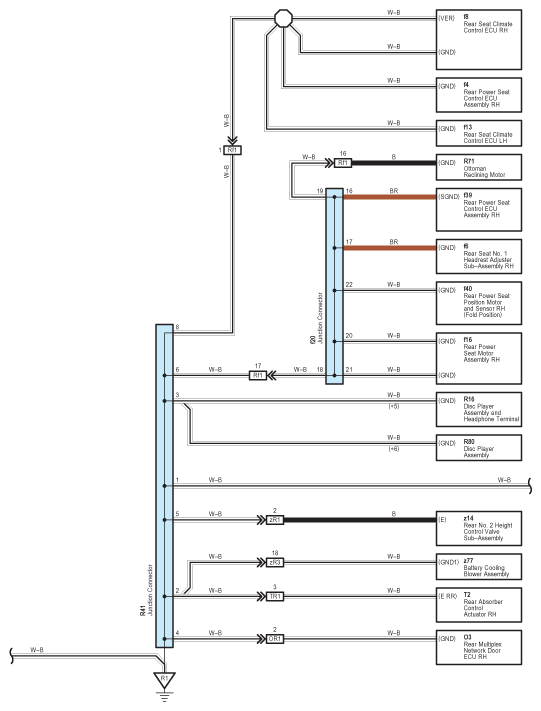

Fig 11: Ground Point - Circuit Diagram (11 Of 15)

G07566376

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

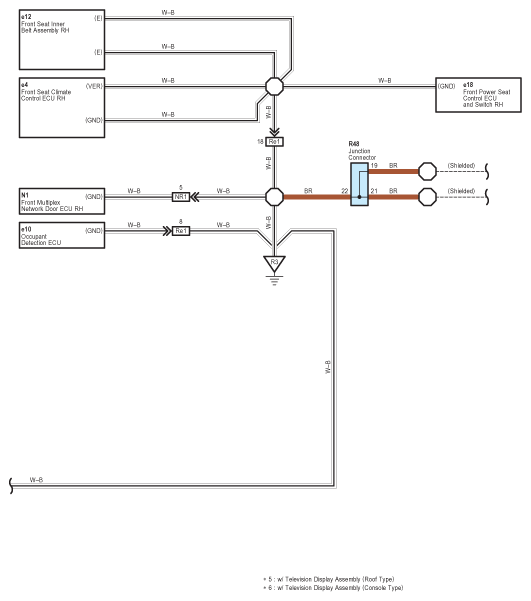

Fig 12: Ground Point - Circuit Diagram (12 Of 15)

G07566377

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

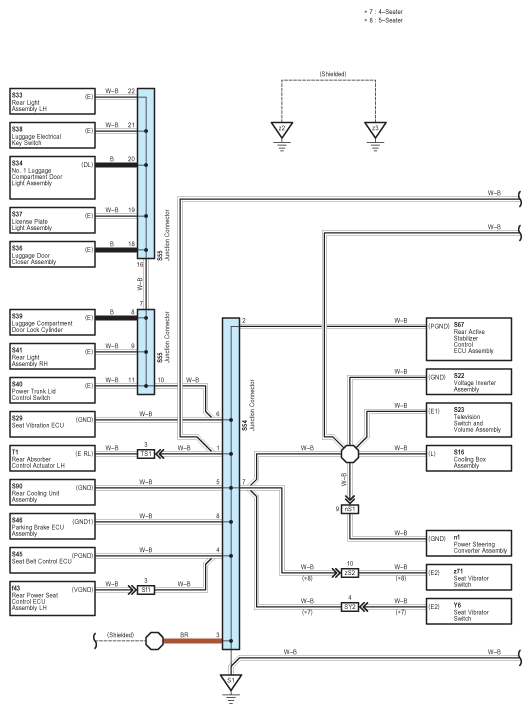

Fig 13: Ground Point - Circuit Diagram (13 Of 15)

G07566378

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

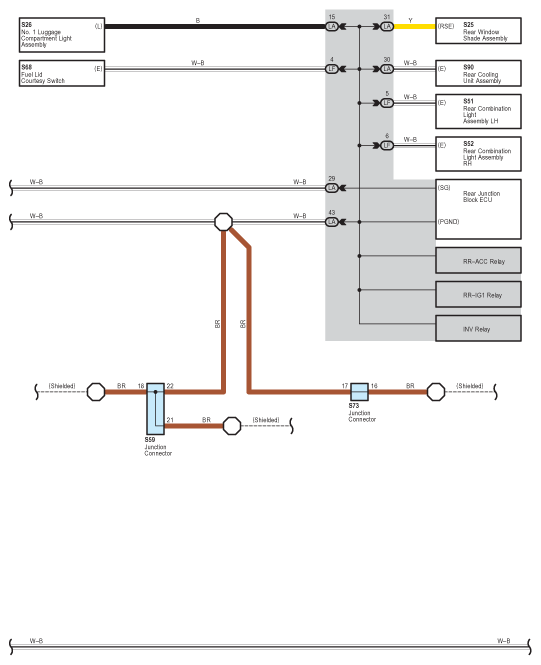

Fig 14: Ground Point - Circuit Diagram (14 Of 15)

G07566379

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

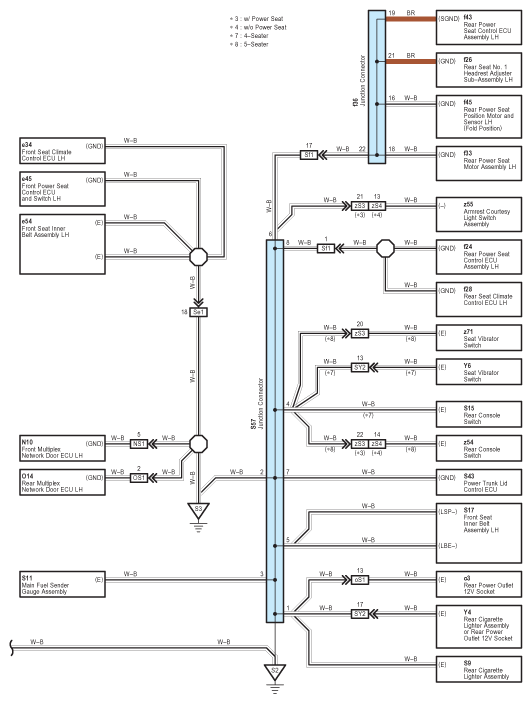

Fig 15: Ground Point - Circuit Diagram (15 Of 15)

G07566380

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
