Toe Control Link: Components: Illustration

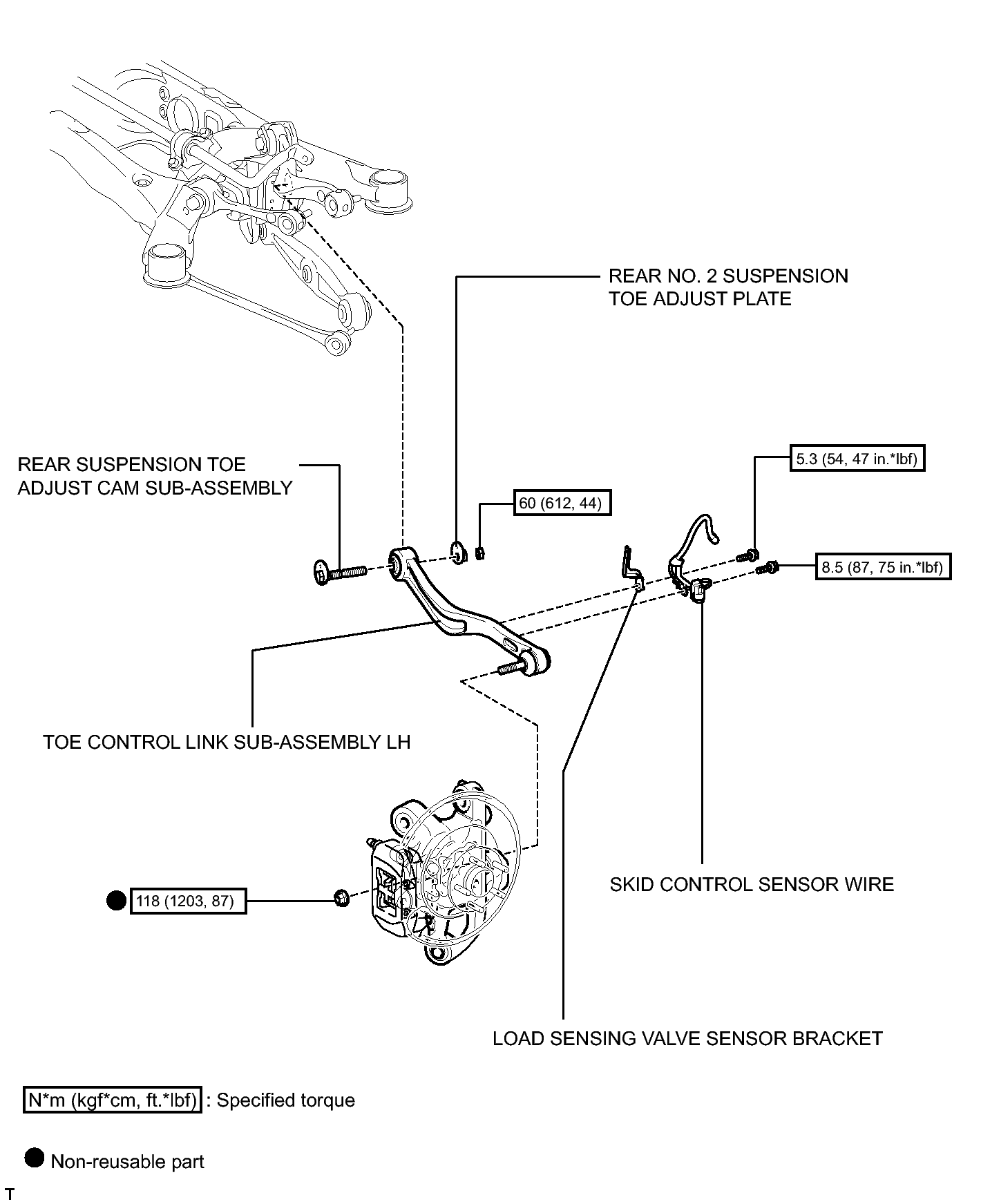

Fig 1: Identifying Toe Control Link Replacement Components With Torque Specifications
GTY123048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
