Memory Positioning Switch: Testing and Inspection

SEAT: SEAT MEMORY SWITCH: INSPECTION

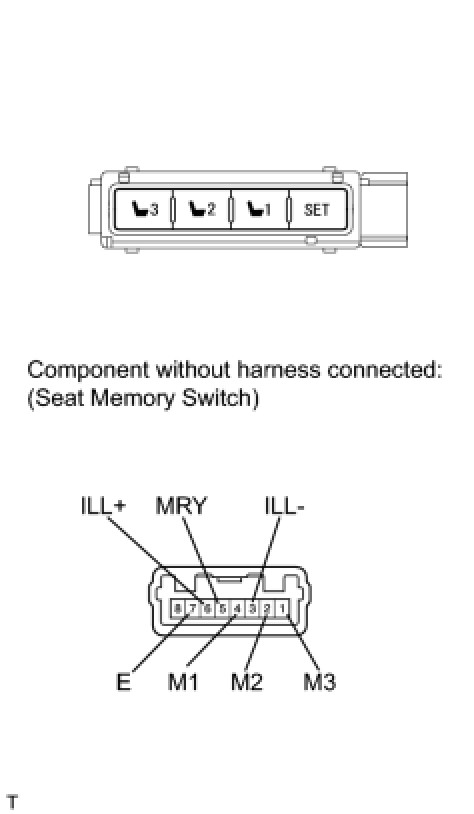

1. INSPECT SEAT MEMORY SWITCH





(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the seat memory switch.

(b) Apply battery voltage to the switch connector, and check that the seat memory switch illuminates.

OK:





If the result is not as specified, replace the seat memory switch.
