Installation

HEATING / AIR CONDITIONING: AIR CONDITIONING AMPLIFIER: INSTALLATION

1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY

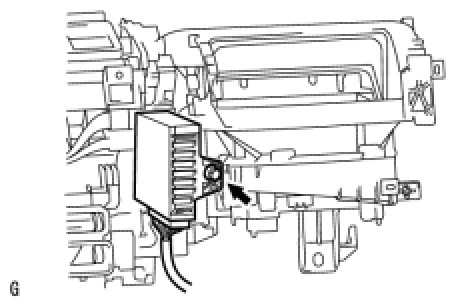

(a) Install the amplifier with the screw.

(b) Connect the connector.

2. INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL Installation

3. INSTALL INSTRUMENT PANEL BOX DOOR KNOB Installation

4. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY Installation

5. INSTALL COWL SIDE TRIM BOARD RH Installation

6. INSTALL FRONT DOOR SCUFF PLATE RH Installation

7. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

8. INSTALL INNER NO. 1 INSTRUMENT PANEL BRACKET COVER RH Installation

9. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY RH Installation

10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

11. INSTALL ENGINE ROOM SIDE COVER LH Installation

12. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light Check Mode Procedure.
