Engine Control Module: Locations

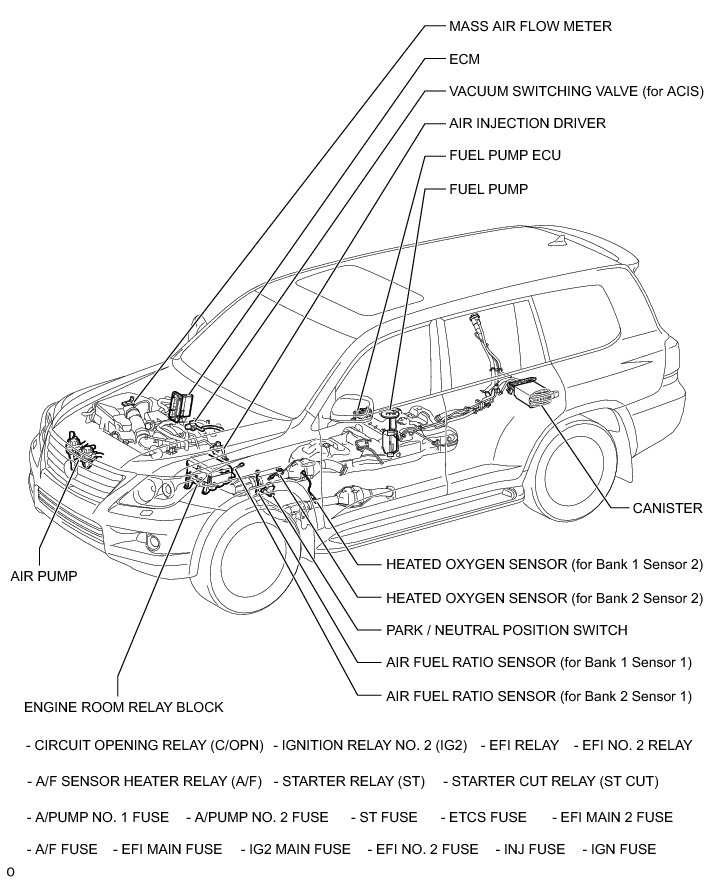

3UR-FE ENGINE CONTROL: SFI SYSTEM: PARTS LOCATION









NETWORKING: CAN COMMUNICATION SYSTEM: PARTS LOCATION

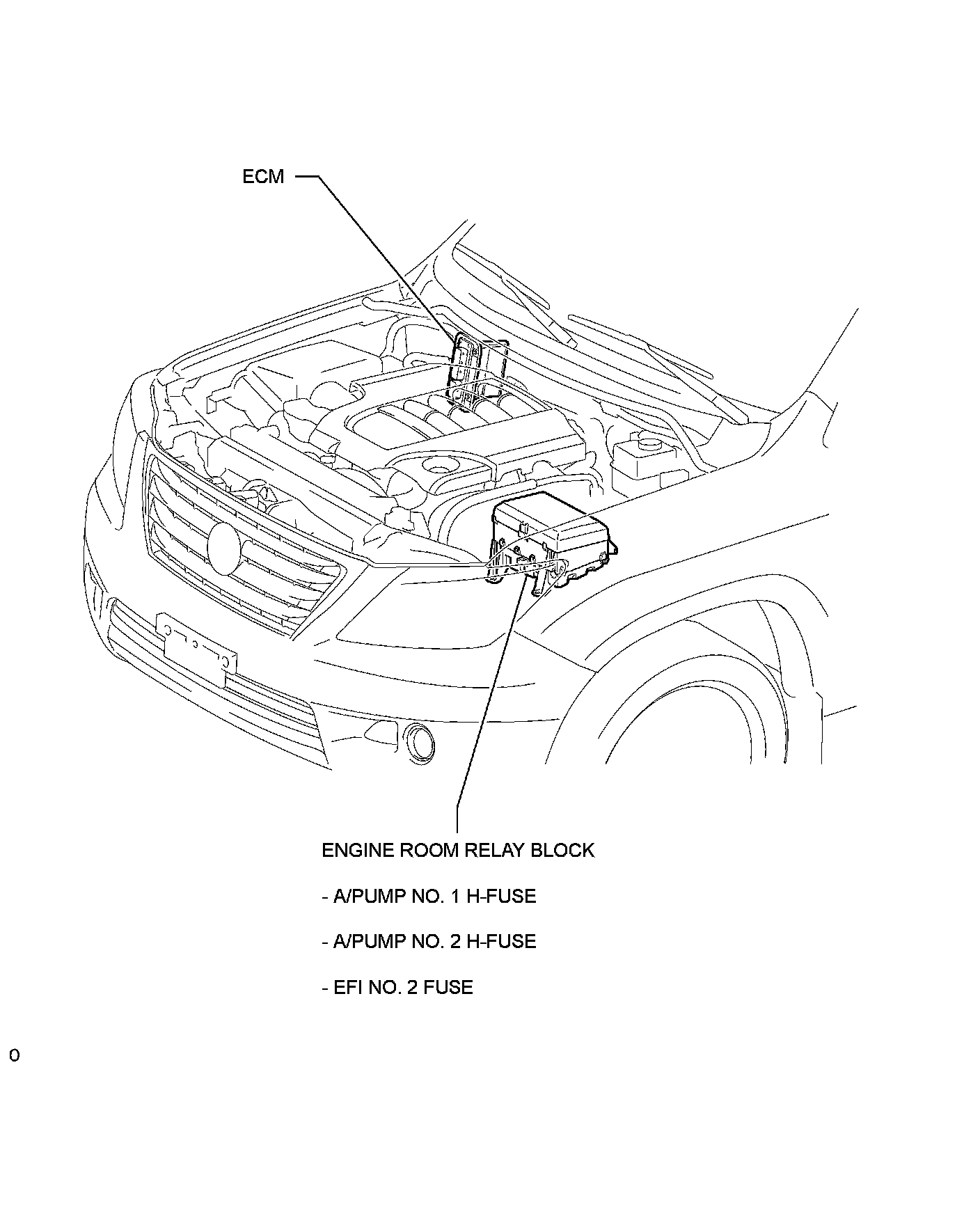

3UR-FE EMISSION CONTROL: EMISSION CONTROL SYSTEM: PARTS LOCATION
