Installation

3UR-FE ENGINE CONTROL: KNOCK SENSOR: INSTALLATION

1. INSTALL KNOCK SENSOR

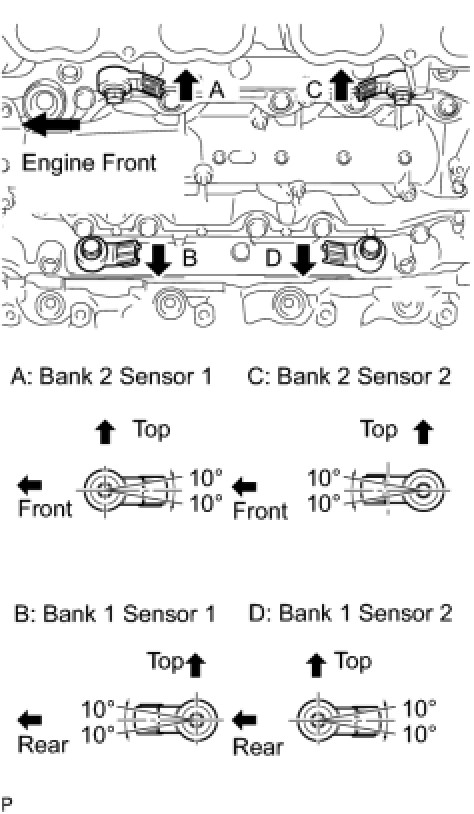

(a) Install the 4 sensors with the 4 bolts so that the sensors are angled as shown in the illustration.

Torque : 20 Nm (204 kgf-cm, 15 ft-lbf)

NOTICE:
The acceptable installation angle of the sensor is between 10° upward and downward from the horizontal position.

(b) Connect the 4 sensor connectors.

2. INSTALL NO. 1 ENGINE COVER Installation

3. INSTALL NO. 2 ENGINE COVER Installation

4. INSTALL INTAKE MANIFOLD

(a) Install the intake manifold Installation.
