Removal

3UR-FE ENGINE CONTROL: KNOCK SENSOR: REMOVAL

1. REMOVE INTAKE MANIFOLD

(a) Remove the intake manifold Removal.

2. REMOVE NO. 2 ENGINE COVER Removal

3. REMOVE NO. 1 ENGINE COVER Removal

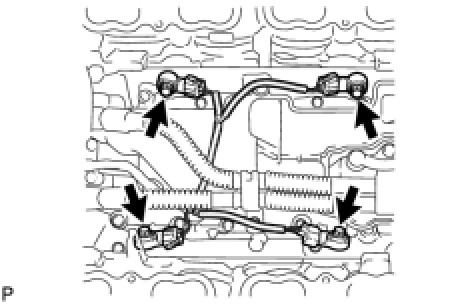

4. REMOVE KNOCK SENSOR





(a) Disconnect the 4 knock sensor connectors.

(b) Remove the 4 bolts and 4 knock sensors.
