Torque Specifications





SPECIFICATIONS: AXLE AND DIFFERENTIAL: TORQUE SPECIFICATIONS

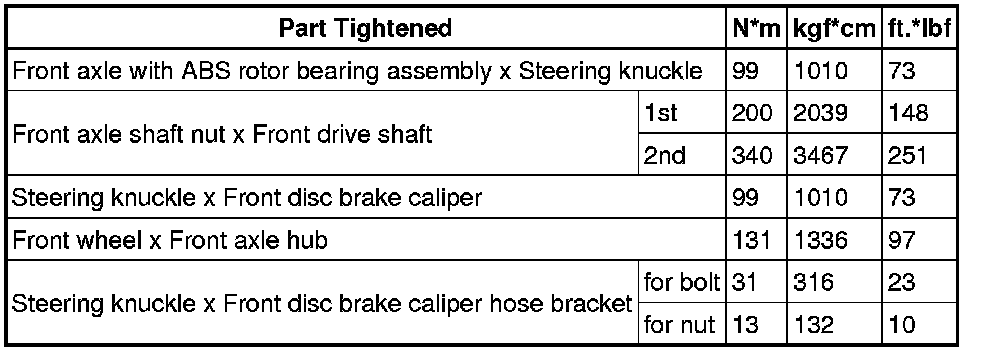

Front Axle Hub

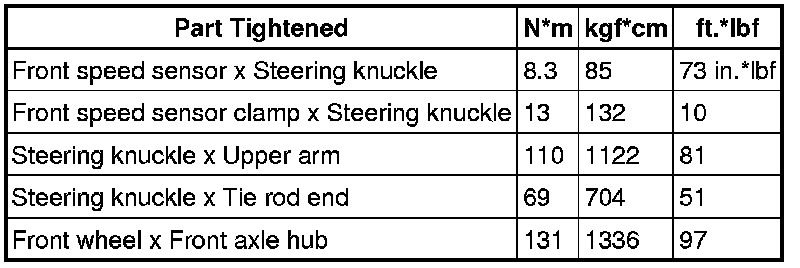

Steering Knuckle





Rear Axle Shaft





( ): For use without union nut wrench.

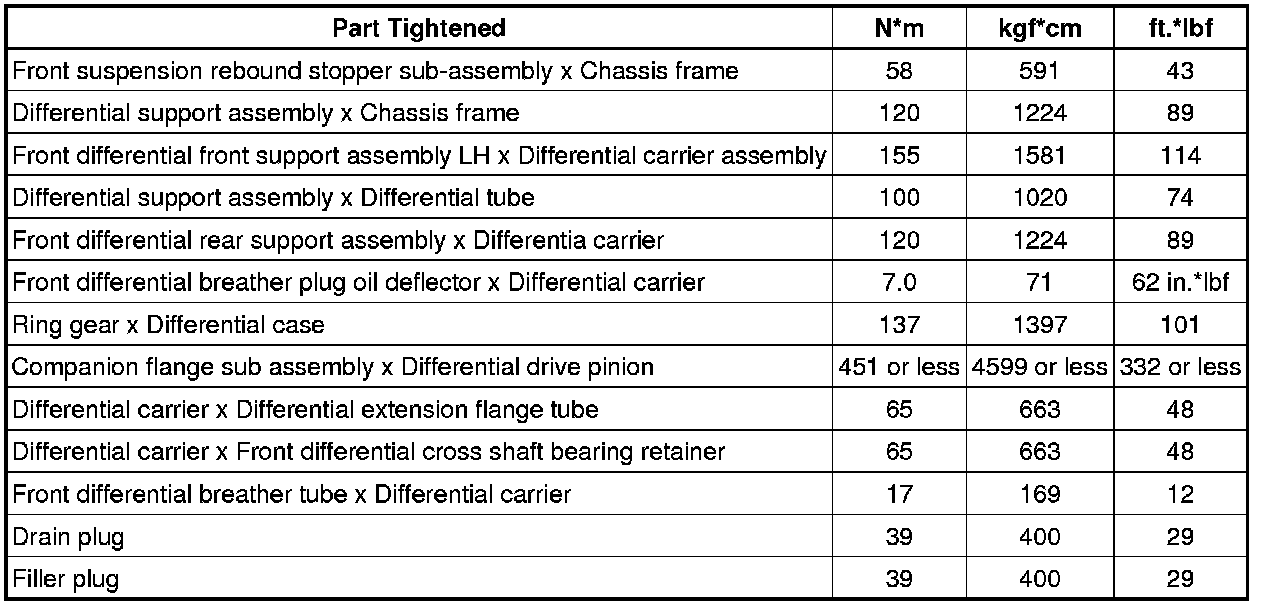

Front Differential

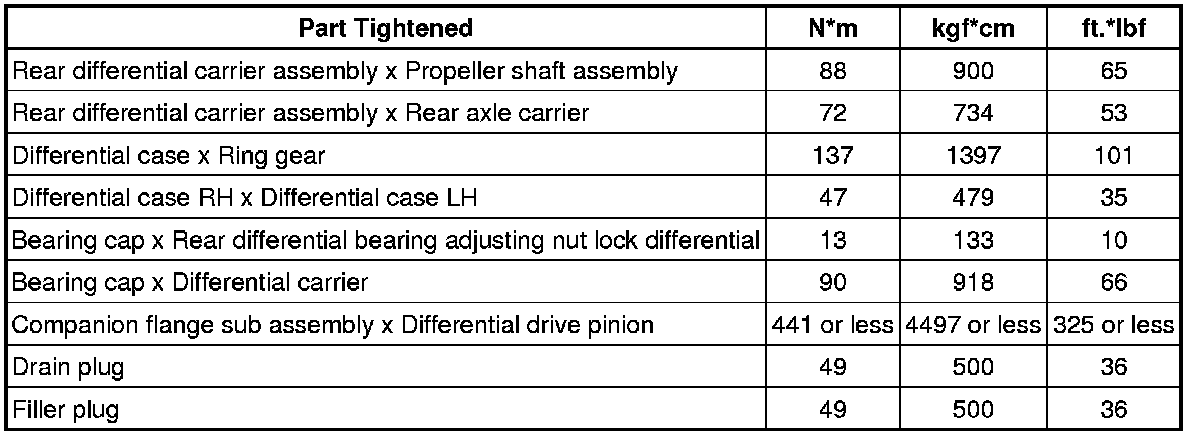

Rear Differential
