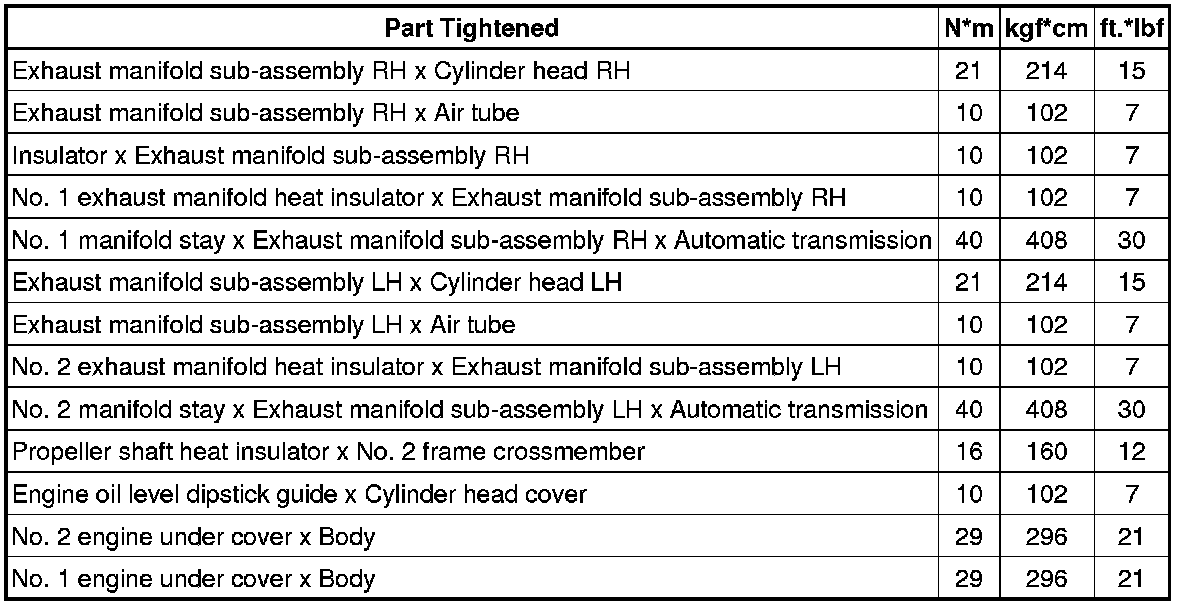

Torque Specifications





SPECIFICATIONS: 3UR-FE INTAKE / EXHAUST: TORQUE SPECIFICATIONS

Intake Manifold





Exhaust Manifold





Exhaust Pipe
