Parts Location: Illustration

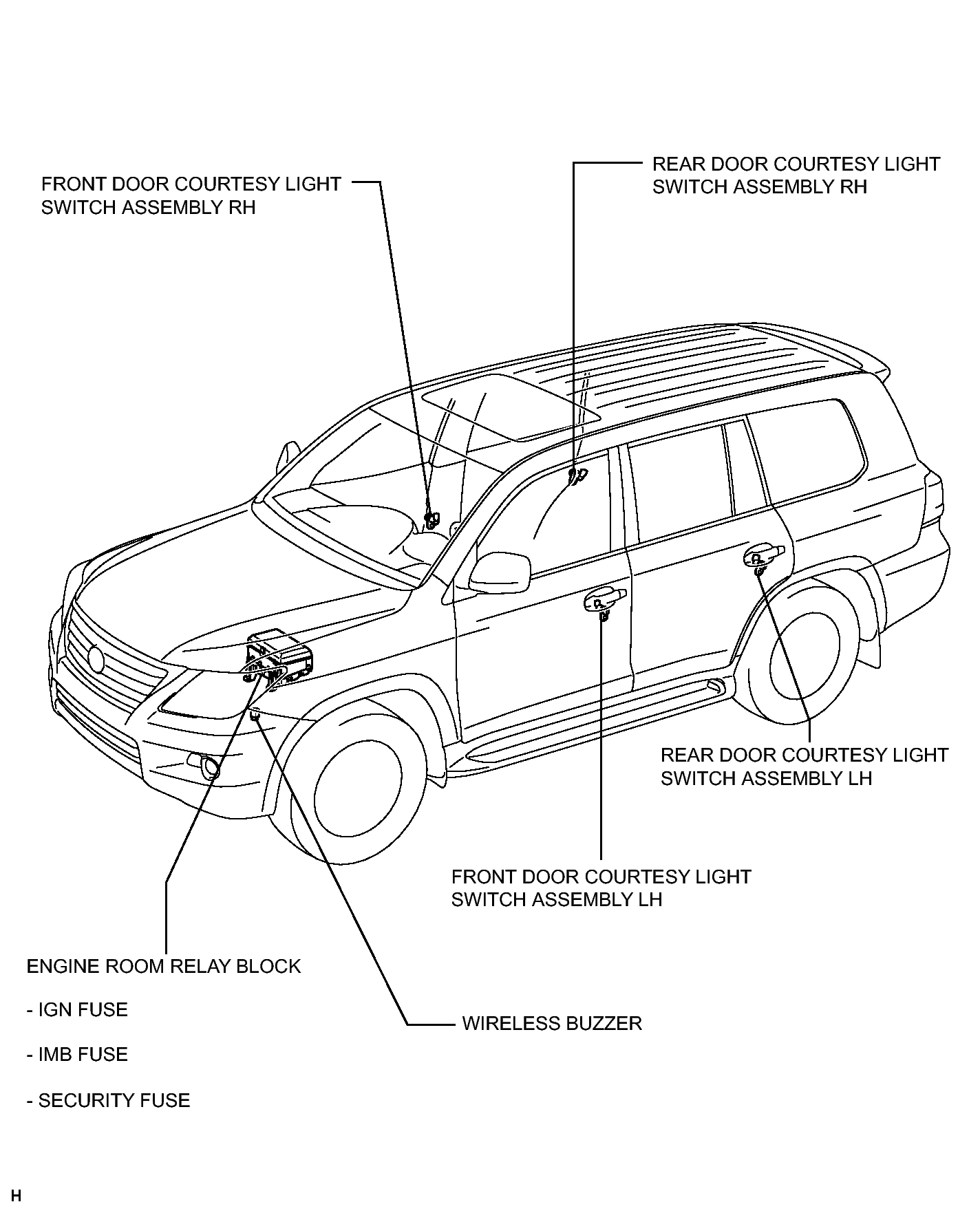

Fig 1: Identifying Smart Access System With Push-Button Start Components Location - For Entry Function (1 Of 6)
GTY115180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

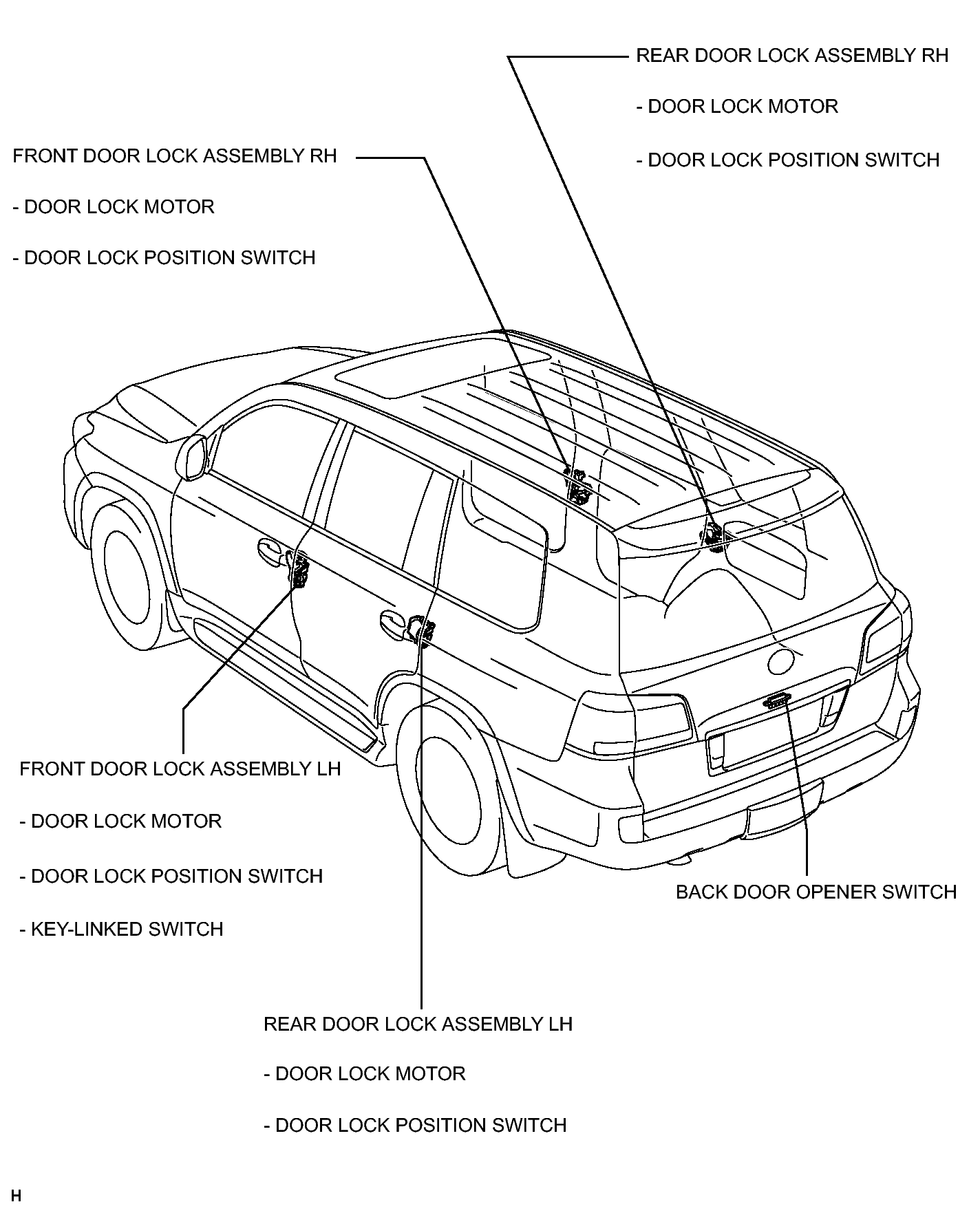

Fig 1: Identifying Smart Access System With Push-Button Start Components Location - For Entry Function (2 Of 6)
GTY115179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

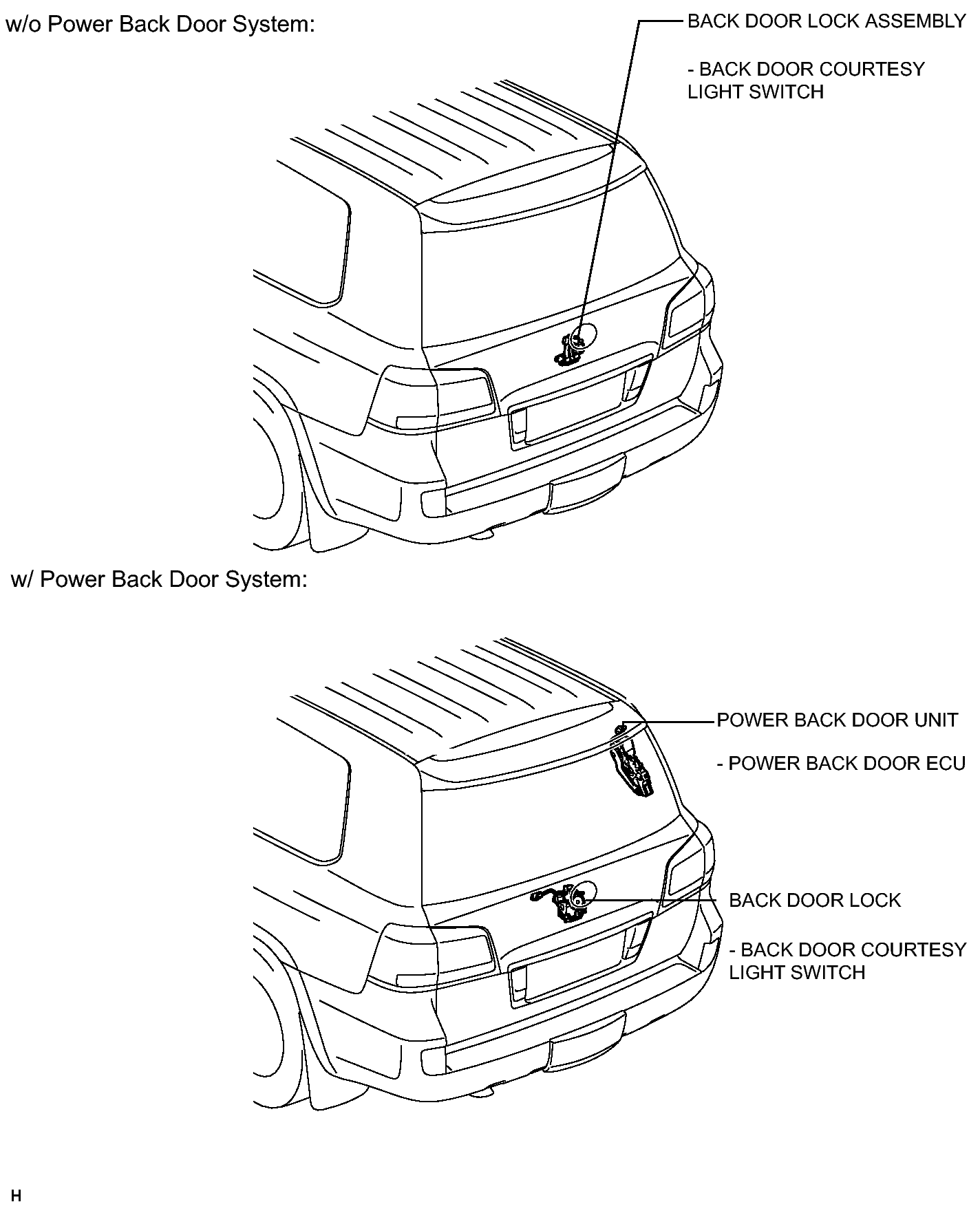

Fig 1: Identifying Smart Access System With Push-Button Start Components Location - For Entry Function (3 Of 6)
GTY114838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

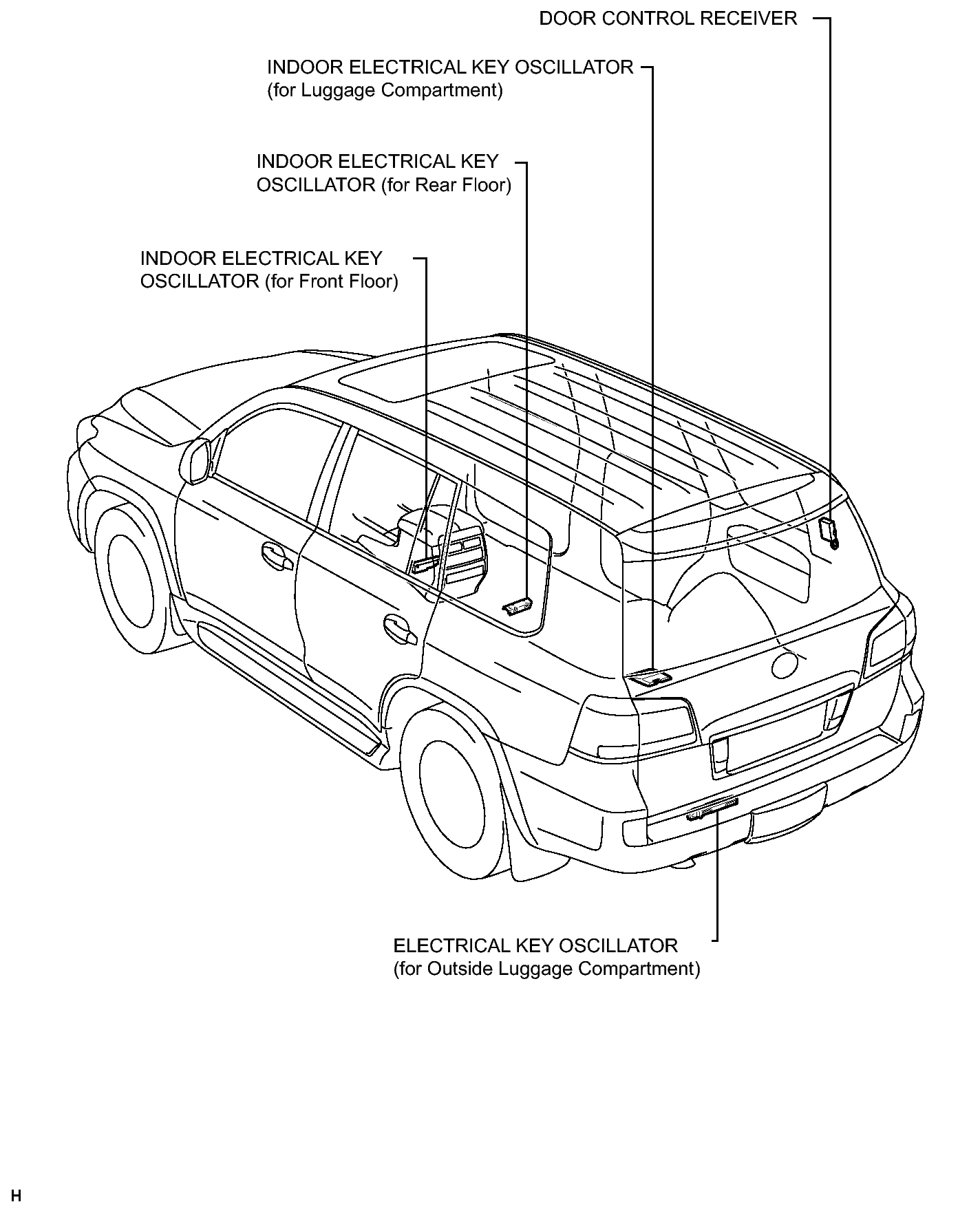

Fig 1: Identifying Smart Access System With Push-Button Start Components Location - For Entry Function (4 Of 6)
GTY115174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

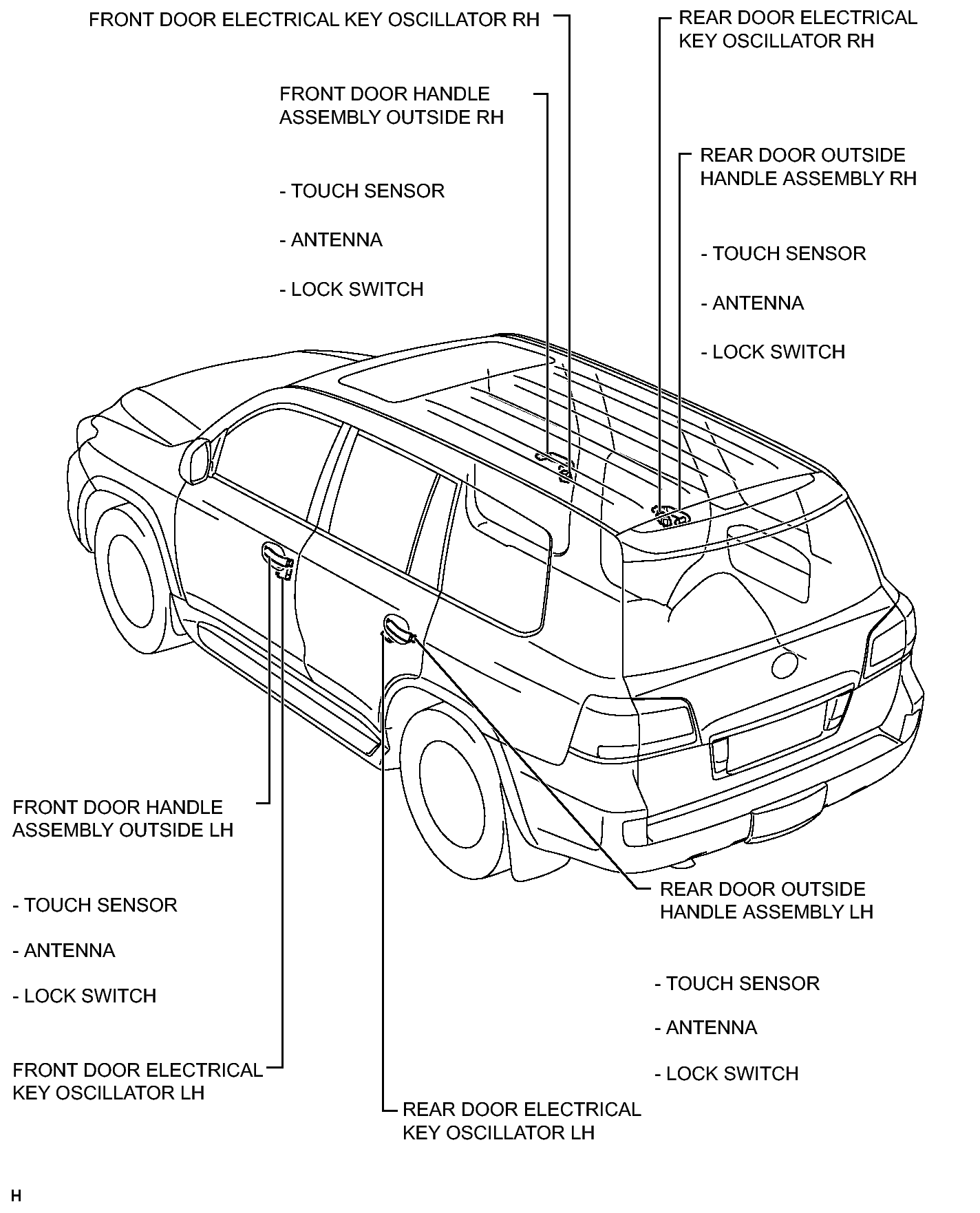

Fig 1: Identifying Smart Access System With Push-Button Start Components Location - For Entry Function (5 Of 6)
GTY115175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

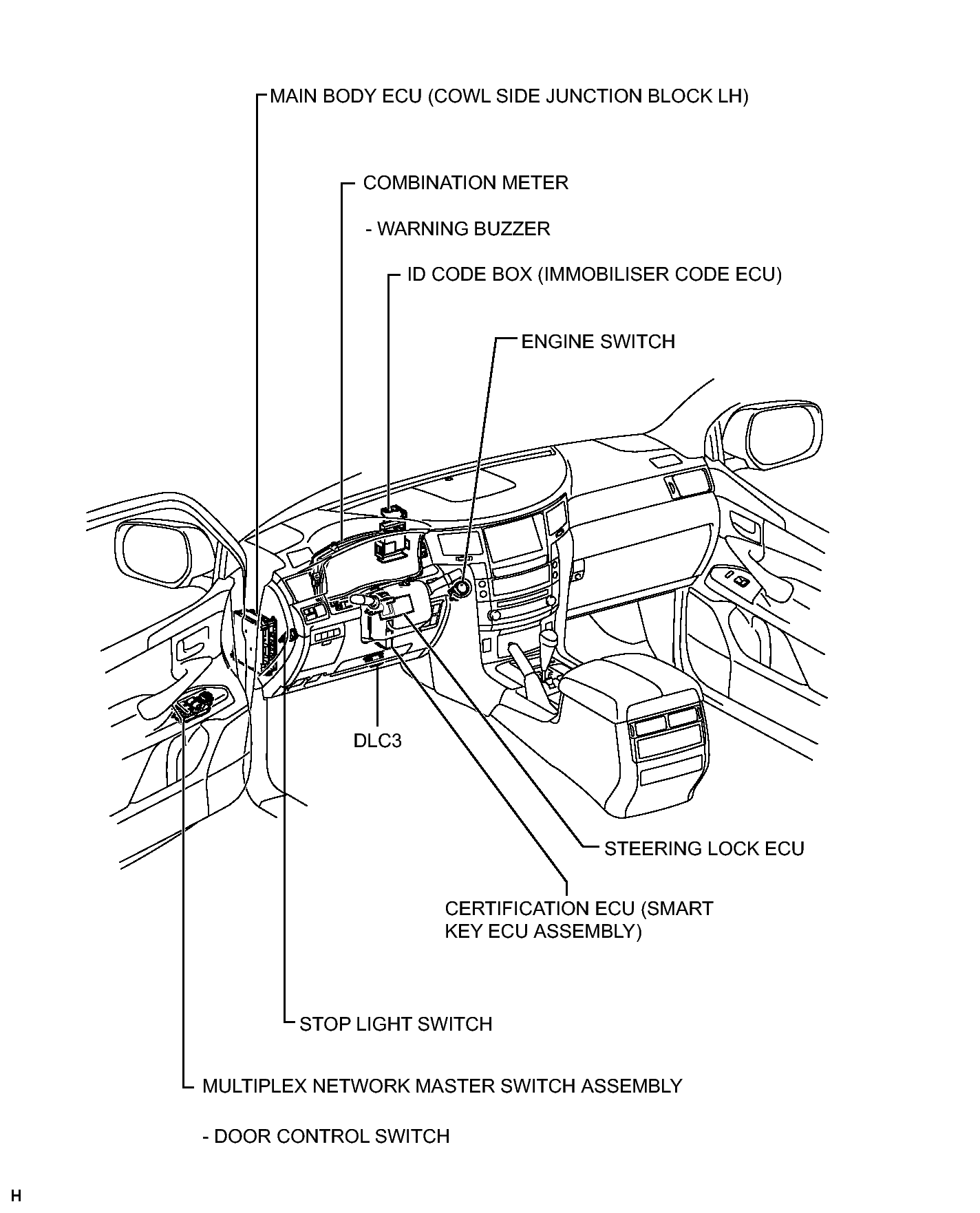

Fig 1: Identifying Smart Access System With Push-Button Start Components Location - For Entry Function (6 Of 6)
GTY115177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
